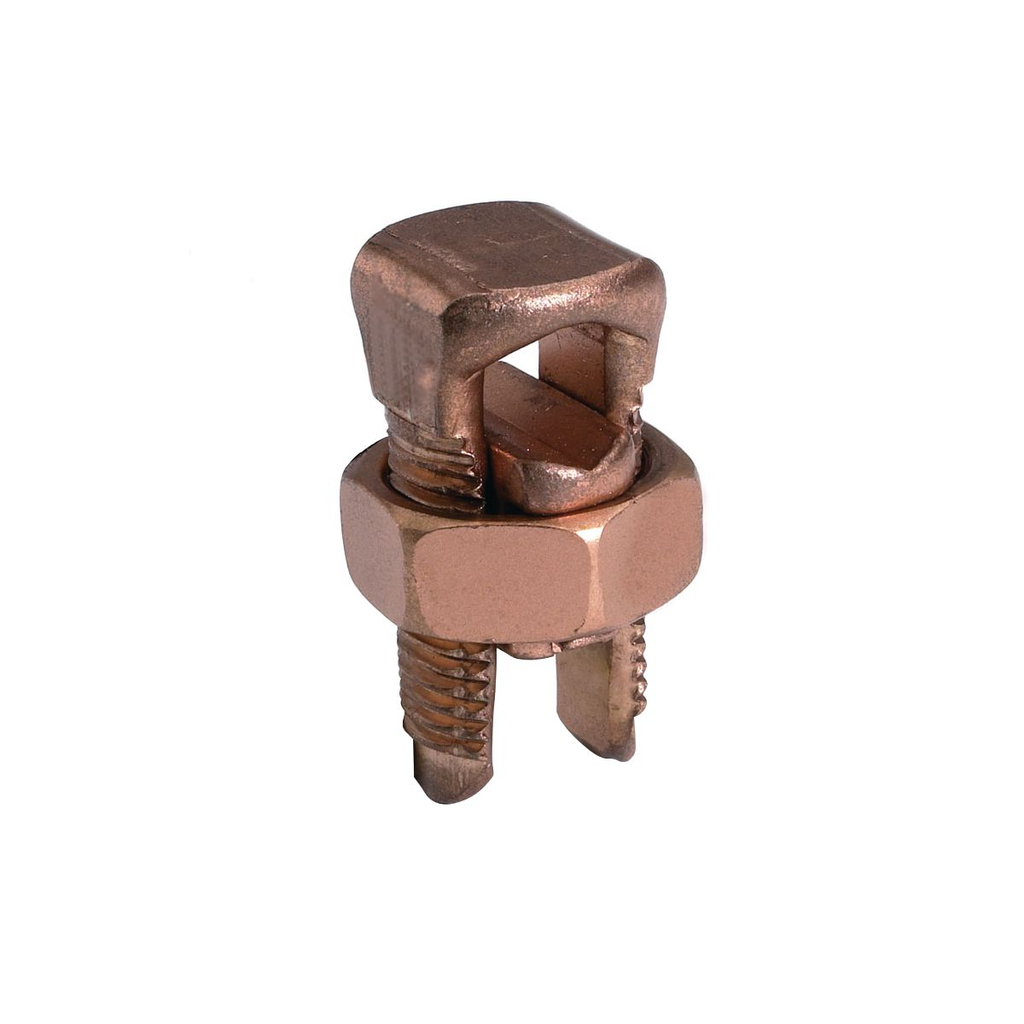

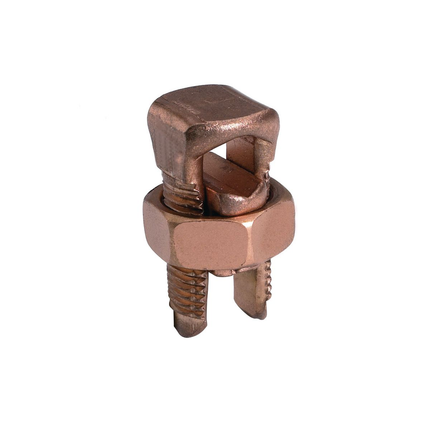

Copper Split Bolt, Cu: 1 AWG-3/0 AWG (Str) (Run & Tap) - Split Bolt Connector

This copper split bolt connector is designed for secure electrical connections in direct burial cable applications. Manufactured by Burndy, it is suitable for run and tap conductors ranging from 1 AWG to 3/0 AWG stranded copper wire. The connector provides a reliable solution for electrical distributors and switchgear suppliers requiring durable and corrosion-resistant wire and cable connectors.

Specifications

• Application: For Direct Burial Cables
• Material: Copper
• Connection Type: Split Bolt
• Width: 1.56 in
• Product Weight: 0.2160 lb
• Country of Origin: United States
• Made in USA: Yes
• Manufacturer: Burndy
• Manufacturer Part #: KS27
• UL Listed: Yes
• UL Listed Direct Burial: Yes
• Industry Standards: UL 486A, UL 486B
• Installation Torque Recommended: 500 in-lb
• Conductor Range (Copper Stranded Run): 1 AWG - 3/0 AWG
• Conductor Range (Copper Stranded Tap): 1 STR - 3/0 STR

Features

• UL467 Listed for direct burial applications in earth or concrete
• Compact, high-strength copper alloy with free-running threads
• Easy to grip wrench flats for installation
• Highly resistant to cracking and corrosion
