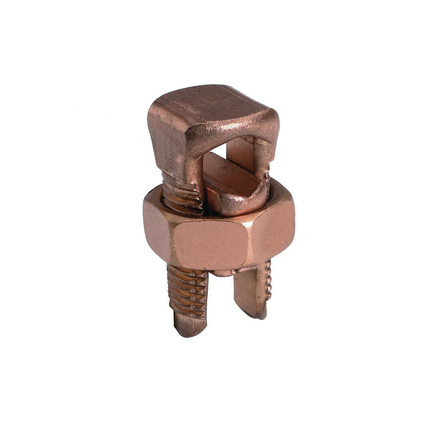

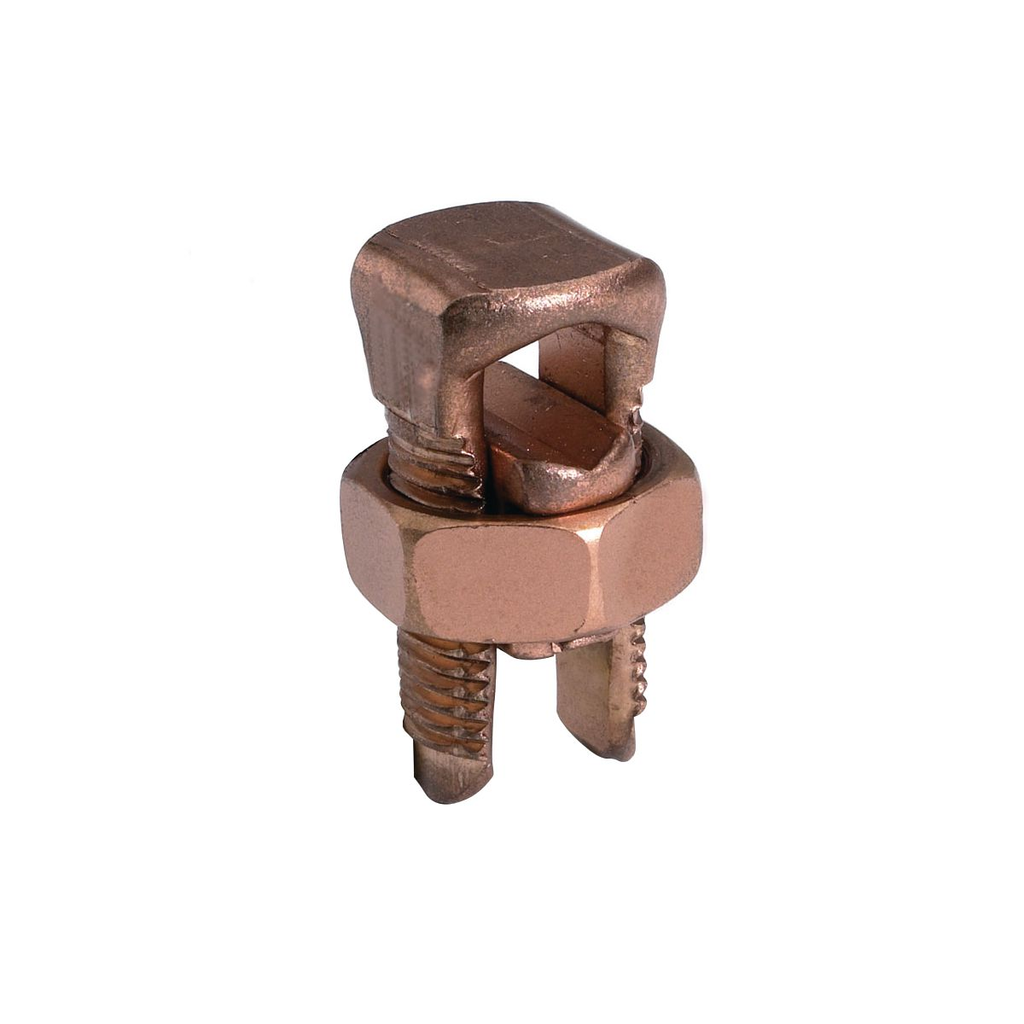

Copper Split Bolt Connectors for Electrical Wire and Cable Connections

The Copper Split Bolt Connectors by Burndy are designed for secure electrical connections in direct burial applications in earth or concrete. These connectors are suitable for copper conductors ranging from 8 AWG stranded to 6 AWG solid wire in run and tap configurations. Ideal for electrical distributors and switchgear suppliers, they provide reliable performance in underground and harsh environments.

Specifications

• Application: For Direct Burial Applications In Earth Or Concrete, Copper
• UL Listed: Yes (UL467 Listed for direct burial)
• EU RoHS Indicator: Yes
• Certification - CSA Approved: No
• Certification - ETL: No
• Material: Copper Alloy
• Length: 1.50 in
• Width: 0.84 in
• Product Weight: 0.1000 lb
• Manufacturer Part #: KS22
• Country of Origin: United States
• Made in USA: Yes

Features

• UL467 Listed for direct burial applications in earth or concrete
• Compact, high-strength copper alloy construction
• Free-running threads with easy-to-grip wrench flats for secure installation
• Highly resistant to cracking and corrosion
