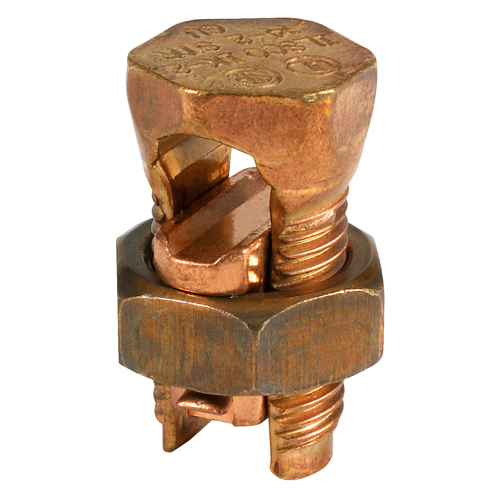

Copper Split Bolt, Conductor Range for Equal Main & Tap 500-250, UL, CSA – Electrical Connector

This Copper Split Bolt is designed for mechanical connection of solid copper conductors, suitable for equal main and tap conductor ranges from 500 to 250 kcmil. It is intended for use in electrical distribution and wire and cable applications, providing reliable and secure connections. The product is UL 467 listed and CSA certified, making it compliant with industry safety standards. It is suitable for direct burial installations and supports use by electrical distributors and switchgear suppliers requiring robust copper conductor connections.

Specifications

• Manufacturer Part #: IK-500
• Material: Copper
• Color: Copper
• Conductor Material: Copper
• Conductor Type: Solid
• Connection Type: Mechanical
• Conductor Range for Equal Main & Tap (Stranded): 500 kcmil - 250 kcmil
• Conductor Range for Minimum Tap with Maximum Run: 8 Solid
• Number of Conductors: 1
• Number of Poles: 1
• Direct Burial: Yes
• Dimensions (L x W x H): 3 in x 2.09 in x 1.81 in
• Weight: 0.9760 lb
• Drive Type Main: External Hex
• Drive Size Main: 1-13/16 in
• Voltage Rating: 35 kV
• Temperature Rating: 90°C
• UL / CULUS Specification: UL 467 Listed
• CSA Standard: C22.2 No. 65

Features

• UL and CSA certified for safety and compliance
• Suitable for direct burial applications
• Mechanical connection ensures secure conductor bonding
• Compatible with solid copper conductors
• Hex drive for easy installation and torque control
• Supports conductor ranges for equal main and tap connections
