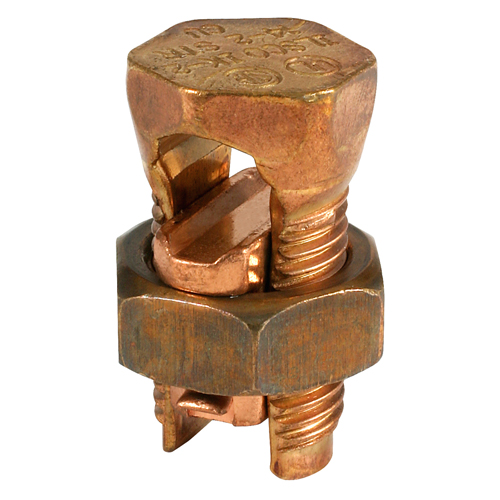

Copper Split Bolt, Conductor Range for Equal Main & Tap 2-6 Sol, UL, CSA – Electrical Connector

This Copper Split Bolt is designed for mechanical connection of copper conductors, suitable for electrical distributors and switchgear suppliers requiring reliable wire and cable connections. It supports conductor ranges for equal main and tap solid copper wires from 2 to 6 AWG, ensuring secure and durable electrical connections in lighting solutions and other electrical distribution applications. The connector is UL 467 Listed and CSA certified, rated for direct burial and 35 kV voltage applications, making it appropriate for both indoor and outdoor installations.

Specifications

• Manufacturer Part #: IK-2
• Material: Copper
• Color: Copper
• Connection Type: Mechanical
• Conductor Type: Stranded
• Conductor Range for Equal Run & Tap Solid: 2 Sol - 6 Sol
• Number of Conductors: 1
• Direct Burial: Yes
• Voltage Rating: 35 kV
• Temperature Rating: 90°C
• Dimensions (L x W x H): 1.32 in x 0.94 in x 0.81 in
• Drive Type: External Hex
• Drive Size: 13/16 in
• Wire Diameter Range: 0.162 - 0.292 in
• Weight: 0.106 lb
• UL / CULUS Specification: UL 467 Listed
• CSA Standard: C22.2 No. 65
• CSA File Number: LR-701570
• UPC Code: 783669470109
• NEMA Code: S-588-4

Features

• UL and CSA certified for safety and compliance
• Suitable for direct burial applications
• Mechanical connection ensures secure conductor fastening
• Designed for solid copper conductor ranges with equal main and tap sizes
• External hex drive for easy installation and torque application
• Rated for 35 kV voltage and 90°C operating temperature
• Copper construction provides excellent conductivity and corrosion resistance
