Copper Split Bolt 500
SKU: #305373
Part: #N-500
UPC: 662381020116
Copper Split Bolt 500
SKU: #305373
Part: #N-500
UPC: 662381020116
Total Price: $81.88 per each Sold in increments of 1 each
Description

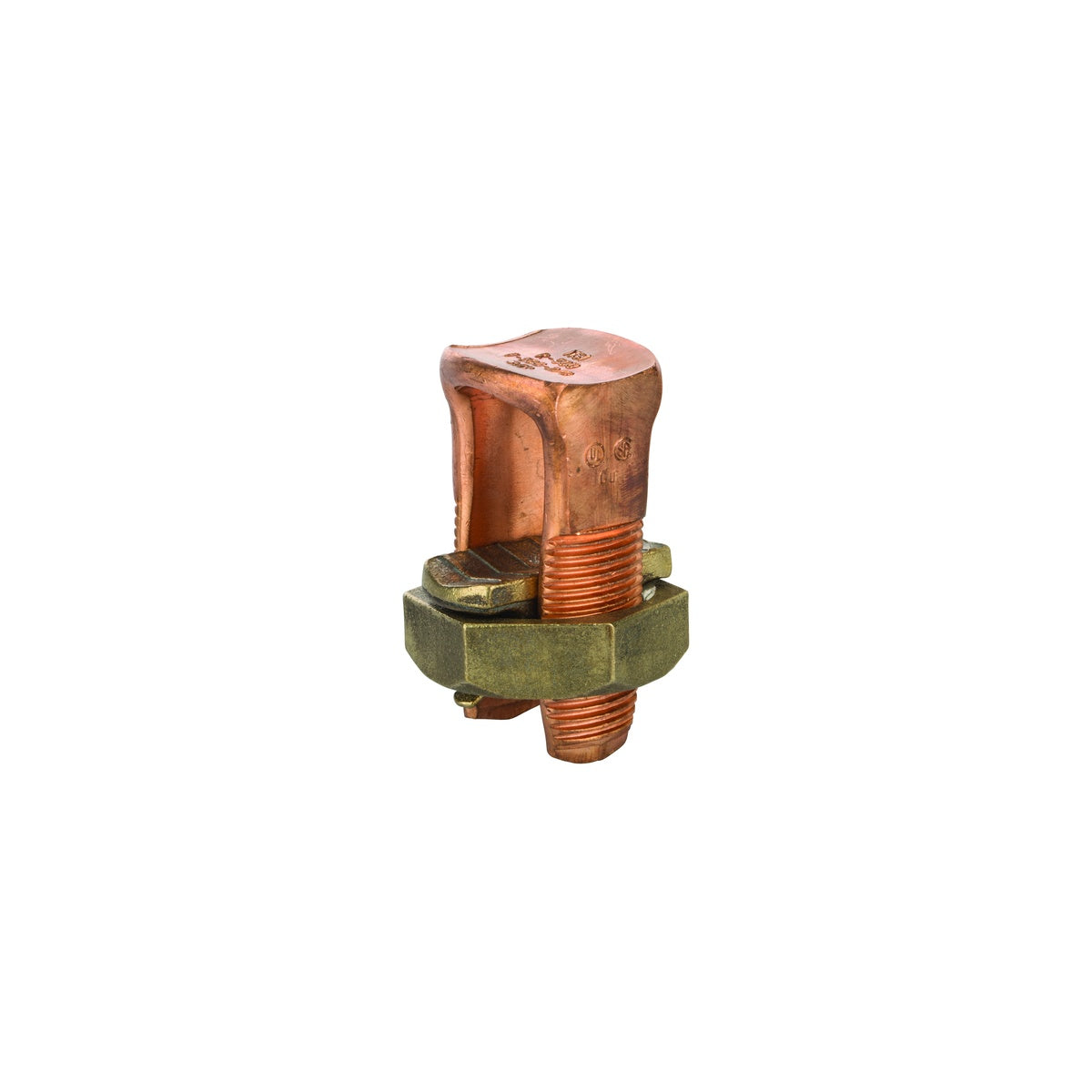

Copper Split Bolt 500 – Copper Split Bolt Connector
The Copper Split Bolt 500 is a high-strength solderless service connector designed for wire termination applications. Manufactured by NSI Industries, this connector is made of high-copper alloy suitable for copper and copperweld wires. It is ideal for electrical distributors and switchgear suppliers requiring reliable and durable connectors for wire and cable splicing.
Specifications
- Material: Copper
- Color: Copper
- Dimensions (L x W x H): 1.338 in x 1.338 in x 2.834 in
- Product Weight: 0.9 lbs
- Manufacturer Part #: N-500
- Country of Origin: India
- Application: Wire Termination
- Maximum Conductor Range: 250 MCM to 500 MCM copper conductors
- Recommended Torque: 825 in-lb
- UL Listings: UL486A Listed Wire Connector, UL486D Listed Direct Bury
Features
- High strength solderless service connector made of high-copper alloy
- Designed for use with copper and copperweld wires
- Type for two maximum wire sizes
