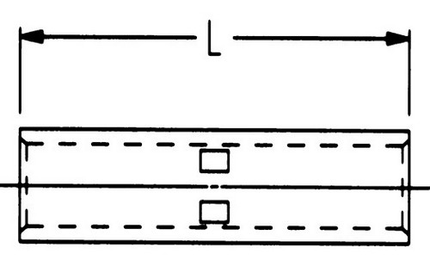

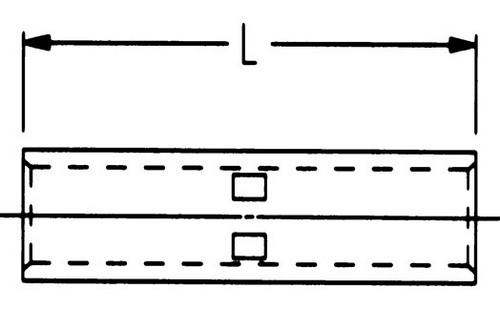

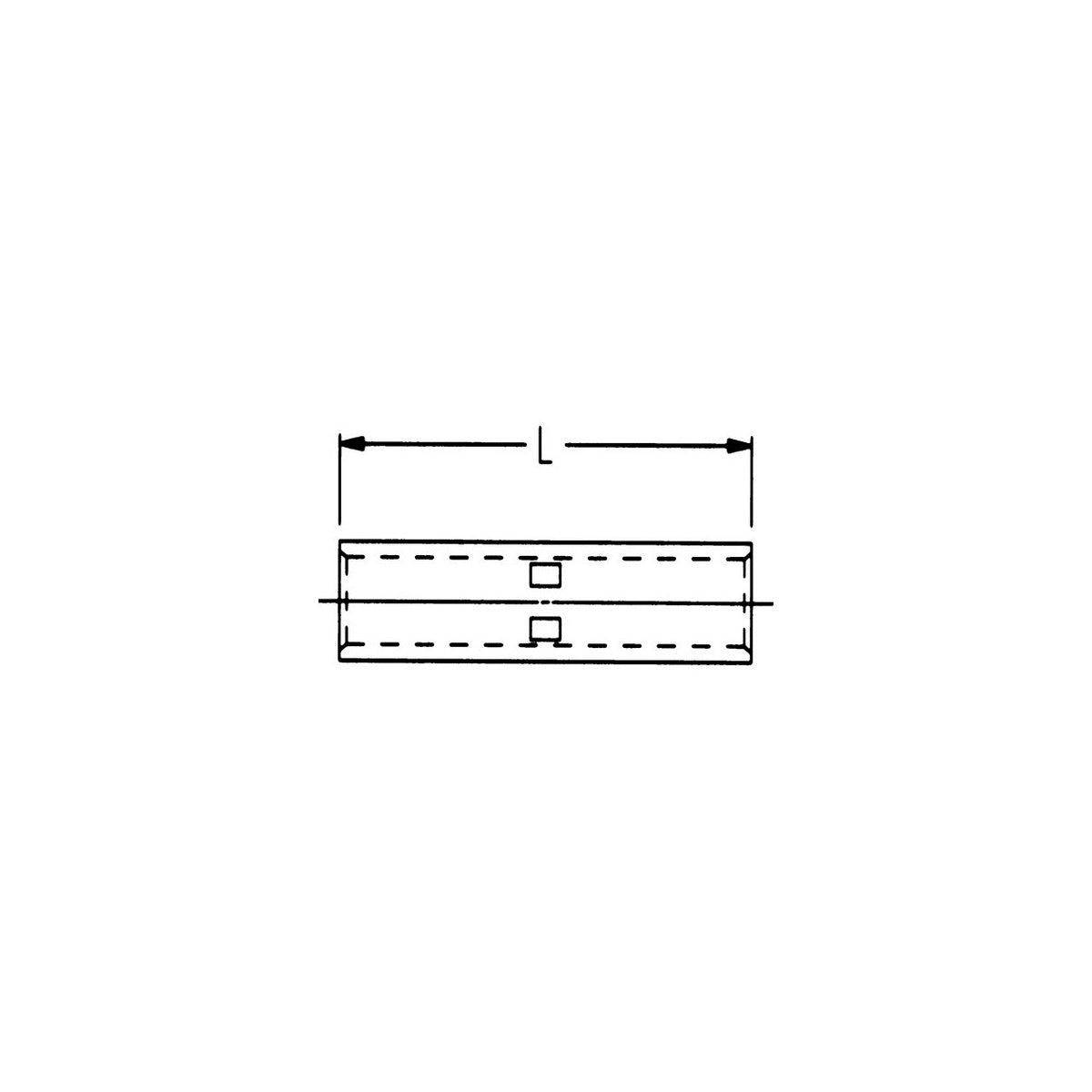

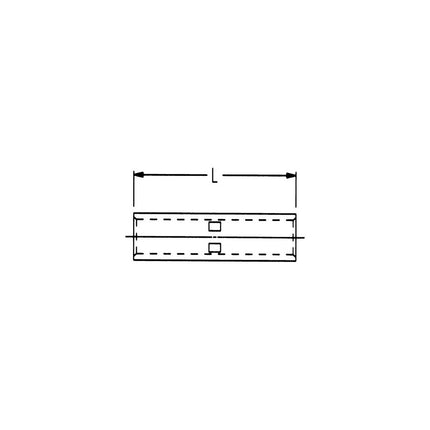

Copper Short Barrel Compression Splices 500 MCM – Electrical Wire and Cable Connector

The Copper Short Barrel Compression Splice 500 MCM is designed for reliable electrical connections in wire and cable installations. Manufactured by Morris Products, this splice is suitable for use by electrical distributors and switchgear suppliers requiring high conductivity and durable compression connectors for large conductor sizes. It is color-coded for easy identification and optimized for use in lighting solutions and other electrical systems.

Specifications

• Material: High Conductivity Seamless Copper Tubing
• Color Coding: Brown
• Inside Diameter: 0.835 inches
• Outside Diameter: 1.063 inches
• Temperature Rating: 90°C
• Voltage Rating: 35 kV
• Amp Rating: To Conductor
• UPC: 601986944366
• Manufacturer Part #: 94436
• Product Weight: 0.4660 lbs

Features

• Manufactured from high strength, high conductivity seamless copper tubing
• Electro-tin plated for enhanced corrosion resistance
• Color coded and marked with die size and crimp marks for easy installation
• UL listed to UL486A standard
• cUL certified and RoHS compliant

Downloads & Links

• Spec Sheet
