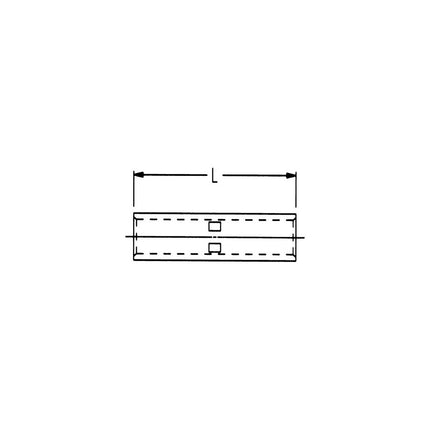

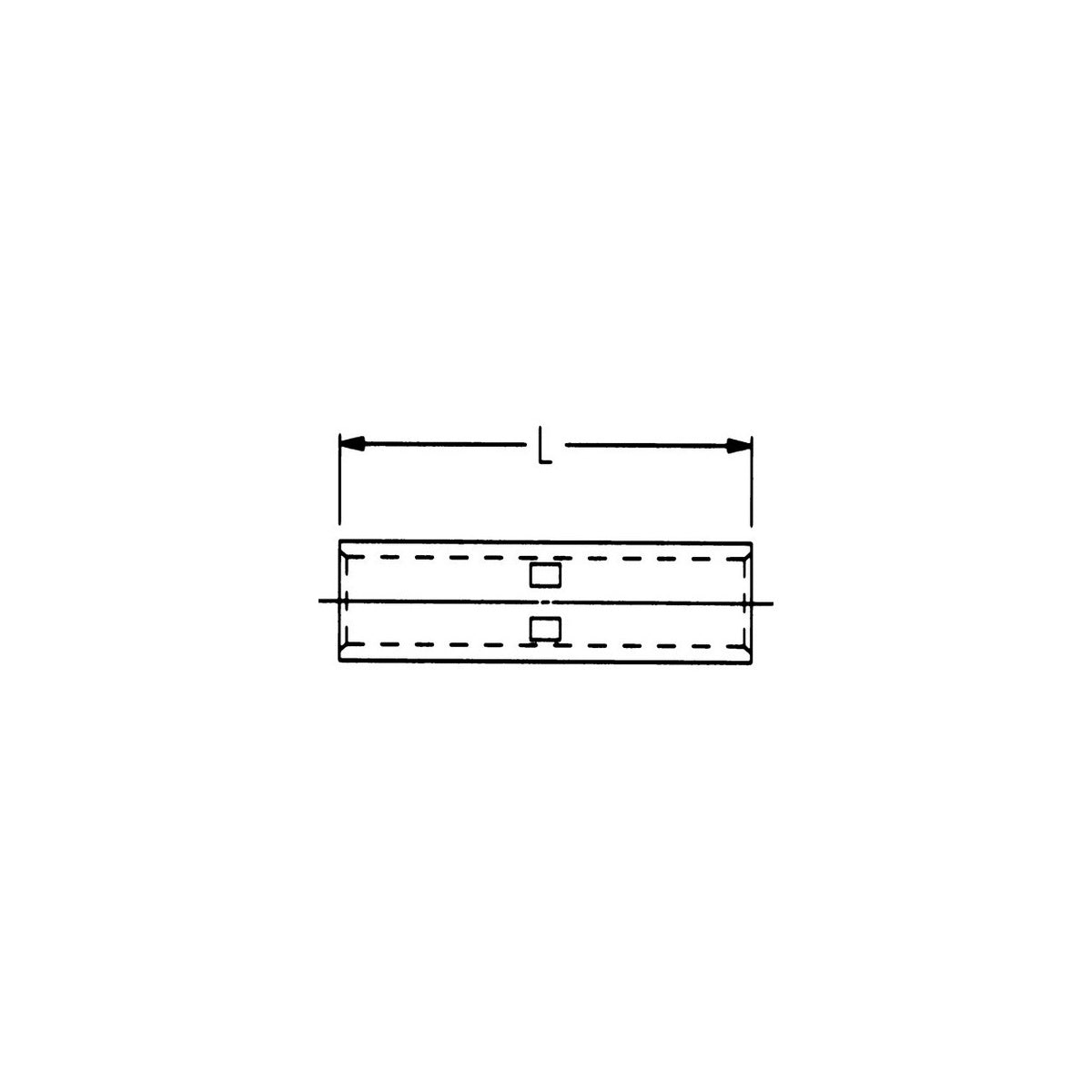

Copper Short Barrel Compression Splices 300 MCM – Electrical Wire and Cable Connector

The Copper Short Barrel Compression Splices 300 MCM by Morris Products are designed for reliable electrical connections in wire and cable applications. Manufactured from high conductivity seamless copper tubing with electro-tin plating, these splices provide durable and efficient conductivity for use by electrical distributors and switchgear suppliers. The product is suitable for wire sizes ranging from #8 stranded through 1000 MCM, making it applicable for a broad range of industrial and commercial electrical installations.

Specifications

• Material: High Conductivity Copper
• Color: White
• Inside Diameter: .658 inches
• Outside Diameter: .813 inches
• Temperature Rating: 90°C
• Voltage Rating: 35 KV
• Wire Size Range: #8 Stranded through 1000 MCM
• Material Treatment: Electro-Tin Plating
• Product Weight: 0.1970 lbs
• Manufacturer Part #: 94430
• UPC: 601986944304

Features

• Manufactured from high strength, high conductivity seamless copper tubing
• Electro-tin plated for enhanced corrosion resistance
• Color coded and marked with die size and crimp marks for easy identification and installation
• UL Listed to UL486A standards
• RoHS compliant
• Suitable for use in lighting solutions and electrical distribution systems
