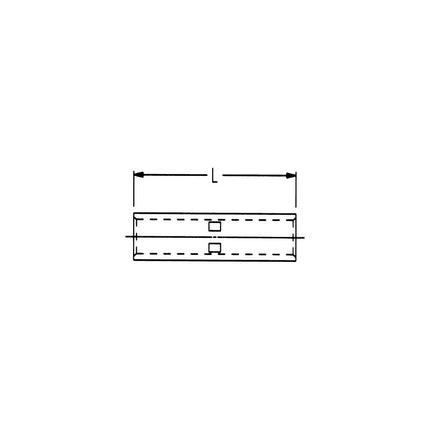

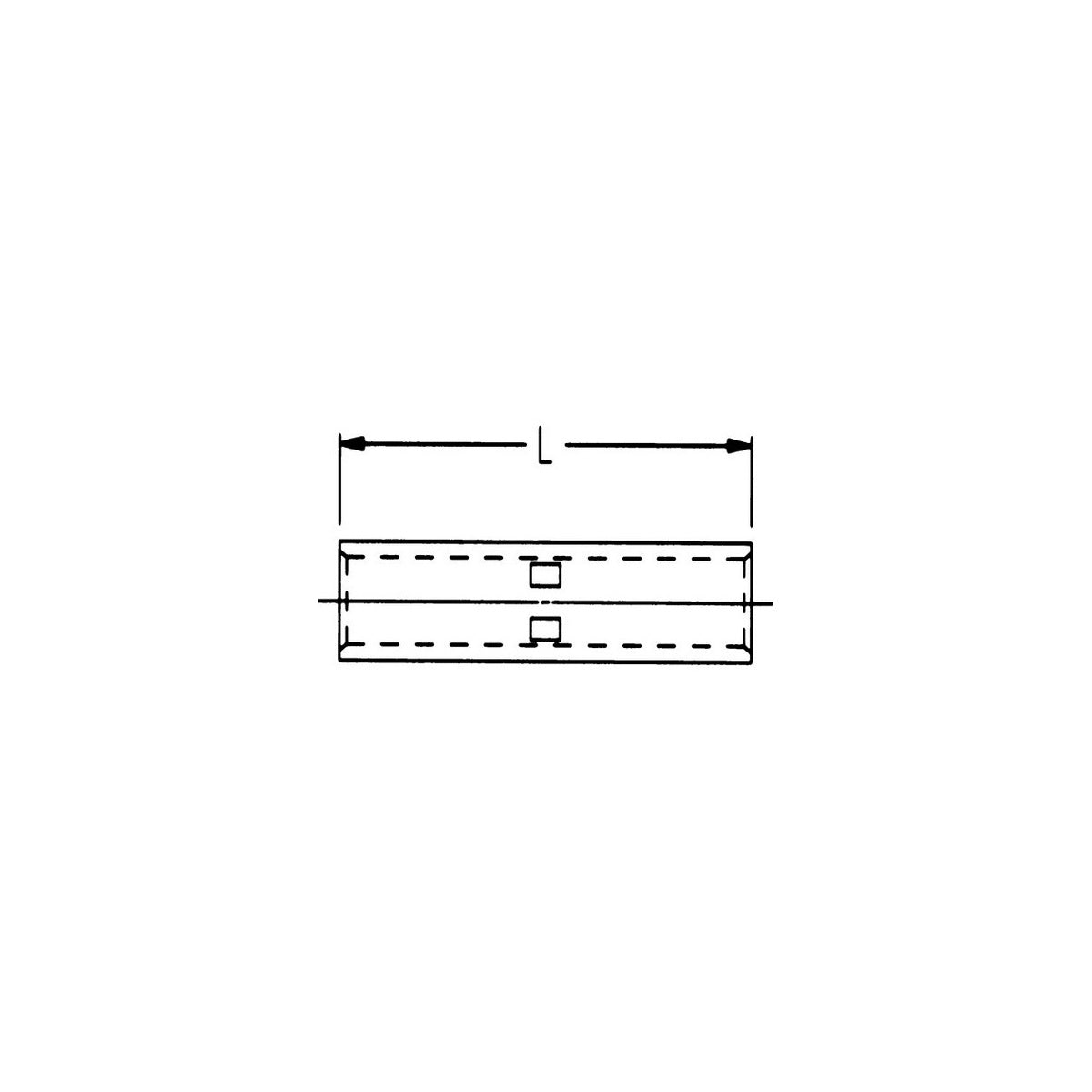

Copper Short Barrel Compression Splices 1/0 – Electrical Wire Connector

The Copper Short Barrel Compression Splice 1/0 is designed for secure electrical connections in wire and cable applications. Manufactured by Morris Products, this splice is made from high conductivity seamless copper tubing, providing reliable conductivity and durability. It is suitable for use by electrical distributors and switchgear suppliers requiring quality compression splices for wire sizes ranging from #8 stranded through 1000 MCM. The splice features electro-tin plating and color coding for easy identification and proper installation in lighting solutions and electrical systems.

Specifications

• Material: High Conductivity Copper
• Color Coding: Pink
• Inside Diameter: .390 inches
• Outside Diameter: .520 inches
• Temperature Rating: 90¬∞C
• Voltage Rating: 35 kV
• Wire Size Range: #8 Stranded through 1000 MCM
• Manufacturer Part #: 94420
• Product Weight: 0.0830 lbs
• Certifications: UL UL486A, cUL, RoHS Compliant

Features

• Manufactured from high strength, high conductivity seamless copper tubing
• Electro-tin plated for corrosion resistance
• Color coded and marked with die size and crimp marks for accurate installation

Downloads & Links

• Spec Sheet
