Morris Products
Copper Short Barrel Compression Splices #1
SKU: #279474
Part: #94418
UPC: 601986944182
Morris Products
Copper Short Barrel Compression Splices #1
SKU: #279474
Part: #94418
UPC: 601986944182
Next day delivery
Description

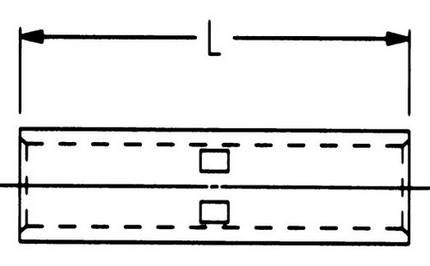

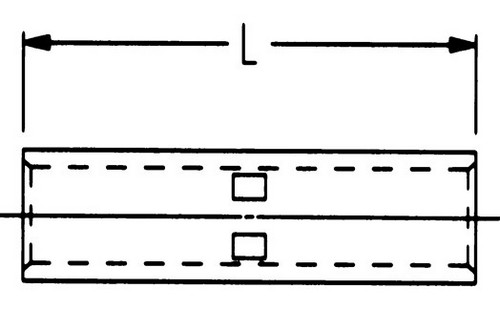

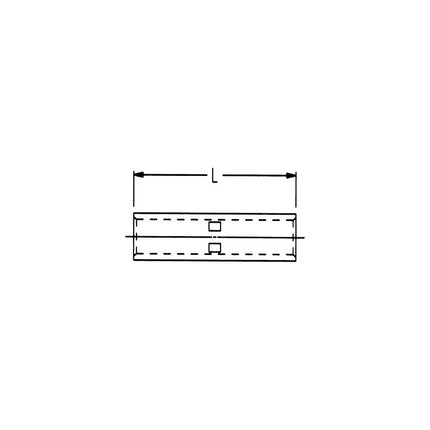

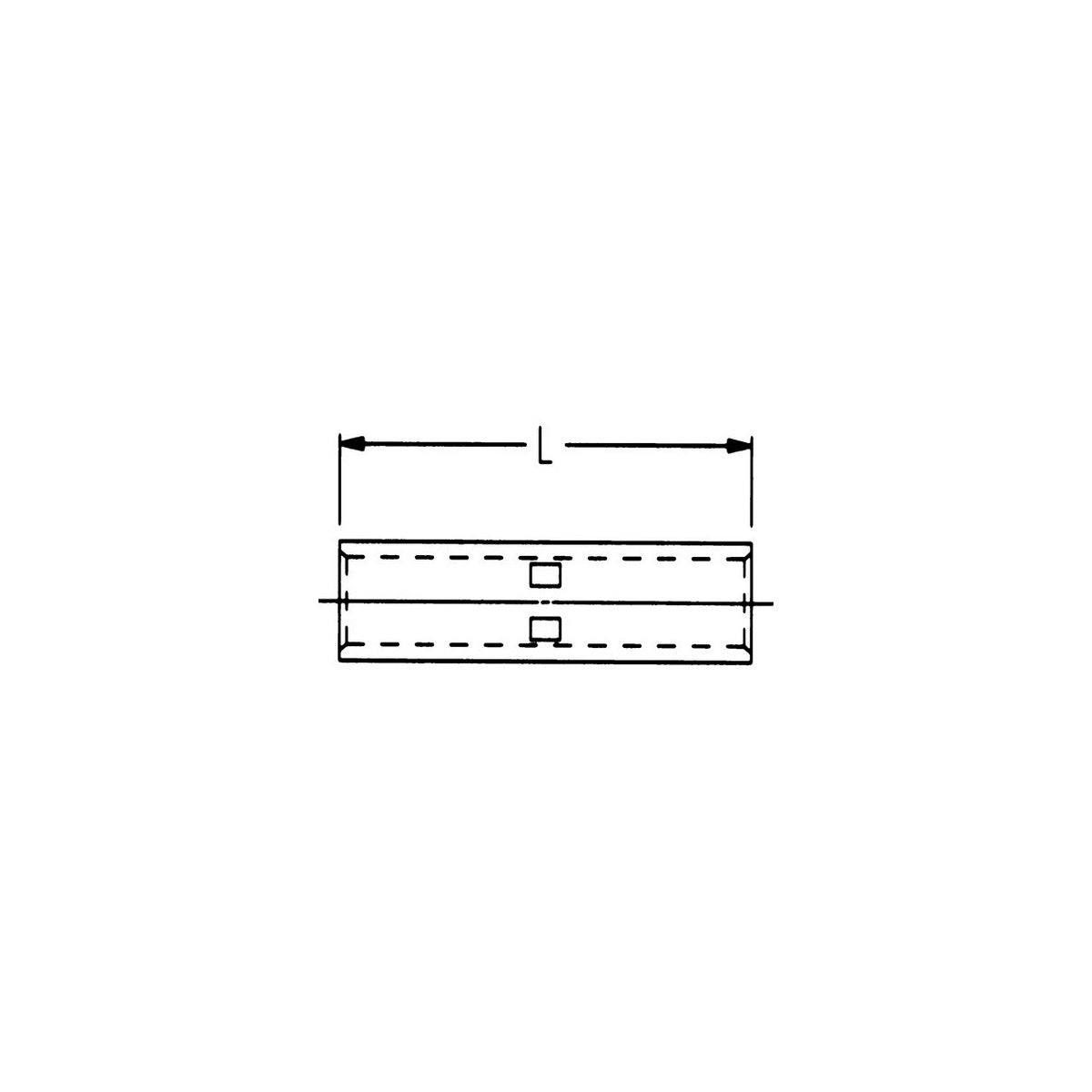

Copper Short Barrel Compression Splices #1 – Electrical Wire and Cable Connector
The Copper Short Barrel Compression Splice #1 is designed for reliable electrical connections in wire and cable installations. Manufactured by Morris Products, this connector is suitable for use by electrical distributors and switchgear suppliers requiring high conductivity and durable splicing solutions for wire sizes ranging from #8 Stranded through 1000 MCM. Its seamless copper construction and electro-tin plating ensure optimal electrical performance and corrosion resistance in lighting solutions and other electrical applications.
Specifications
- Wire Size: #8 Stranded through 1000 MCM
- Material: High Conductivity Seamless Copper Tubing
- Material Treatment: Electro-Tin Plating
- Temperature Rating: 90°C
- Voltage Rating: 35 KV
- Flammability Rating: N/A
- Amp Rating: To Conductor
- Inside Diameter: 0.360 inches
- Outside Diameter: 0.469 inches
- Color: Green
- Product Weight: 0.0650 lbs
- Manufacturer Part Number: 94418
- UPC: 601986944182
Features
- Manufactured from high strength, high conductivity seamless copper tubing
- Electro-tin plated for enhanced corrosion resistance
- Color coded and marked with die size and crimp marks for easy identification
