Morris Products

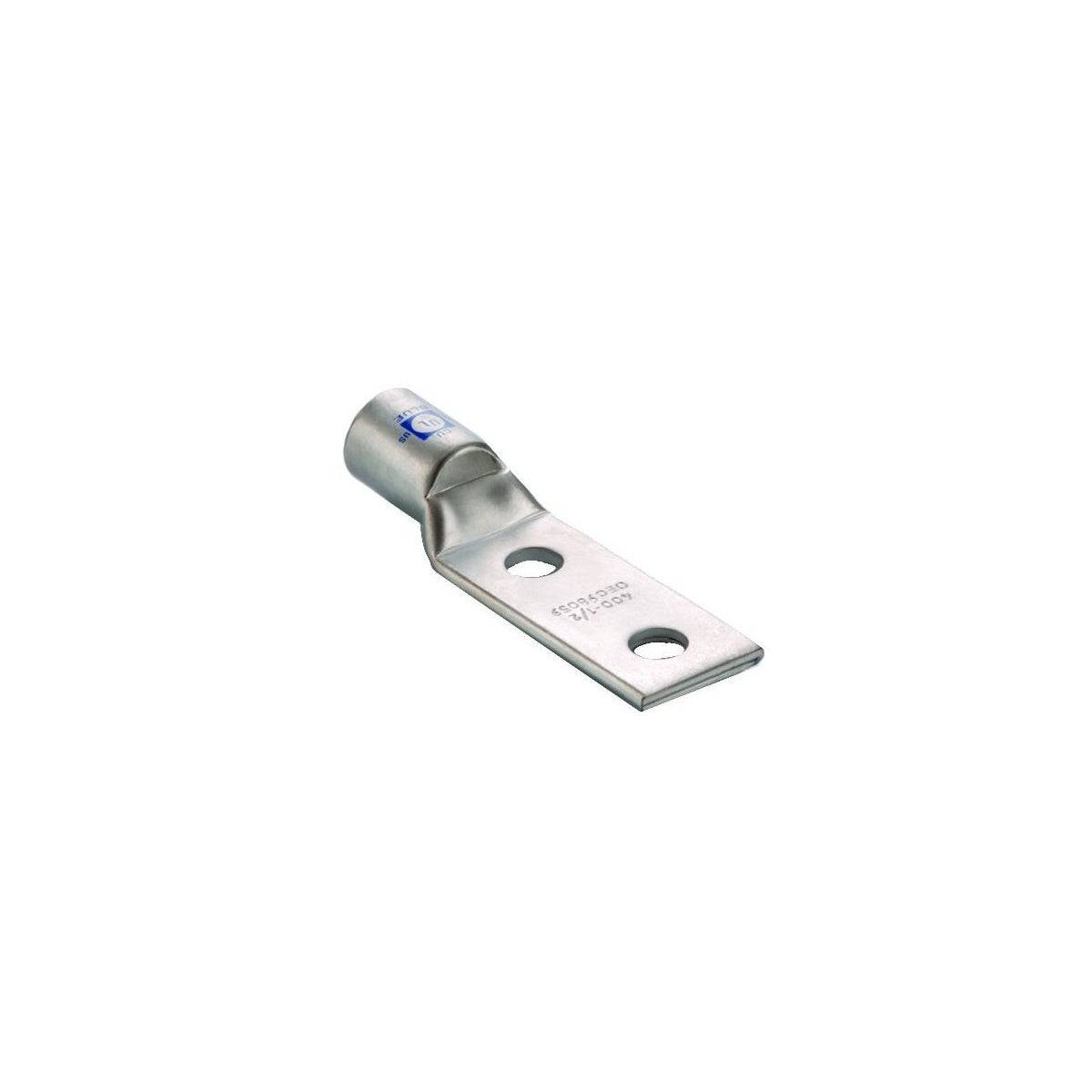

Copper Short Barrel 2 Hole Compression Lugs 500 MCM 3/8 Stud 1" Spacing
SKU: #278980
Part: #94188
UPC: 601986941884
Morris Products
Copper Short Barrel 2 Hole Compression Lugs 500 MCM 3/8 Stud 1" Spacing
SKU: #278980
Part: #94188
UPC: 601986941884
Description
Copper Short Barrel 2 Hole Compression Lugs 500 MCM 3/8 Stud 1" Spacing – Electrical Cable Termination Solutions
This Copper Short Barrel 2 Hole Compression Lug is designed for fast and reliable electrical cable terminations. Manufactured by Morris Products, it is suitable for use by electrical distributors and switchgear suppliers requiring high-quality wire and cable connectors. The lug is made from high conductivity copper, ensuring maximum electrical performance and durability in various industrial and commercial electrical applications.
Specifications
- Material: High Conductivity Copper
- Color Coding: Brown
- Inside Diameter: .838 inches
- Outside Diameter: 1.06 inches
- Product Weight: 1.0050 lbs
- Manufacturer: Morris Products
- Manufacturer Part #: 94188
- Wire Size: 500 MCM
- Stud Size: 3/8 inch
- Hole Spacing: 1 inch
Features
- High conductivity seamless copper construction
- Electro-tin plating resists corrosion and reduces contact resistance for maximum conductivity
- Two-hole design for secure mounting
- Color-coded die index and crimp marks printed on barrel for easy identification
- UL 486A listed for applications up to 35KV
