Morris Products

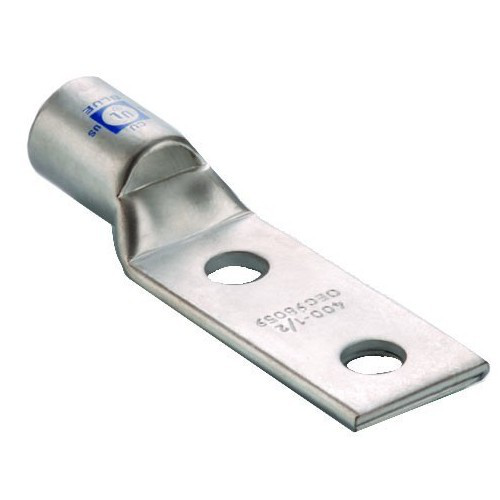

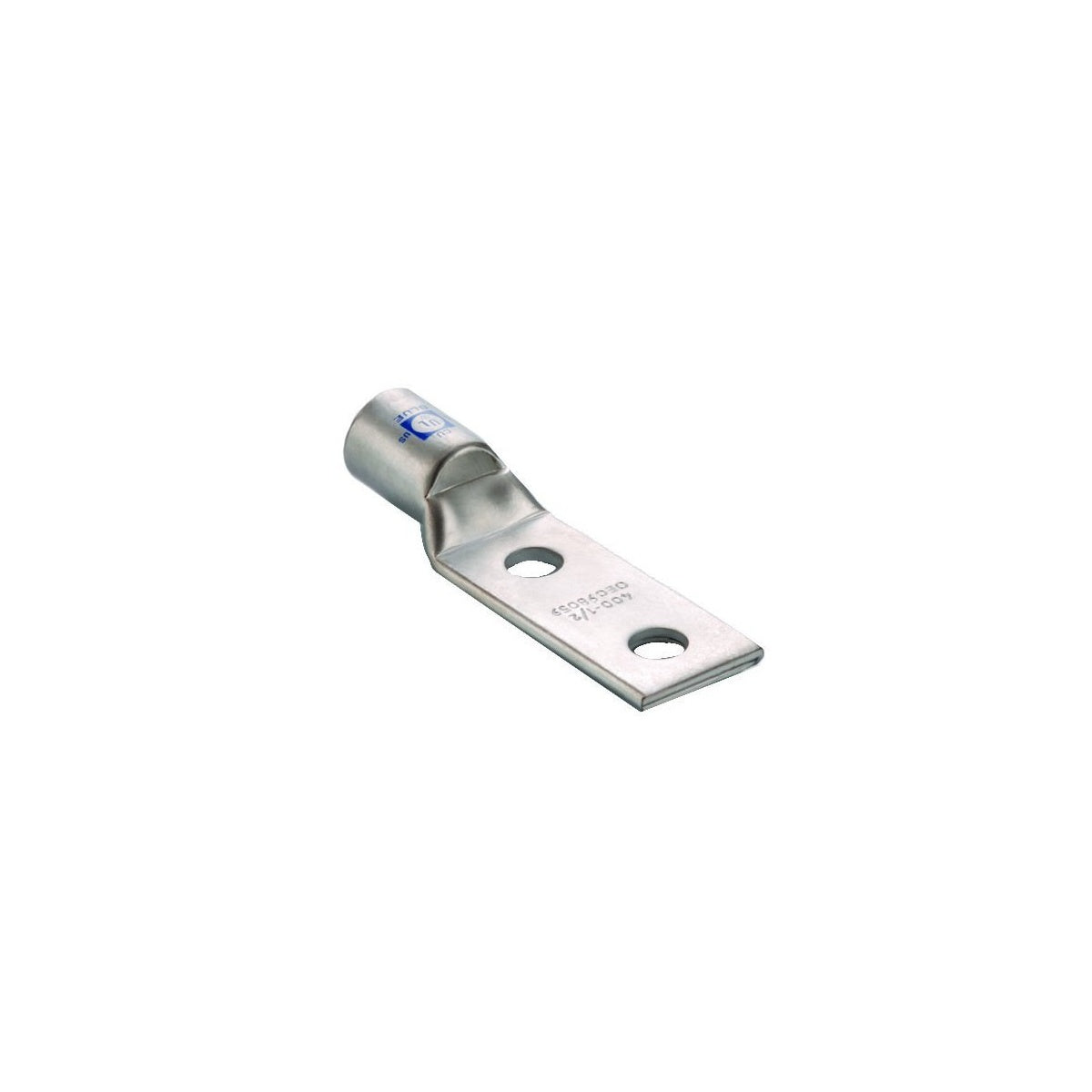

Copper Short Barrel 2 Hole Compression Lugs 500 MCM 1/2 Stud 1-3/4" Spacing
SKU: #278985
Part: #94190
UPC: 601986941907
Morris Products
Copper Short Barrel 2 Hole Compression Lugs 500 MCM 1/2 Stud 1-3/4" Spacing
SKU: #278985
Part: #94190
UPC: 601986941907
Description
Copper Short Barrel 2 Hole Compression Lugs 500 MCM 1/2 Stud 1-3/4" Spacing – Copper Compression Lugs
This Copper Short Barrel 2 Hole Compression Lug is designed for fast, reliable electrical cable terminations in wire and cable applications. Manufactured by Morris Products, it is suited for electrical distributors and switchgear suppliers requiring high conductivity and durable connections. The lug features a 1/2 inch stud size with 1-3/4 inch hole spacing, optimized for 500 MCM cable sizes and color-coded brown for easy identification.
Specifications
- Material: High Conductivity Copper
- Color Coding: Brown
- Inside Diameter: .838 inches
- Outside Diameter: 1.06 inches
- Product Weight: 1.1250 lbs
- Manufacturer: Morris Products
- Manufacturer Part #: 94190
- Stud Size: 1/2 inch
- Hole Spacing: 1-3/4 inches
- Wire Range: 500 MCM
Features
- High conductivity seamless copper construction
- Electro-tin plating resists corrosion and reduces contact resistance for maximum conductivity
- Two-hole design for secure mounting and reliable electrical connections
- Color-coded die index and crimp marks printed on barrel for easy identification and installation
- UL 486A listed for applications through 35kV
