Morris Products
Copper Short Barrel 2 Hole Compression Lugs 4/0 Awg 1/4 Stud 1" Hole Spacing
SKU: #280529
Part: #94966
UPC: 601986949668
Morris Products
Copper Short Barrel 2 Hole Compression Lugs 4/0 Awg 1/4 Stud 1" Hole Spacing
SKU: #280529
Part: #94966
UPC: 601986949668
Description

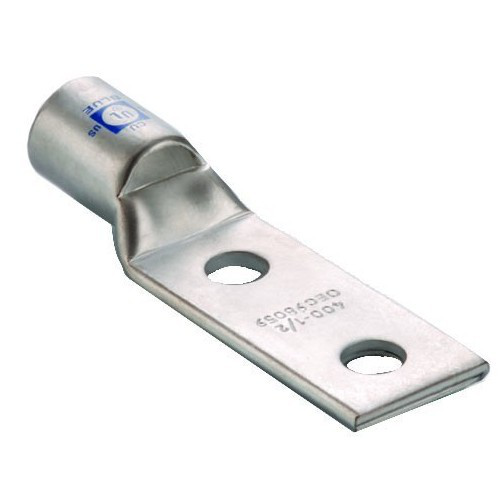

Copper Short Barrel 2 Hole Compression Lugs 4/0 Awg 1/4 Stud 1" Hole Spacing – Electrical Wire and Cable Connector
This copper short barrel compression lug is designed for fast, reliable electrical cable terminations. Suitable for use by electrical distributors and switchgear suppliers, it provides a secure connection for 4/0 AWG wire with a 1/4" stud size and 1" hole spacing. The lug is made from high conductivity copper, ensuring optimal electrical performance in lighting solutions and industrial electrical applications.
Specifications
- Material: High Conductivity Copper
- Color Coding: Purple
- Inside Diameter: .547 inches
- Outside Diameter: .688 inches
- Product Weight: 0.1380 lbs
- Manufacturer Part #: 94966
- UPC: 601986949668
Features
- Two-hole design for secure compression connections
- Short barrel for compact installations
- Compatible with 4/0 AWG wire and 1/4" stud
- 1" hole spacing for precise mounting
