Morris Products
Copper Short Barrel 2 Hole Compression Lugs #2 Awg 1/2 Stud 1-3/4" Spacing
SKU: #278897
Part: #94142
UPC: 601986941426
Morris Products
Copper Short Barrel 2 Hole Compression Lugs #2 Awg 1/2 Stud 1-3/4" Spacing
SKU: #278897
Part: #94142
UPC: 601986941426
Description

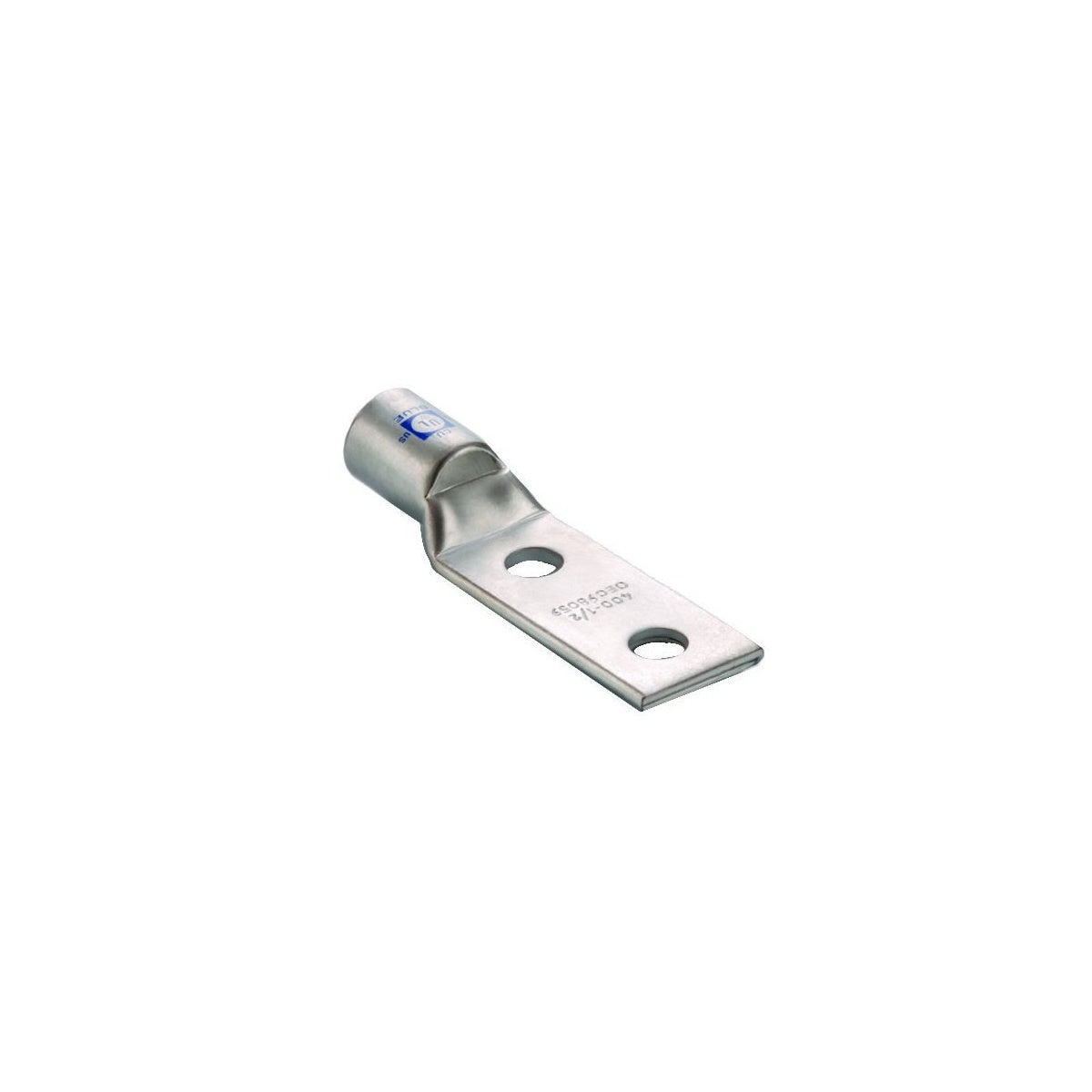

Copper Short Barrel 2 Hole Compression Lugs #2 Awg 1/2 Stud 1-3/4" Spacing - Copper Compression Lugs
This product is a copper short barrel compression lug designed for reliable electrical cable terminations. It is suitable for use by electrical distributors and lighting solutions providers requiring secure wire and cable connections. The lug supports #2 AWG wire size and features a 1/2 inch stud with 1-3/4 inch hole spacing, making it compatible with various switchgear and electrical equipment installations.
Specifications
- Material: High Conductivity Copper
- Color Coding: Brown
- Inside Diameter: .315 inches
- Outside Diameter: .421 inches
- Product Weight: 0.5250 lbs
- Manufacturer: Morris Products
- Manufacturer Part #: 94142
Features
- Two-hole design for secure cable termination
- High conductivity seamless copper construction
- Electro-tin plating resists corrosion and reduces contact resistance
- Color coded die index and crimp marks printed on barrel for easy identification
- UL 486A listed for applications through 35kV
