Morris Products
Copper Short Barrel 1 Hole Compression Lugs 750 MCM 3/4 Stud
SKU: #280355
Part: #94841
UPC: 601986948418
Morris Products
Copper Short Barrel 1 Hole Compression Lugs 750 MCM 3/4 Stud
SKU: #280355
Part: #94841
UPC: 601986948418
Description

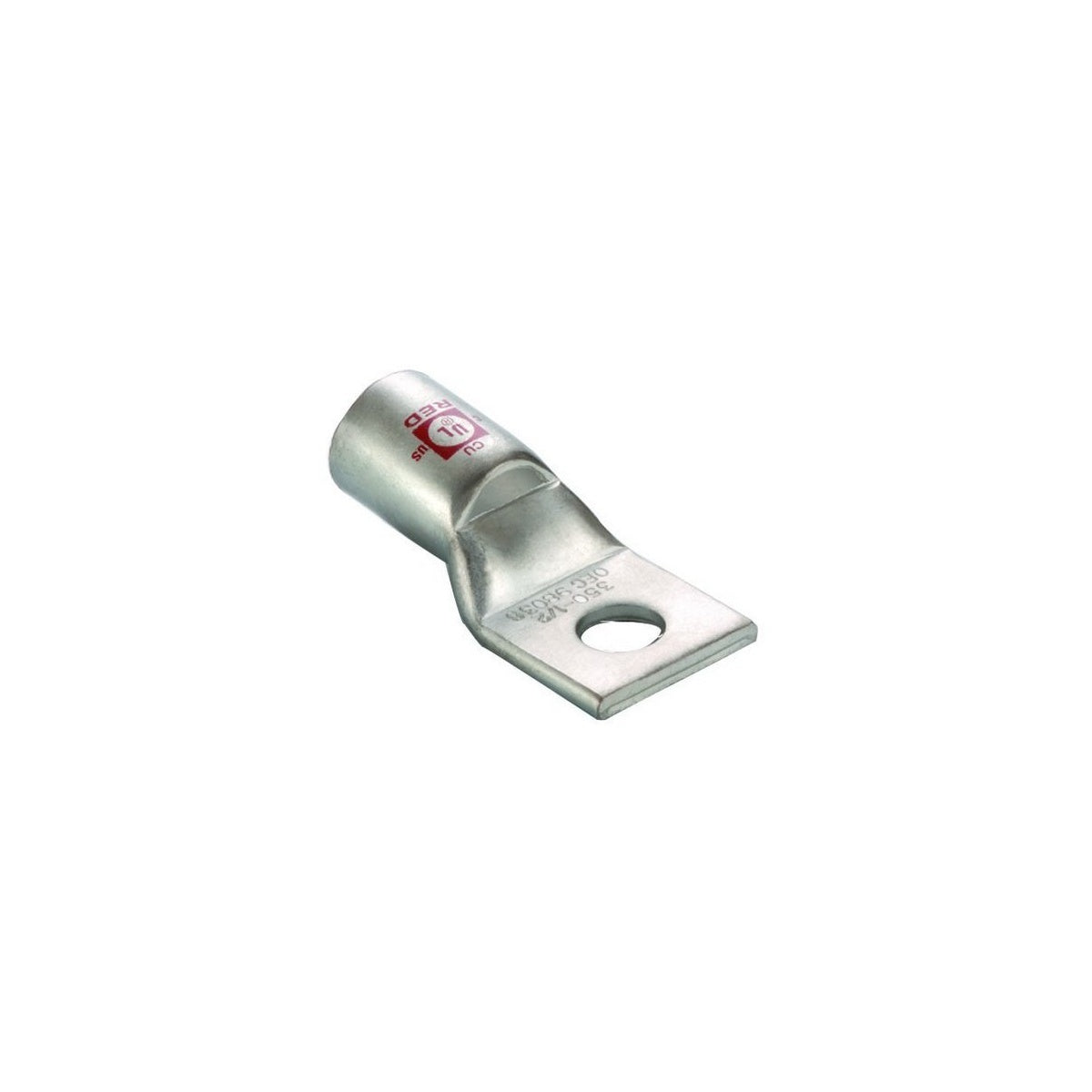

Copper Short Barrel 1 Hole Compression Lugs 750 MCM 3/4 Stud – Electrical Cable Connector
This Copper Short Barrel 1 Hole Compression Lug is designed for fast, reliable electrical cable terminations in wire and cable applications. Manufactured by Morris Products, it serves as a high-quality electrical distributor component, suitable for use in lighting solutions, switchgear assemblies, and other electrical systems requiring secure cable connections.
Specifications
- Material: High Conductivity Copper
- Color Coding: Black
- Inside Diameter: 1.03 inches
- Outside Diameter: 1.31 inches
- Temperature Rating: 90°C
- Voltage Rating: 35 KV
- Stud Configuration: 1 Hole
- UPC: 601986948418
- Product Weight: 0.6270 lbs
- Manufacturer Part #: 94841
Features
- Manufactured from high strength, high conductivity seamless copper tubing
- Electro-tin plated for corrosion resistance
- Color coded and marked with die size and crimp marks for easy identification
- Peep hole design for inspection of cable insertion
