Morris Products
Copper Short Barrel 1 Hole Compression Lugs 600 MCM 7/8 Stud
SKU: #280349
Part: #94839
UPC: 601986948395
Morris Products
Copper Short Barrel 1 Hole Compression Lugs 600 MCM 7/8 Stud
SKU: #280349
Part: #94839
UPC: 601986948395
Description

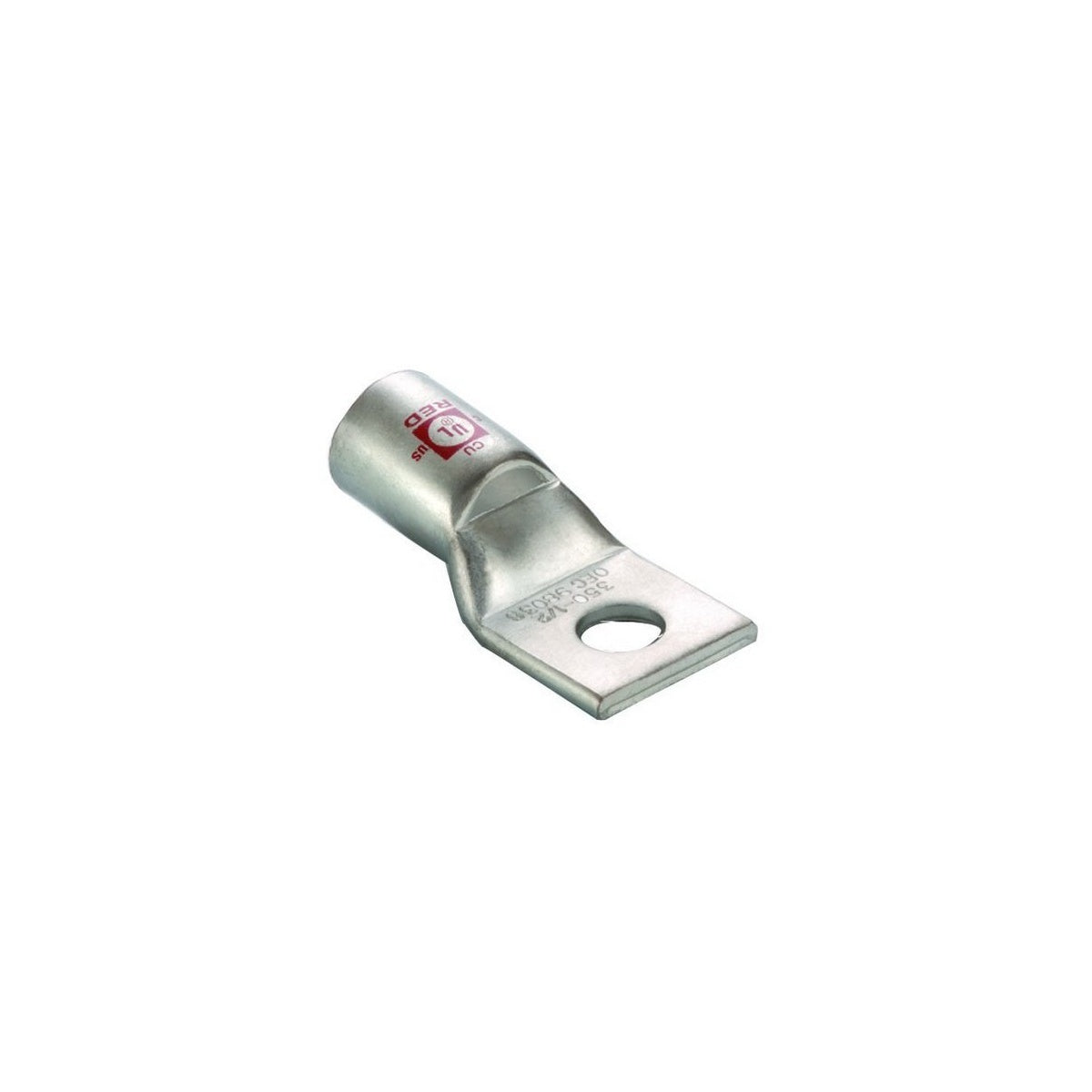

Copper Short Barrel 1 Hole Compression Lugs 600 MCM 7/8 Stud – Electrical Connector
This Copper Short Barrel 1 Hole Compression Lug is designed for fast, reliable electrical cable terminations. Manufactured from high conductivity seamless copper tubing, it ensures efficient electrical conductivity and mechanical strength. Ideal for electrical distributors, lighting solutions, wire and cable applications, and switchgear suppliers requiring secure and durable cable connections.
Specifications
- Material: High Conductivity Copper
- Color: Green
- Inside Diameter: 0.925 inches
- Outside Diameter: 1.189 inches
- Stud Size: 7/8 inch (1 Hole)
- Temperature Rating: 90°C
- Voltage Rating: 35 KV
- UL Certification: UL486A
- cUL Certification: Yes
- RoHS Compliant: Yes
- Product Weight: 0.4830 lbs
Features
- Manufactured from high strength, high conductivity seamless copper tubing
- Electro-tin plated for corrosion resistance
- Color coded and marked with die size and crimp marks for easy installation
- Includes peep hole for visual inspection
