Morris Products
Copper Short Barrel 1 Hole Compression Lugs 400 MCM 3/8 Stud
SKU: #280334
Part: #94824
UPC: 601986948241
Morris Products
Copper Short Barrel 1 Hole Compression Lugs 400 MCM 3/8 Stud
SKU: #280334
Part: #94824
UPC: 601986948241
Description

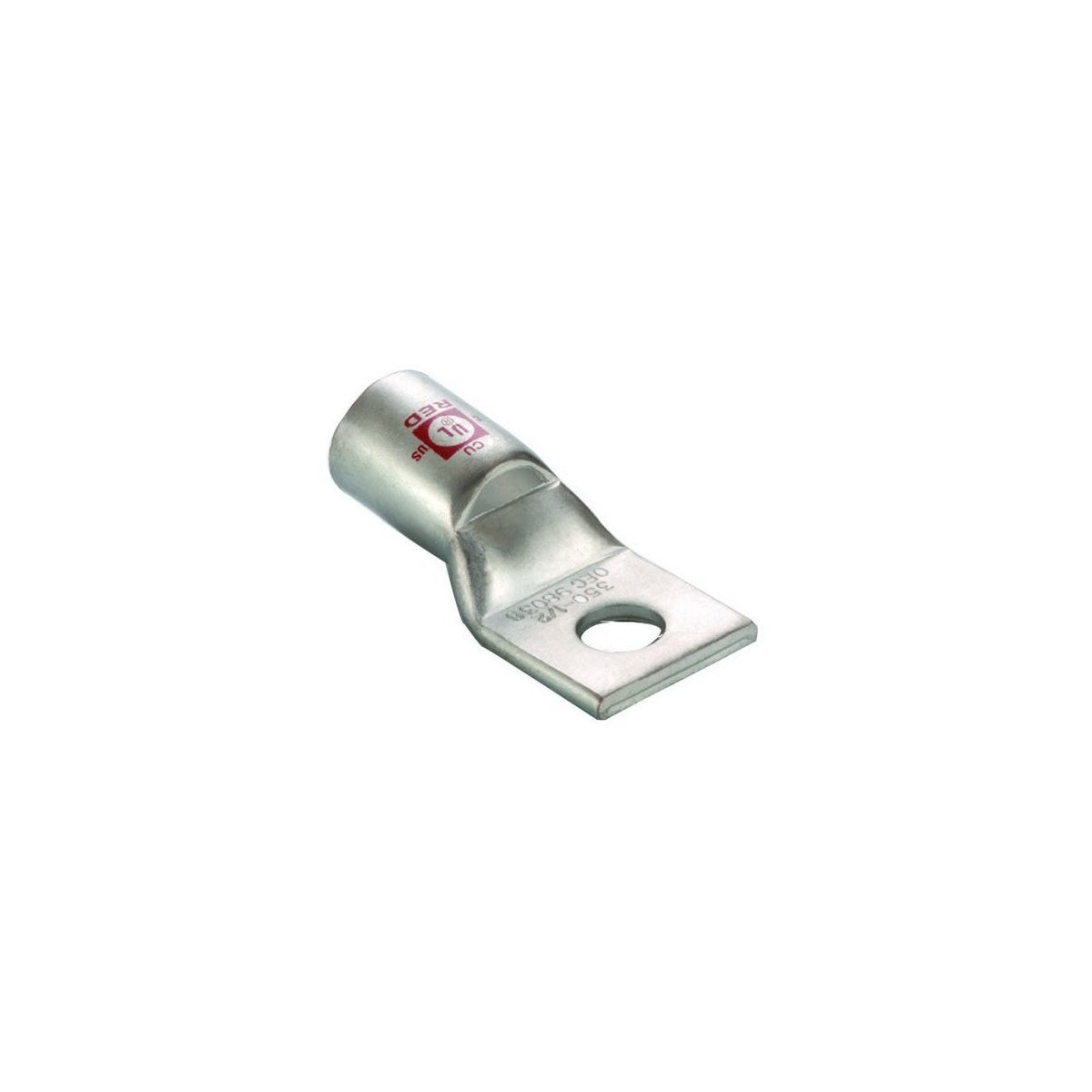

Copper Short Barrel 1 Hole Compression Lugs 400 MCM 3/8 Stud – Electrical Connector
This Copper Short Barrel 1 Hole Compression Lug is designed for fast, reliable electrical cable terminations in wire and cable applications. Manufactured by Morris Products, it is suitable for electrical distributors and switchgear suppliers requiring high-quality copper connectors for power distribution and grounding systems. The lug is made of high conductivity seamless copper tubing with electro-tin plating, ensuring excellent electrical performance and corrosion resistance.
Specifications
- Material: High Conductivity Copper
- Color Coding: Blue
- Inside Diameter: 0.764 inches
- Outside Diameter: 0.949 inches
- Temperature Rating: 90°C
- Voltage Rating: 35 KV
- Stud Configuration: 1 Hole
- Product Weight: 0.2470 lbs
- Amp Rating: To Conductor
Features
- Manufactured from high strength, high conductivity seamless copper tubing
- Electro-tin plated for enhanced corrosion resistance
- Color coded and marked with die size and crimp marks for easy identification
- Includes peep hole for inspection
