Morris Products

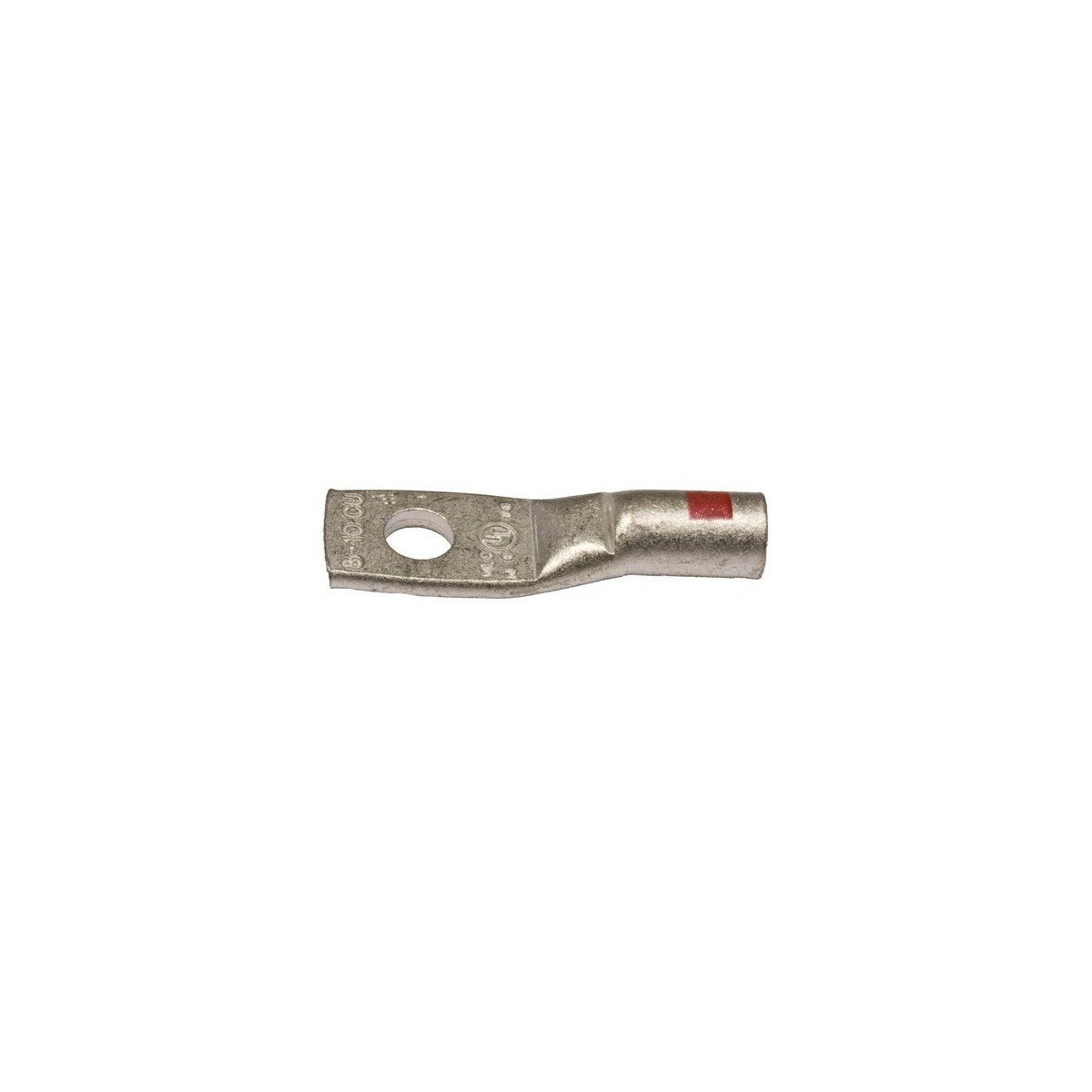

Copper Short Barrel 1 Hole Compression Lugs #4 Awg 3/8 Stud
SKU: #278456
Part: #94030
UPC: 601986940306
Morris Products
Copper Short Barrel 1 Hole Compression Lugs #4 Awg 3/8 Stud
SKU: #278456
Part: #94030
UPC: 601986940306
Description
Copper Short Barrel 1 Hole Compression Lugs #4 Awg 3/8 Stud – Electrical Connector
This Copper Short Barrel 1 Hole Compression Lug is designed for fast and reliable electrical cable terminations. Manufactured by Morris Products, it is suitable for use in electrical distribution and wiring applications requiring secure connections. The lug is made from high conductivity seamless copper tubing, ensuring excellent electrical performance and durability in wire and cable installations.
Specifications
- Material: High Conductivity Copper
- Color: Gray
- Wire Size: #4 AWG
- Stud Size: 3/8 inch
- Inside Diameter: 0.252 inches
- Outside Diameter: 0.343 inches
- Temperature Rating: 90°C
- Voltage Rating: 35 KV
- UL Certification: UL486A
- cUL Certified: Yes
- RoHS Compliant: Yes
- Product Weight: 0.0320 lbs
Features
- Manufactured from high strength, high conductivity seamless copper tubing
- Electro-tin plated for corrosion resistance
- Color coded and marked with die size and crimp marks for easy identification
- Includes peep hole for visual inspection of cable insertion
- One hole stud configuration for secure attachment
