Morris Products
Copper Short Barrel 1 Hole Compression Lugs #4 Awg #10 Stud
SKU: #278439
Part: #94024
UPC: 601986940245
Morris Products
Copper Short Barrel 1 Hole Compression Lugs #4 Awg #10 Stud
SKU: #278439
Part: #94024
UPC: 601986940245
Description

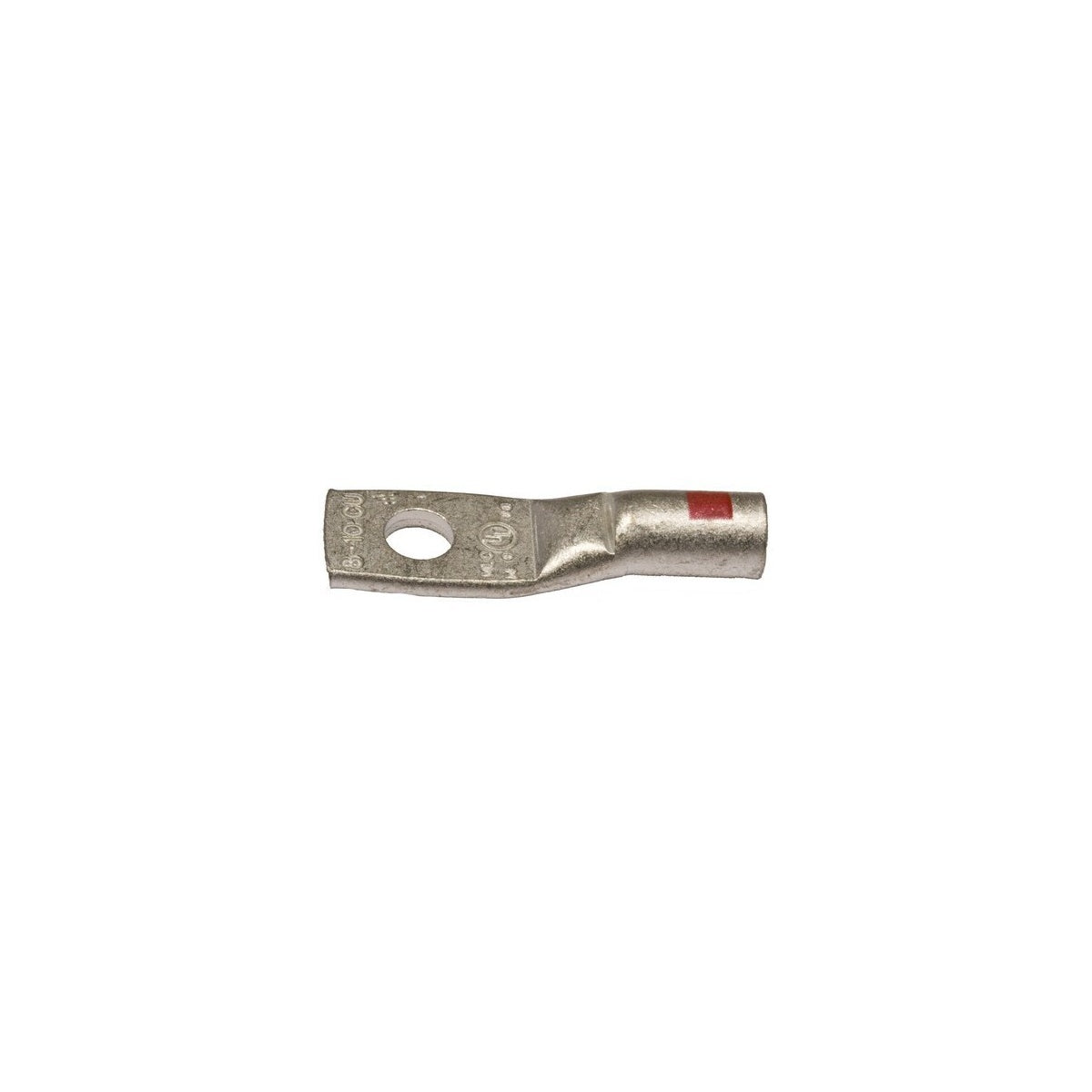

Copper Short Barrel 1 Hole Compression Lugs #4 Awg #10 Stud - Electrical Cable Termination Solutions
This Copper Short Barrel 1 Hole Compression Lug is designed for fast and reliable electrical cable terminations. Manufactured by Morris Products, it is suitable for use by electrical distributors and switchgear suppliers requiring high conductivity and durable wire and cable connectors. The lug is ideal for applications involving #4 AWG wire size and #10 stud size, ensuring secure and efficient electrical connections in lighting solutions and other electrical systems.
Specifications
- Material: High Conductivity Copper
- Color: Gray
- Inside Diameter: 0.252 inches
- Outside Diameter: 0.343 inches
- Temperature Rating: 90°C
- Voltage Rating: 35 KV
- Stud Configuration: 1 Hole
- Manufacturer: Morris Products
- Manufacturer Part #: 94024
- UL Certification: UL486A
- cUL: Yes
- RoHS Compliant: Yes
- Product Weight: 0.0380 lbs
Features
- Manufactured from high strength, high conductivity seamless copper tubing
- Electro-tin plated for enhanced corrosion resistance
- Color coded and marked with die size and crimp marks for easy identification
- Peep hole for inspection of proper wire insertion
