Morris Products
Copper Short Barrel 1 Hole Compression Lugs 4/0 Awg 5/16 Stud
SKU: #278584
Part: #94076
UPC: 601986940764
Morris Products
Copper Short Barrel 1 Hole Compression Lugs 4/0 Awg 5/16 Stud
SKU: #278584
Part: #94076
UPC: 601986940764
Description

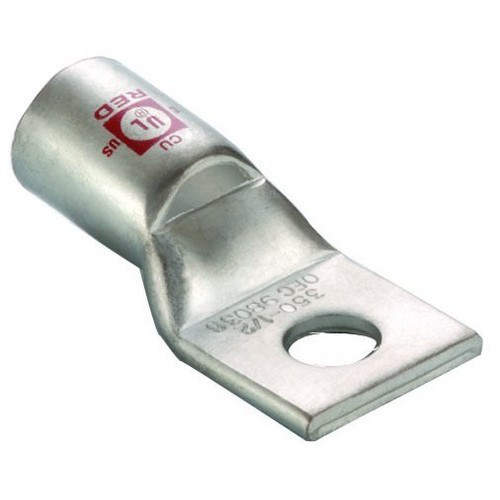

Copper Short Barrel 1 Hole Compression Lugs 4/0 Awg 5/16 Stud – Electrical Compression Connector
This Copper Short Barrel 1 Hole Compression Lug is designed for fast, reliable electrical cable terminations. Manufactured from high conductivity seamless copper tubing with electro-tin plating, it ensures strong electrical connections suitable for wire sizes ranging from #8 stranded through 1000 MCM. Ideal for electrical distributors and switchgear suppliers, it supports secure cable terminations in lighting solutions and wire and cable applications.
Specifications
- Material: High Conductivity Seamless Copper Tubing
- Stud Configuration: 1 Hole
- Stud Size: 5/16 inch
- Wire Size Range: #8 Stranded through 1000 MCM
- Temperature Rating: 90°C
- Voltage Rating: 35 KV
- Inside Diameter: 0.547 inches
- Outside Diameter: 0.688 inches
- Color Coding: Purple
- Product Weight: 0.1600 lbs
- Manufacturer: Morris Products
- Manufacturer Part Number: 94076
Features
- Manufactured from high strength, high conductivity seamless copper tubing
- Electro-tin plated for corrosion resistance
- Color coded and marked with die size and crimp marks for easy identification
- Peep hole for inspection of proper cable insertion
