Morris Products
Copper Short Barrel 1 Hole Compression Lugs 350 MCM 1/2 Stud
SKU: #278732
Part: #94088
UPC: 601986940887
Morris Products
Copper Short Barrel 1 Hole Compression Lugs 350 MCM 1/2 Stud
SKU: #278732
Part: #94088
UPC: 601986940887
Description

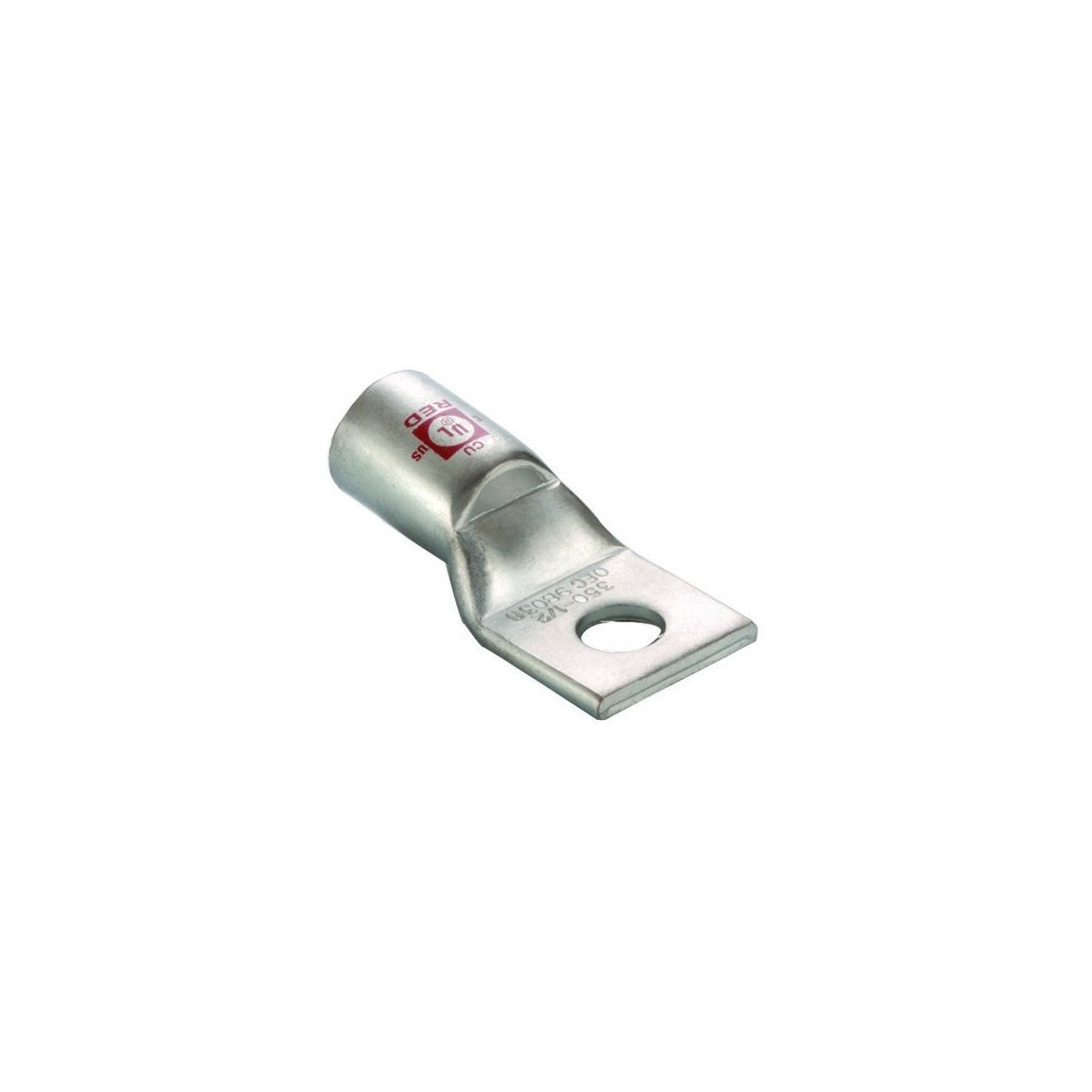

Copper Short Barrel 1 Hole Compression Lugs 350 MCM 1/2 Stud – Electrical Cable Termination
This Copper Short Barrel 1 Hole Compression Lug is designed for fast, reliable electrical cable terminations, suitable for use by electrical distributors and lighting solutions providers. Manufactured by Morris Products, it is intended for wire and cable applications requiring secure, high-conductivity connections. The lug is compatible with 350 MCM wire size and features a 1/2 inch stud size, making it suitable for heavy-duty electrical installations.
Specifications
- Material: High Conductivity Copper
- Color Coding: Red
- Inside Diameter: 0.701 inches
- Outside Diameter: 0.874 inches
- Stud Size: 1/2 inch
- Temperature Rating: 90°C
- Voltage Rating: 35 KV
- UL Certification: UL486A
- cUL Certified: Yes
- RoHS Compliant: Yes
- Product Weight: 0.2700 lbs
Features
- Manufactured from high strength, seamless high conductivity copper tubing
- Electro-tin plated for enhanced corrosion resistance
- Color coded and marked with die size and crimp marks for easy identification
- Includes peep hole for inspection of cable insertion
