Copper Short Barrel 1 Hole Compression Lugs 3/0 Awg 1/4 Stud - Compression Connector

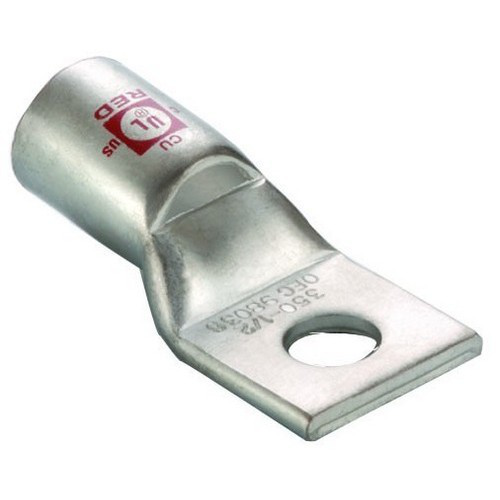

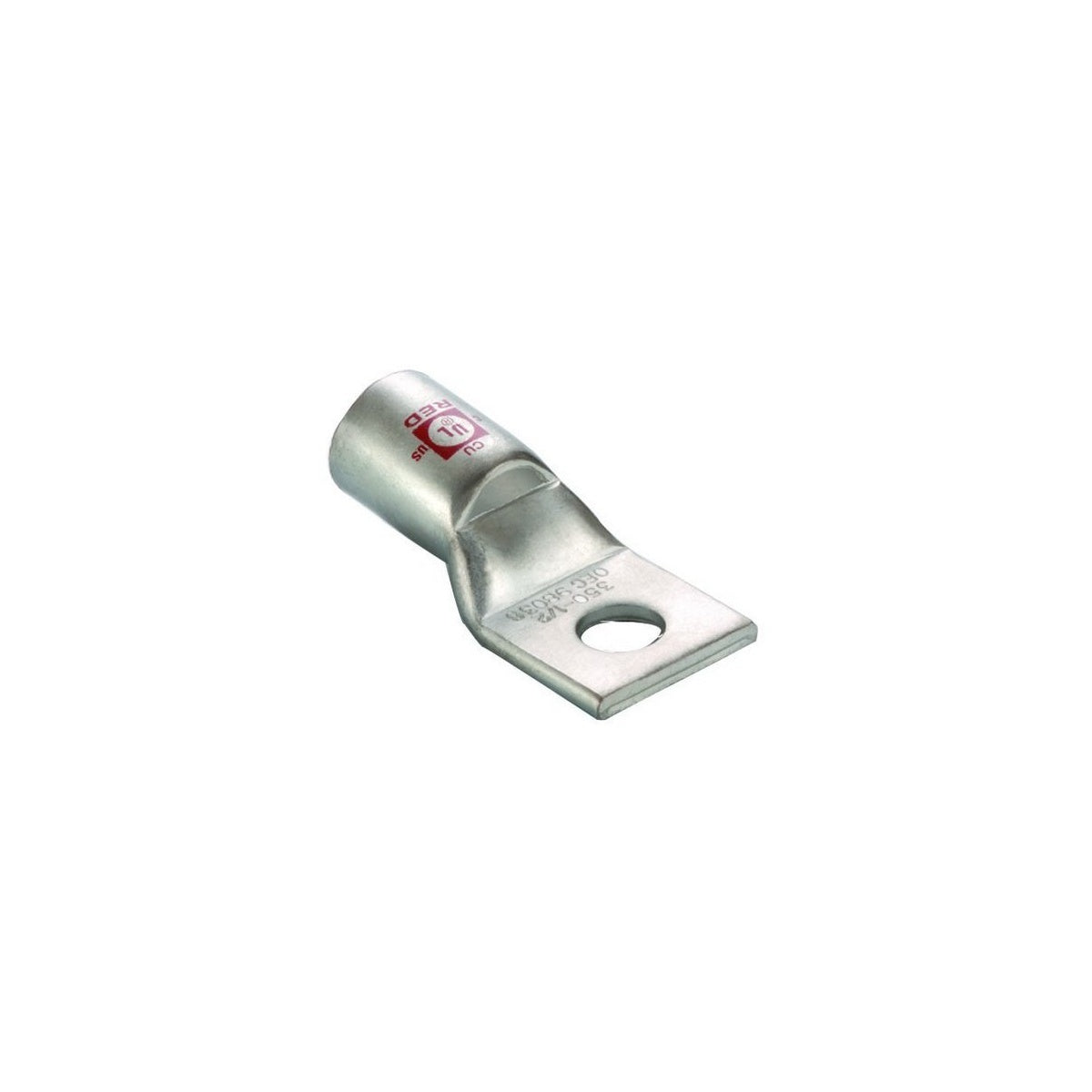

This copper short barrel 1 hole compression lug is designed for fast, reliable electrical cable terminations. Manufactured from high conductivity seamless copper tubing with electro-tin plating, it provides durable and efficient connectivity for electrical distributors and wire and cable applications. The lug is color coded orange for easy identification and features a 1/4 inch stud size suitable for 3/0 AWG wire.

Specifications

• Material: High Conductivity Copper
• Color Coding: Orange
• Inside Diameter: .492 inches
• Outside Diameter: .622 inches
• Stud Configuration: 1 Hole
• Stud Size: 1/4 inch
• Temperature Rating: 90¬∞C
• Voltage Rating: 35 KV
• UL Certification: UL486A
• cUL Certification: Yes
• RoHS Compliant: Yes

Features

• Manufactured from high strength, high conductivity seamless copper tubing
• Electro-tin plated for corrosion resistance
• Color coded and marked with die size and crimp marks for easy installation
• Peep hole design for inspection of cable insertion

Downloads & Links

• Spec Sheet
