Morris Products
Copper Short Barrel 1 Hole Compression Lugs #2 Awg 5/16 Stud
SKU: #278471
Part: #94036
UPC: 601986940368
Morris Products
Copper Short Barrel 1 Hole Compression Lugs #2 Awg 5/16 Stud
SKU: #278471
Part: #94036
UPC: 601986940368
Description

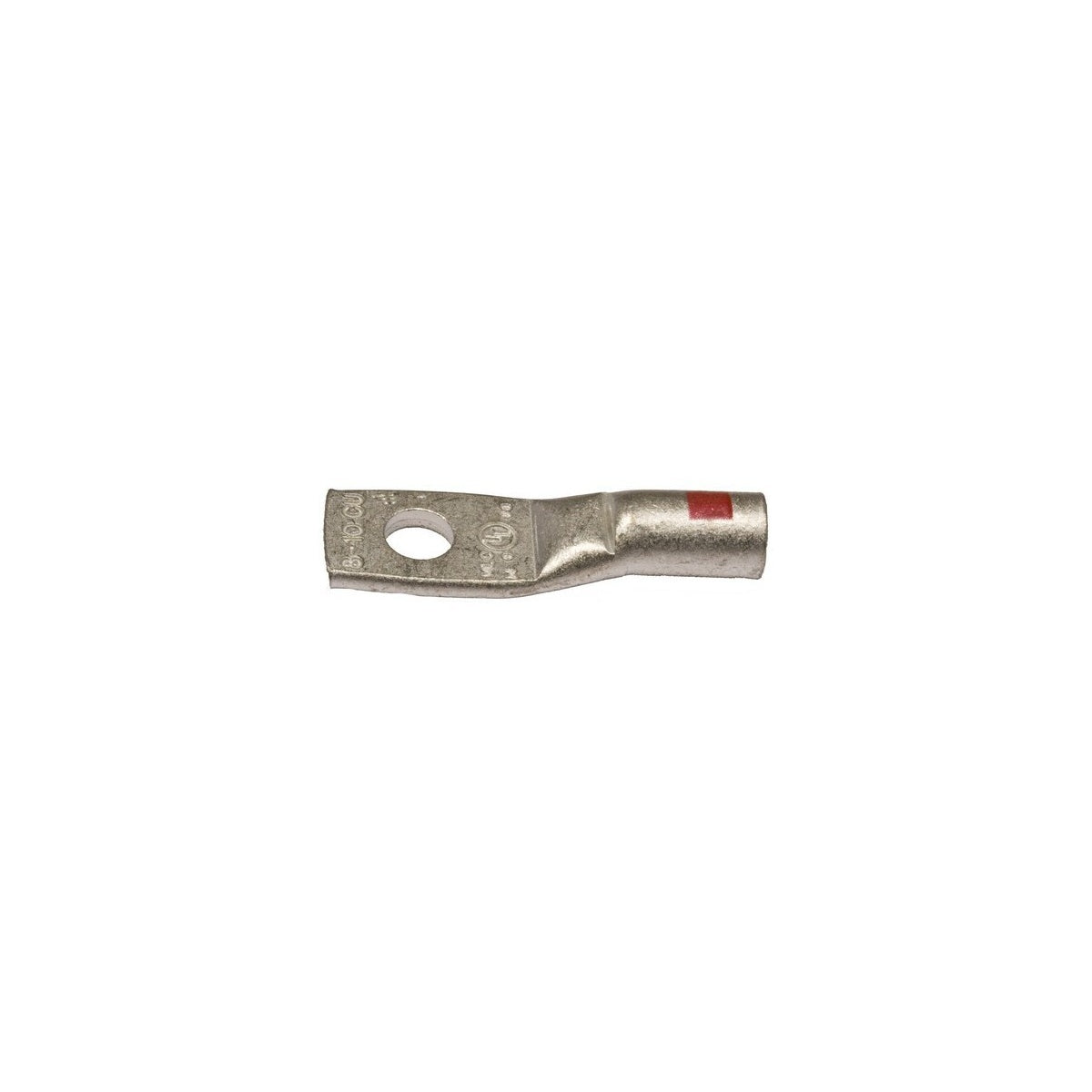

Copper Short Barrel 1 Hole Compression Lugs #2 Awg 5/16 Stud – Electrical Connector
This Copper Short Barrel 1 Hole Compression Lug is designed for reliable electrical cable terminations in wire and cable applications. Manufactured by Morris Products, it is suitable for use by electrical distributors and switchgear suppliers requiring durable, high conductivity connectors for professional lighting solutions and electrical systems.
Specifications
- Material: High Conductivity Copper
- Color Coding: Brown
- Inside Diameter: 0.315 inches
- Outside Diameter: 0.422 inches
- Stud Configuration: 1 Hole
- Stud Size: 5/16 inch
- Temperature Rating: 90°C
- Voltage Rating: 35 KV
- UL Certification: UL486A
- cUL Certification: Yes
- RoHS Compliant: Yes
- Product Weight: 0.0530 lbs
Features
- Manufactured from high strength seamless copper tubing for superior conductivity
- Electro-tin plated for enhanced corrosion resistance
- Color coded and marked with die size and crimp marks for easy identification and installation
- Includes a peep hole for inspection of cable insertion
