Morris Products
Copper Short Barrel 1 Hole Compression Lugs #2 Awg 3/8 Stud
SKU: #278474
Part: #94038
UPC: 601986940382
Morris Products

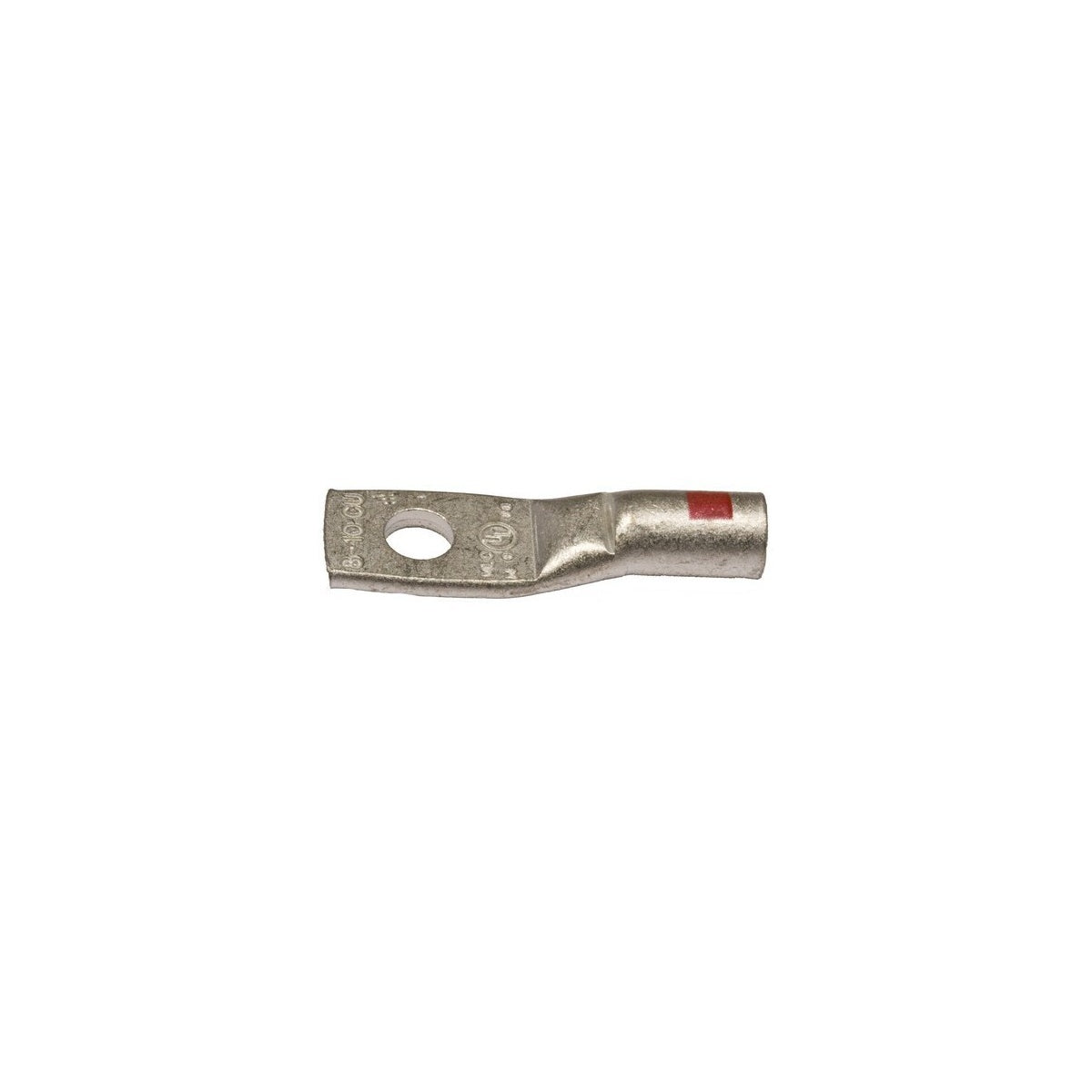

Copper Short Barrel 1 Hole Compression Lugs #2 Awg 3/8 Stud
SKU: #278474
Part: #94038
UPC: 601986940382
Description
Copper Short Barrel 1 Hole Compression Lugs #2 Awg 3/8 Stud - Electrical Wire Connectors
This Copper Short Barrel 1 Hole Compression Lug is designed for fast and reliable electrical cable terminations. Manufactured by Morris Products, it is suitable for use by electrical distributors and switchgear suppliers requiring high-quality wire and cable connectors. The lug is ideal for applications in lighting solutions and general electrical wiring where secure, conductive connections are essential.
Specifications
- Material: High Conductivity Copper
- Color Coding: Brown
- Inside Diameter: .315 inches
- Outside Diameter: .422 inches
- Stud Size: 3/8 inch
- Wire Size: #2 AWG
- Temperature Rating: 90°C
- Voltage Rating: 35 KV
- Certifications: UL486A, cUL, RoHS Compliant
- Product Weight: 0.0470 lbs
Features
- Manufactured from high strength, high conductivity seamless copper tubing
- Electro-tin plated for enhanced corrosion resistance
- Color coded and marked with die size and crimp marks for easy identification
- Equipped with a peep hole for inspection of cable insertion
- Single-hole stud configuration for secure attachment
