Morris Products
Copper Short Barrel 1 Hole Compression Lugs #2 Awg 1/2 Stud
SKU: #278482
Part: #94039
UPC: 601986940399
Morris Products
Copper Short Barrel 1 Hole Compression Lugs #2 Awg 1/2 Stud
SKU: #278482
Part: #94039
UPC: 601986940399
Description
Copper Short Barrel 1 Hole Compression Lugs #2 Awg 1/2 Stud - Compression Connectors

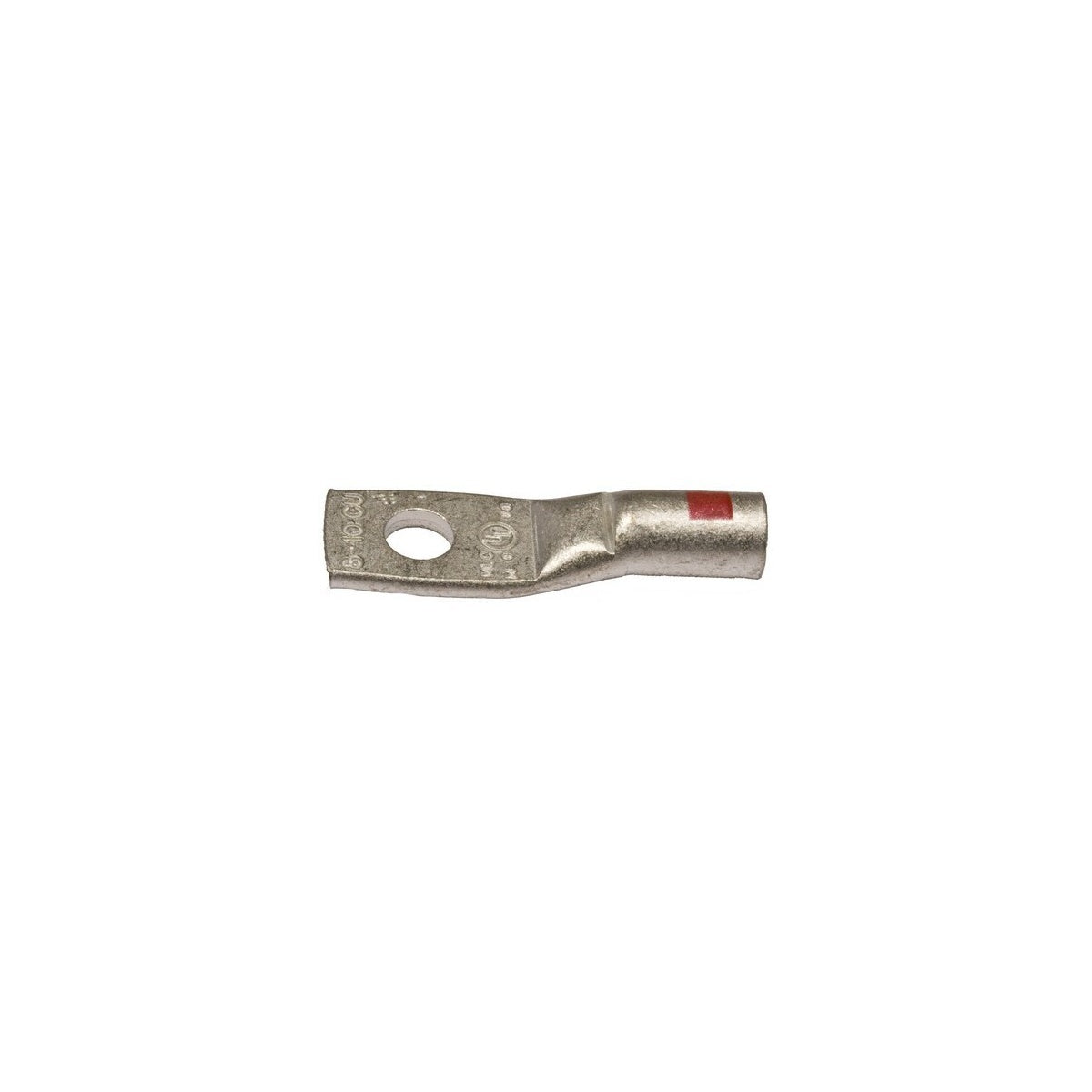

This Copper Short Barrel 1 Hole Compression Lug is designed for fast, reliable electrical cable terminations. Manufactured from high conductivity seamless copper tubing with electro-tin plating, it provides durable and efficient connectivity for electrical distributors, lighting solutions, wire and cable, and switchgear suppliers. The lug is suitable for use with #2 AWG wire and a 1/2 inch stud size, ensuring compatibility with a range of electrical installations.
Specifications
- Material: High Conductivity Copper
- Color Coding: Brown
- Inside Diameter: .315 inches
- Outside Diameter: .422 inches
- Temperature Rating: 90° C
- Voltage Rating: 35 KV
- Stud Configuration: 1 Hole
- Product Weight: 0.1430 lbs
- Manufacturer: Morris Products
- Manufacturer Part #: 94039
Features
- Manufactured from high strength, high conductivity seamless copper tubing
- Electro-tin plated for corrosion resistance
- Color coded and marked with die size and crimp marks for easy identification
- Peep hole for inspection of cable insertion
