Morris Products
Copper Short Barrel 1 Hole Compression Lugs #1 Awg 1/2 Stud
SKU: #278519
Part: #94047
UPC: 601986940474
Morris Products
Copper Short Barrel 1 Hole Compression Lugs #1 Awg 1/2 Stud
SKU: #278519
Part: #94047
UPC: 601986940474
Description

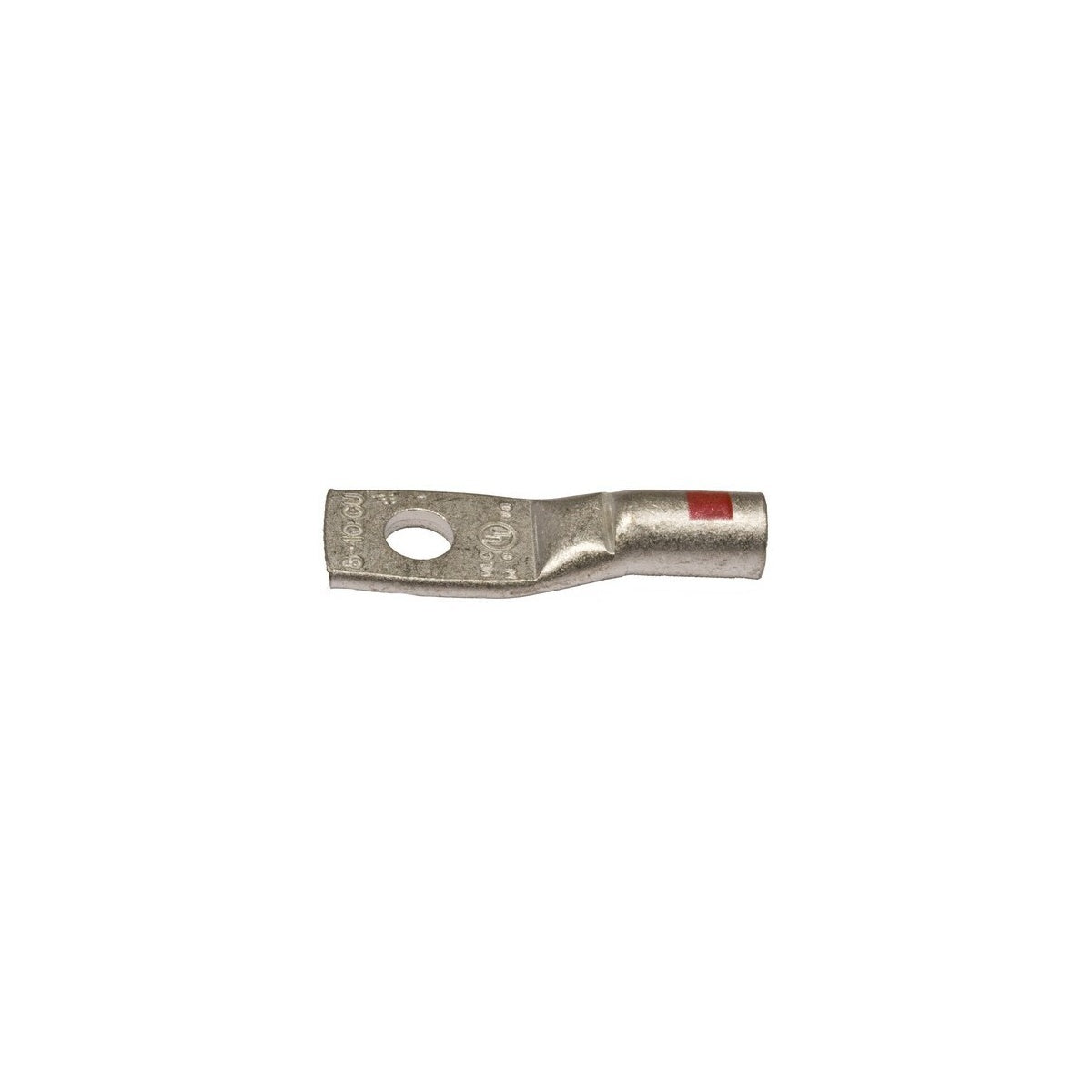

Copper Short Barrel 1 Hole Compression Lugs #1 Awg 1/2 Stud – Electrical Connector
This copper short barrel 1 hole compression lug is designed for fast, reliable electrical cable terminations. Manufactured by Morris Products, it serves as a durable connector suitable for electrical distributors and wire and cable applications requiring secure terminations. The lug is made from high conductivity seamless copper tubing with electro-tin plating, ensuring optimal electrical performance and corrosion resistance.
Specifications
- Material: High Conductivity Copper
- Stud Configuration: 1 Hole
- Inside Diameter: .359 inches
- Outside Diameter: .469 inches
- Temperature Rating: 90°C
- Voltage Rating: 35 KV
- Product Weight: 1.5 lbs
- Manufacturer: Morris Products
- Manufacturer Part #: 94047
- Color: Green
Features
- Manufactured from high strength, high conductivity seamless copper tubing
- Electro-tin plated for enhanced corrosion resistance
- Color coded and marked with die size and crimp marks for easy identification
- Includes peep hole for visual inspection of cable insertion
