Morris Products
Copper Short Barrel 1 Hole Compression Lugs 1/0 Awg 3/8 Stud
SKU: #278527
Part: #94054
UPC: 601986940542
Morris Products
Copper Short Barrel 1 Hole Compression Lugs 1/0 Awg 3/8 Stud
SKU: #278527
Part: #94054
UPC: 601986940542
Description

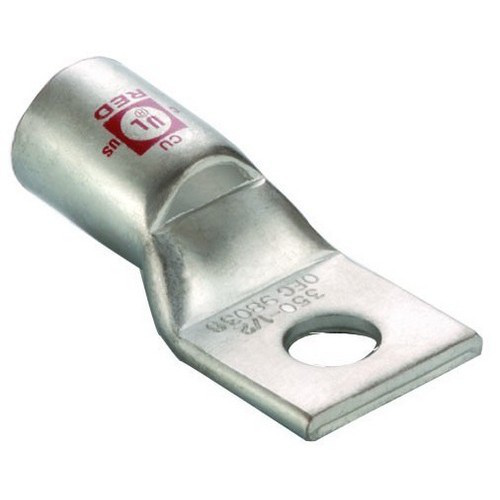

Copper Short Barrel 1 Hole Compression Lugs 1/0 Awg 3/8 Stud - Electrical Wire Connector
This Copper Short Barrel 1 Hole Compression Lug is designed for fast and reliable electrical cable terminations, suitable for use by electrical distributors and switchgear suppliers. It is ideal for applications requiring secure connections in wire and cable installations, particularly in lighting solutions and general electrical wiring.
Specifications
- Material: High Conductivity Copper
- Color Coding: Pink
- Inside Diameter: .390 inches
- Outside Diameter: .520 inches
- Stud Configuration: 1 Hole
- Stud Size: 3/8 inch
- Wire Size: 1/0 Stranded
- Temperature Rating: 90°C
- Voltage Rating: 35 KV
- Material Treatment: Electro-Tin Plating
- Certifications: UL486A, cUL, RoHS Compliant
- Product Weight: 0.0830 lbs
Features
- Manufactured from high strength, high conductivity seamless copper tubing
- Electro-tin plated for enhanced corrosion resistance
- Color coded and marked with die size and crimp marks for easy identification
- Includes peep hole for inspection of proper crimping
- Designed for secure and reliable cable terminations
