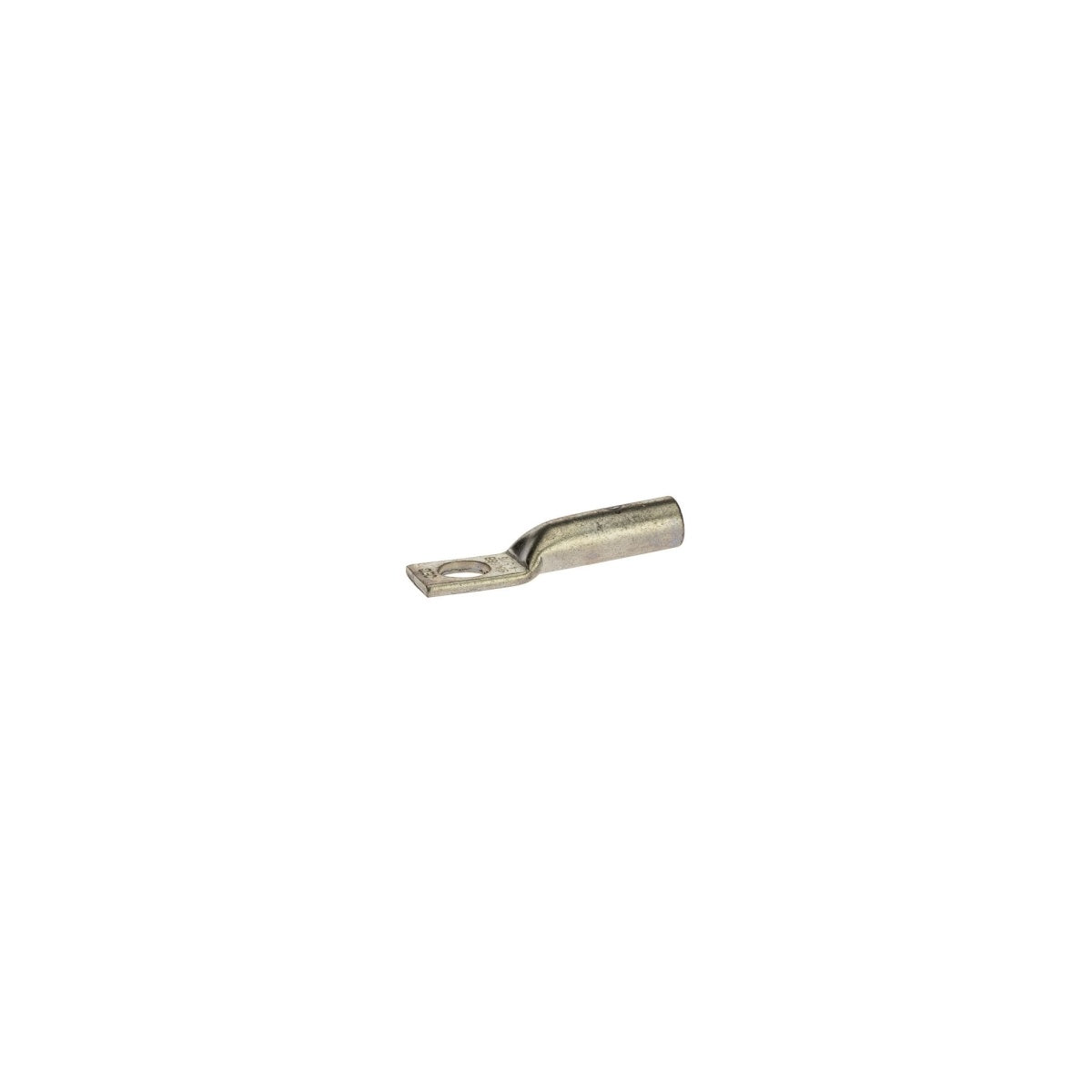

Copper Red Compression Long Lug, 8 AWG, 3/8" Mount
SKU: #305315
Part: #L838
UPC: 662381336293
Copper Red Compression Long Lug, 8 AWG, 3/8" Mount
SKU: #305315
Part: #L838
UPC: 662381336293
Next day delivery
Description
Copper Red Compression Long Lug, 8 AWG, 3/8" Mount - Compression Connector
The NSI Copper Red Compression Long Lug is designed for terminating, splicing, and tapping power connectors in electrical distribution systems. This compression lug is suitable for wire and cable applications requiring reliable mechanical and electrical connections. Manufactured from tin-plated copper, it offers enhanced conductivity and corrosion resistance, making it appropriate for use by electrical distributors and switchgear suppliers in secondary power distribution, industrial settings, and electrical equipment installations.
Specifications
- Manufacturer: NSI Industries
- Manufacturer Part #: L838
- Material: Copper
- Finish: Tin-Plated
- Color: Red
- Cable Size: #8 AWG (STR)
- Mounting Hole: 3/8 inch
- Number of Holes: 1
- Length: 1.52 in
- Width: 0.57 in
- Height: 0.27 in
- Maximum Temperature: 194 degrees Fahrenheit (90 °C)
- Order Minimum: 1 piece
- Country of Origin: India
- Voltage Rating: 600V
- UL Listings: UL486A Wire Connector, UL467 Grounding & Bonding (8 AWG - 3/0 AWG)
Features
- Constructed from high conductivity copper tubing
- Tin-plated surface reduces corrosion and contact resistance
- Legible die index and red color-coding for easy identification
- Closed barrel design sealed against moisture and contamination
- Creates vibration-resistant, mechanically strong homogeneous connection when crimped
- Suitable for secondary power distribution in buildings, power plants, and industrial applications
- Listed for 35KV maximum voltage when installed per cable manufacturer instructions
