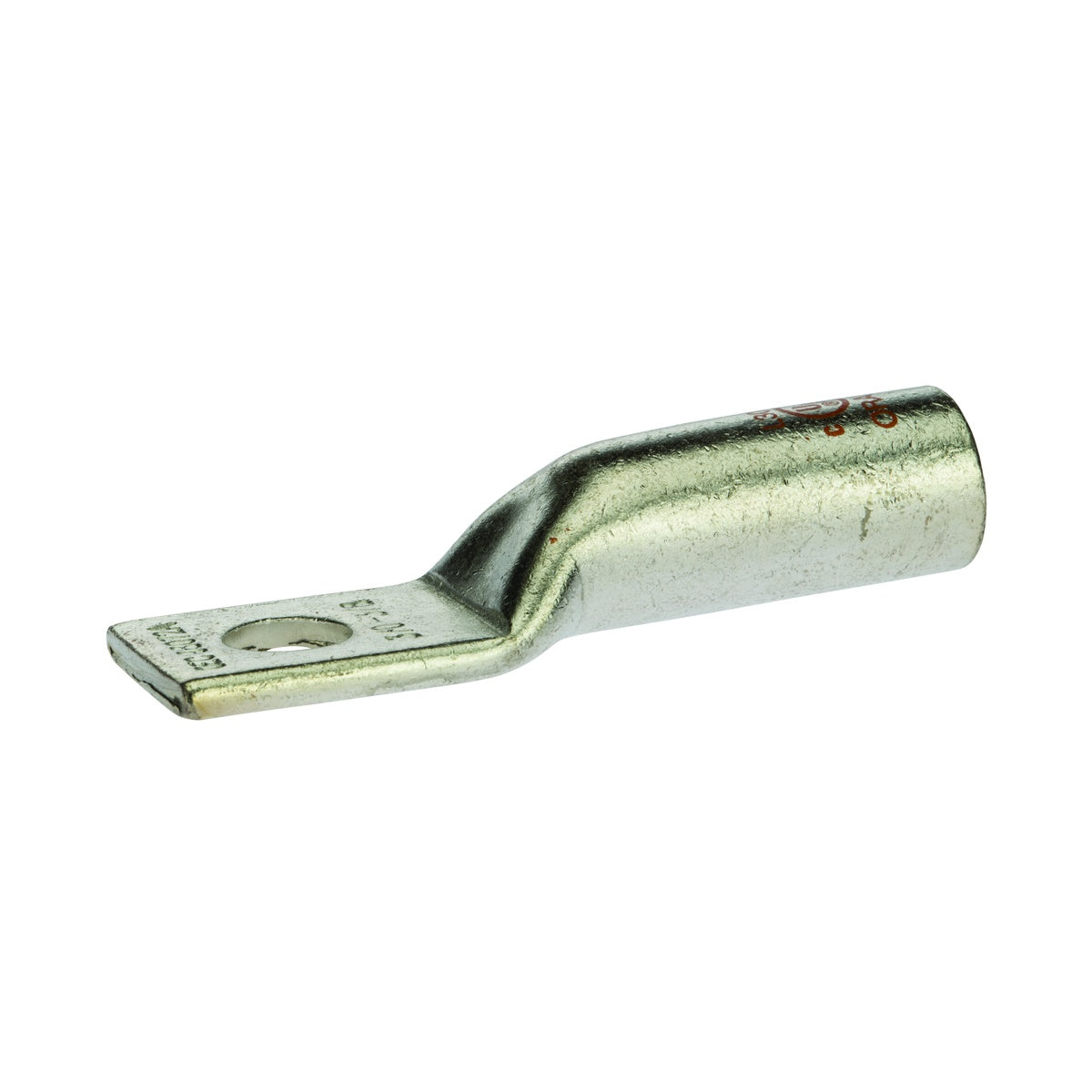

Copper Orange Compression Long Lug, 3/0 AWG, 3/8” Mount
SKU: #305289
Part: #L3038
UPC: 662381034106
Copper Orange Compression Long Lug, 3/0 AWG, 3/8” Mount
SKU: #305289
Part: #L3038
UPC: 662381034106
Description
Copper Orange Compression Long Lug, 3/0 AWG, 3/8” Mount – Compression Connector
The Copper Orange Compression Long Lug by NSI Industries is designed for terminating, splicing, and tapping power connectors in electrical distribution systems. This copper compression lug is suitable for secondary power distribution in buildings, power plants, industrial applications, and electrical equipment. It is an ideal component for electrical distributors and switchgear suppliers requiring reliable wire and cable connections with corrosion resistance and mechanical strength.
Specifications
- Material: Copper
- Finish: Tin-Plated
- Color: Orange
- Cable Size: 3/0 AWG (STR)
- Mounting: 3/8 Mounting Hole
- Number of Holes: 1
- Length: 2.8 in
- Width: 0.9 in
- Height: 0.62 in
- Max Temperature: 194 degrees Fahrenheit (90 °C)
- Product Weight: 2.3750 (units not specified)
- Manufacturer Part #: L3038
- Country of Origin: India
- UL Listings: UL486A Listed Wire Connector, UL467 Grounding & Bonding (Sizes 8 AWG - 3/0 AWG)
- Voltage Rating: 600V
Features
- Constructed from high conductivity copper tubing for improved electrical performance
- Tin-plated finish provides corrosion resistance and low contact resistance
- Chamfered port designed to terminate 3/0 AWG conductors
- Legible die index and orange color-coding for easy identification
- Closed barrel design ensures a moisture- and contamination-resistant connection
- Creates a vibration-resistant, mechanically strong homogeneous bond when crimped
- Listed for 35KV max when installed according to cable manufacturer instructions
- Part numbers ending in “P” include a sight inspection (peep) hole
