Morris Products

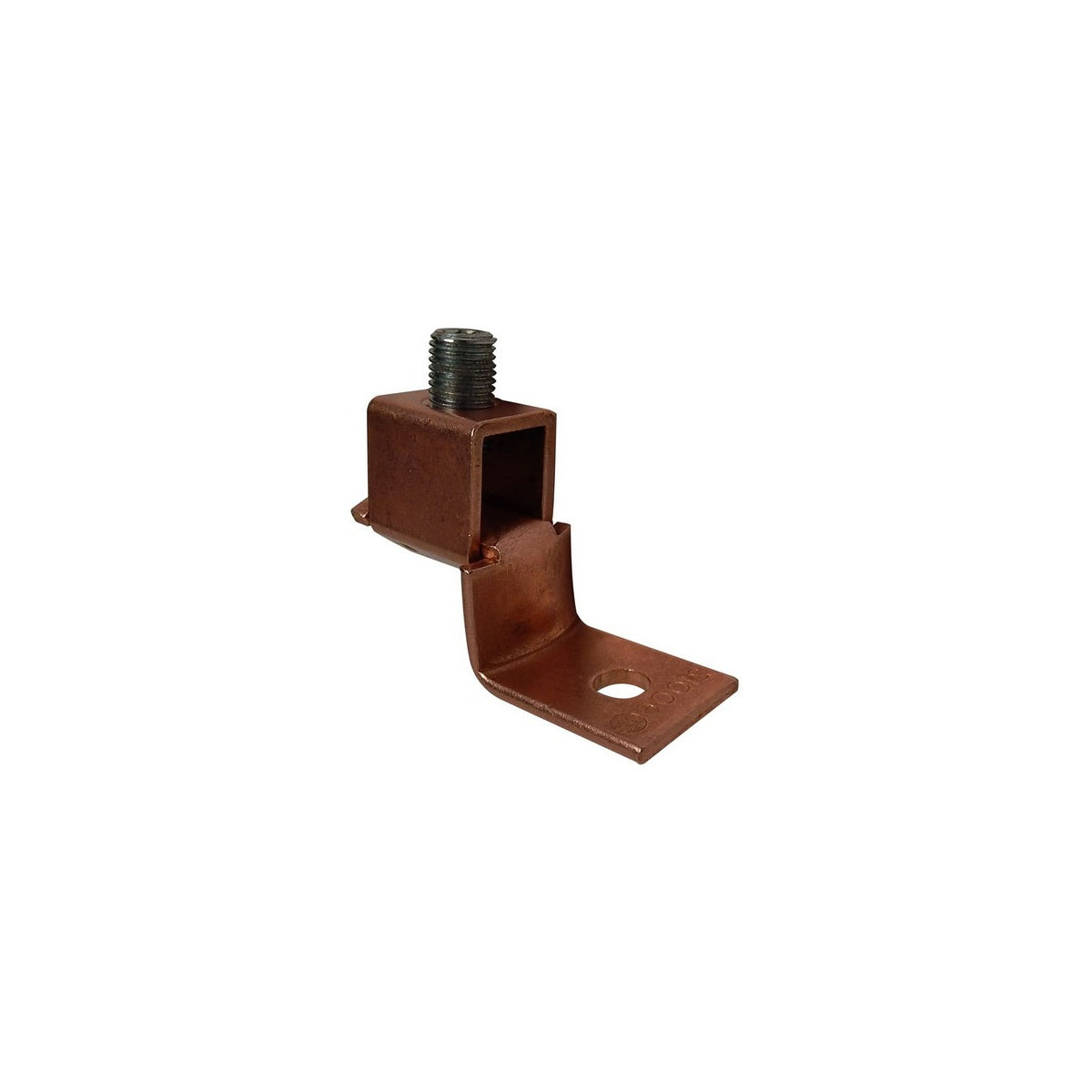

Copper Mechanical Single Offset Connectors 90A
SKU: #276568
Part: #90516
UPC: 601986905169
Morris Products
Copper Mechanical Single Offset Connectors 90A
SKU: #276568
Part: #90516
UPC: 601986905169
Description
Copper Mechanical Single Offset Connectors 90A – Copper Mechanical Lug
The Copper Mechanical Single Offset Connector 90A by Morris Products is designed for secure and efficient electrical connections in wire and cable installations. This copper mechanical lug features an offset tang and a one conductor, one hole configuration, making it suitable for electrical distributors and switchgear suppliers requiring reliable copper conductor terminations. Its high conductivity copper alloy construction ensures optimal electrical performance in lighting solutions and other electrical distribution applications.
Specifications
- Material: Extruded Copper Alloy
- Rating: 90A
- Wire Range: #2 - 8 AWG
- Voltage Rating: 600 V
- Temperature Rating: 90°C
- Screw Type: Steel Plated Hex Head
- Dimensions (L × W × H): 1.22 in × 0.5 in × 1.0 in
- Product Weight: 0.0660 lb
- UPC: 601986905169
- Manufacturer Part #: 90516
- Certifications: UL 486A, CSA, RoHS Compliant
Features
- Manufactured from high strength, high conductivity copper alloy
- Rated specifically for copper conductors
- Offset tang design for improved fit and connection
- One conductor, one hole configuration for straightforward installation
