Morris Products
Copper Mechanical Single Offset Connectors 70A
SKU: #276566
Part: #90515
UPC: 601986905152
Morris Products
Copper Mechanical Single Offset Connectors 70A
SKU: #276566
Part: #90515
UPC: 601986905152
Description

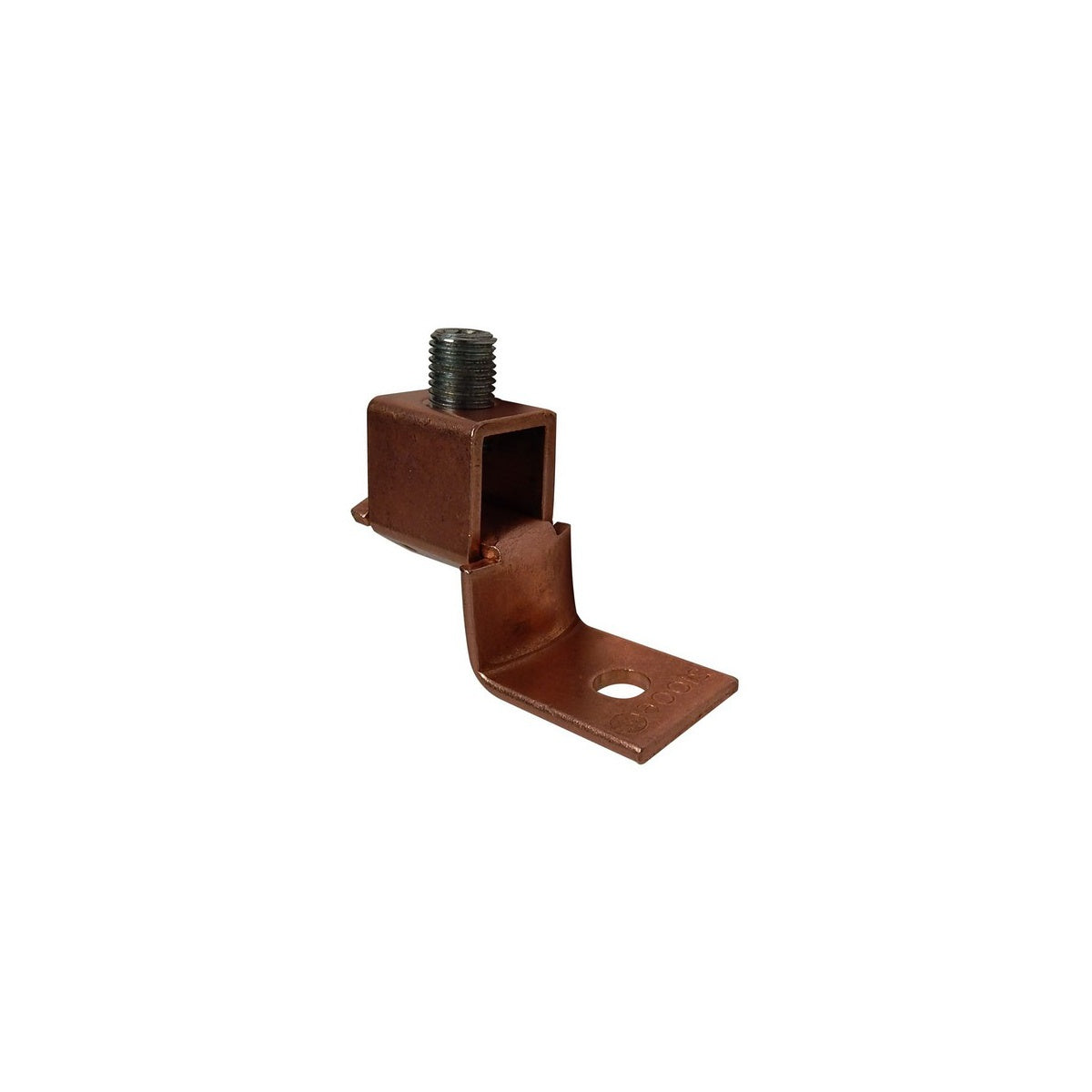

Copper Mechanical Single Offset Connectors 70A – Copper Mechanical Lug
This Copper Mechanical Single Offset Connector is designed for secure electrical connections in wire and cable applications. Manufactured by Morris Products, it serves as a reliable component for electrical distributors and switchgear suppliers requiring high conductivity copper connectors rated for copper conductors. Its offset tang design facilitates effective connection in various electrical systems.
Specifications
- Material: Extruded Copper Alloy
- Voltage Rating: 600 V
- Temperature Rating: 90°C
- Amp Rating: 70A
- Wire Range: #4 - 14 AWG
- Dimensions (L x W x H): 1.31 in x 0.5 in x 0.81 in
- Screw Type: Steel Plated Hex Head
- Product Weight: 0.0470 lbs
- UPC: 601986905152
- Manufacturer Part #: 90515
Features
- Manufactured from high strength, high conductivity copper alloy
- Rated specifically for copper conductors
- One conductor, one hole configuration for simplified installation
- Offset tang design for efficient mechanical connection
