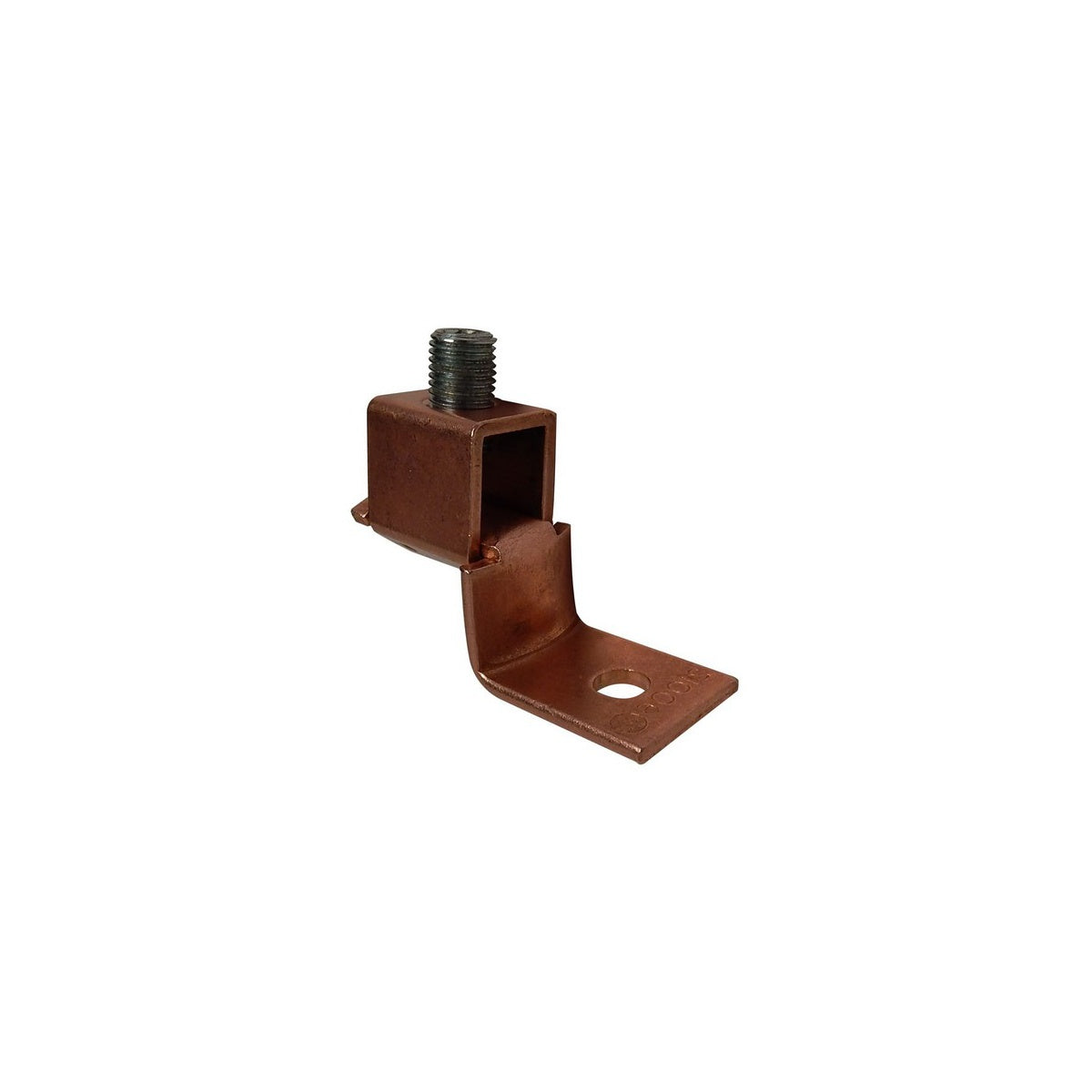

Copper Mechanical Single Offset Connectors 400A – Electrical Connectors

This copper mechanical single offset connector is designed for secure electrical connections in wire and cable applications. Manufactured by Morris Products, it is suitable for use by electrical distributors and switchgear suppliers requiring reliable copper conductor connections with high conductivity and mechanical strength.

Specifications

• Material: Extruded Copper Alloy
• Rating: 400A
• Wire Range: 500 MCM - 4/0
• Voltage Rating: 600V
• Temperature Rating: 90¬∞C
• Dimensions (L x W x H): 4.25 in x 1.5 in x 2.75 in
• Screw Type: Steel Plated Hex Head
• Product Weight: 1.1250 lbs
• Certifications: UL 486A, CSA, RoHS Compliant

Features

• Manufactured from high strength, high conductivity copper alloy
• Rated specifically for copper conductors
• One conductor, one hole configuration for easy installation
• Offset tang design for flexible connection arrangements
