Morris Products
Copper Mechanical Single Offset Connectors 35A
SKU: #276559
Part: #90514
UPC: 601986905145
Morris Products
Copper Mechanical Single Offset Connectors 35A
SKU: #276559
Part: #90514
UPC: 601986905145
Description

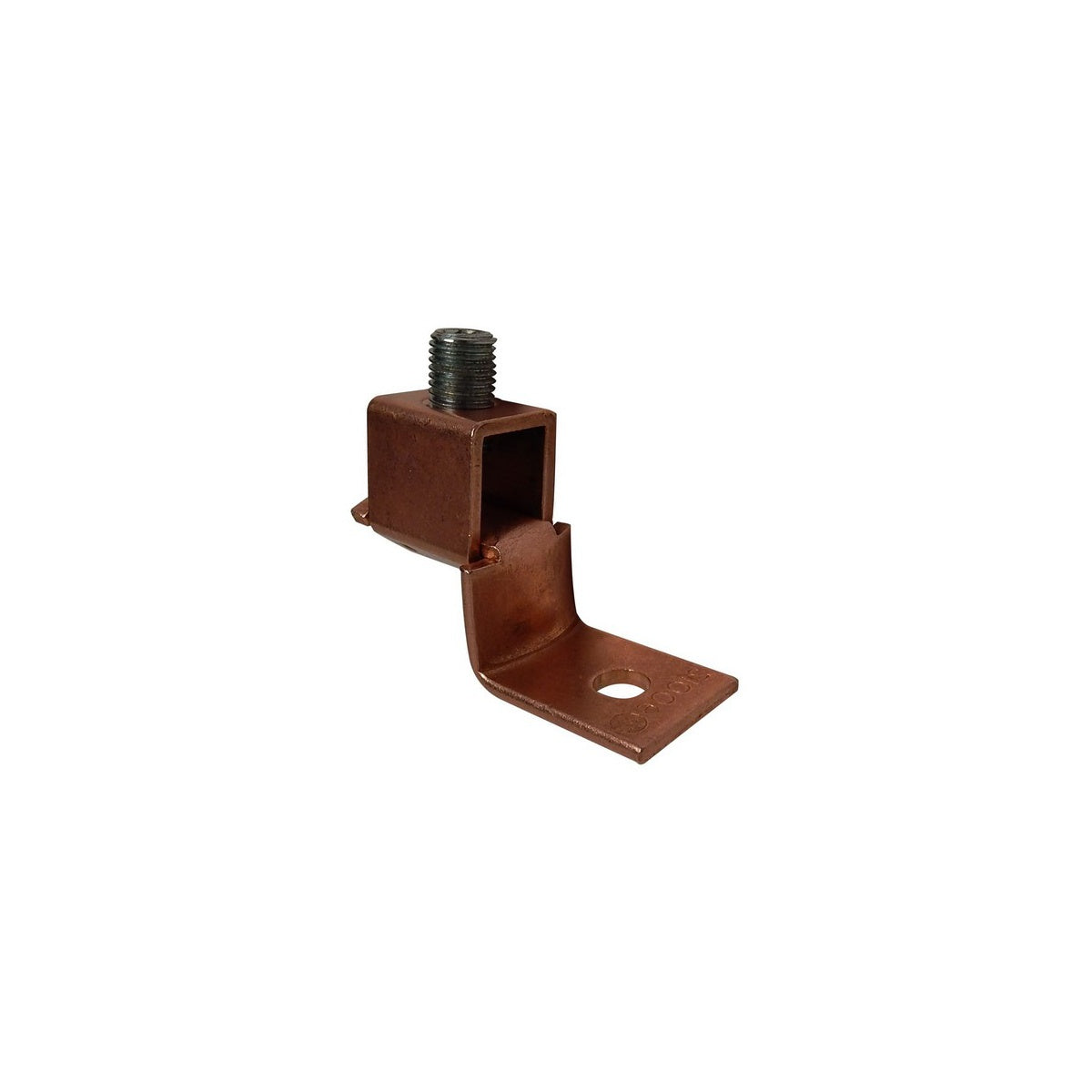

Copper Mechanical Single Offset Connectors 35A – Copper Mechanical Lug
The Copper Mechanical Single Offset Connectors 35A by Morris Products are designed for reliable electrical connections in wire and cable applications. These copper mechanical lugs provide secure conductor termination with an offset tang configuration, suitable for electrical distributors and switchgear suppliers requiring durable and high-conductivity connectors.
Specifications
- Material: Extruded Copper Alloy
- Temperature Rating: 90°C
- Voltage Rating: 600V
- Amp Rating: 35A (to conductor)
- Wire Range: #6 to #14 AWG
- Screw Type: Steel Plated Hex Head
- Dimensions (L x W x H): 1.19 in x 0.38 in x 0.75 in
- Product Weight: 0.0380 lbs
- Certifications: UL 486A, CSA, RoHS Compliant
Features
- Manufactured from high strength, high conductivity copper alloy
- Rated specifically for copper conductors
- One conductor, one hole configuration for straightforward installation
- Offset tang design for versatile mechanical connection
