Morris Products
Copper Mechanical Single Offset Connectors 300A
SKU: #276583
Part: #90524
UPC: 601986905244
Morris Products
Copper Mechanical Single Offset Connectors 300A
SKU: #276583
Part: #90524
UPC: 601986905244
Description

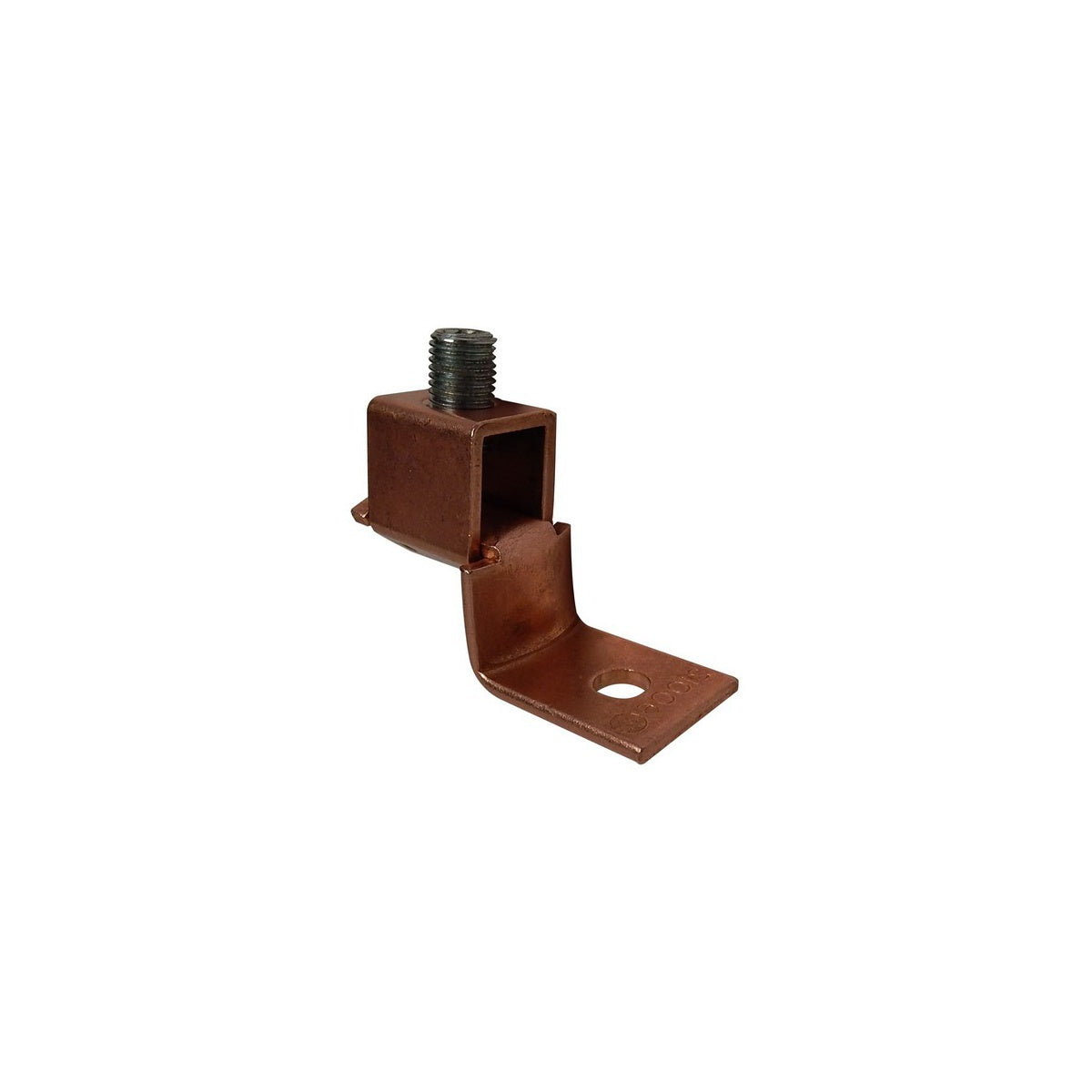

Copper Mechanical Single Offset Connectors 300A – Electrical Connectors
The Copper Mechanical Single Offset Connectors 300A by Morris Products are designed for reliable electrical connections in wire and cable installations. These connectors are suitable for use by electrical distributors and switchgear suppliers requiring robust copper mechanical lugs with an offset tang configuration. They provide secure connections for copper conductors, supporting amp ratings up to 300A and voltage ratings up to 600V.
Specifications
- Material: Extruded Copper Alloy
- Rating: 300A
- Wire Range: 350 MCM - 1/0 AWG
- Voltage Rating: 600V
- Temperature Rating: 90°C
- Screw Type: Steel Plated Hex Head
- Dimensions (L x W x H): 3.19 in x 1.00 in x 2.63 in
- Product Weight: 0.7220 lbs
- Certifications: UL 486A, CSA, RoHS Compliant
Features
- Manufactured from high strength, high conductivity copper alloy
- Rated specifically for copper conductors
- One conductor, one hole configuration for ease of installation
- Offset tang design for versatile connection applications
