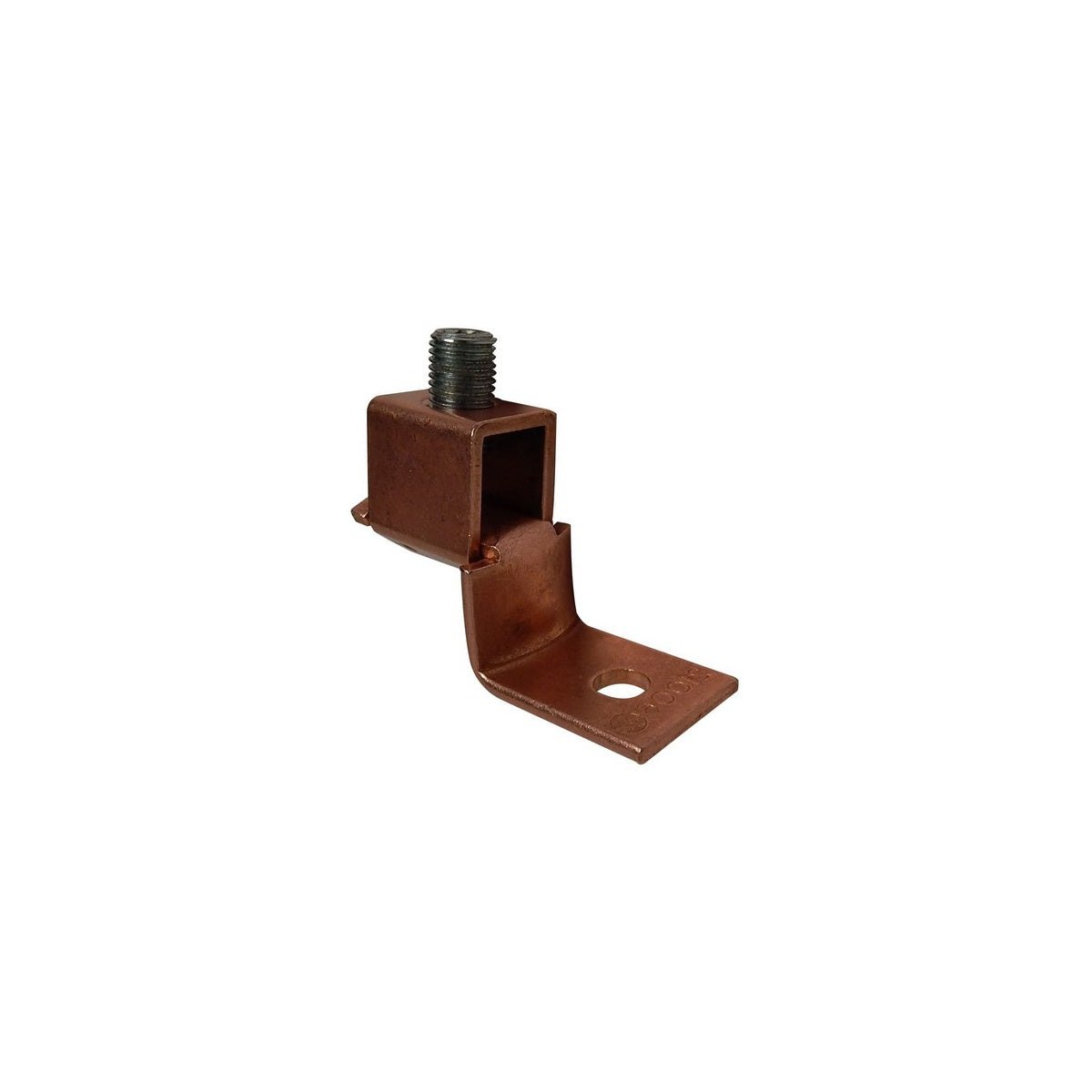

Copper Mechanical Single Offset Connectors 225A
SKU: #276578
Part: #90522
UPC: 601986905220
Copper Mechanical Single Offset Connectors 225A
SKU: #276578
Part: #90522
UPC: 601986905220
Total Price: $10.90 per piece Sold in increments of 1 piece
Description
Copper Mechanical Single Offset Connectors 225A – Copper Electrical Connector
The Copper Mechanical Single Offset Connectors 225A by Morris Products are designed for reliable electrical connections in wire and cable applications. These connectors are suitable for use by electrical distributors and switchgear suppliers requiring durable copper mechanical lugs with an offset tang configuration. They accommodate copper conductors and are rated for up to 225 amps, making them appropriate for various industrial and commercial electrical installations.
Specifications
- Material: Extruded Copper Alloy
- Rating: 225A
- Wire Range: 4/0 - 2 AWG
- Voltage Rating: 600 V
- Temperature Rating: 90°C
- Length: 2.63 in
- Width: 1.00 in
- Height: 1.81 in
- Screw Type: Steel Plated Hex Head
- UPC: 601986905220
- Manufacturer Part #: 90522
- Product Weight: 0.3560 lb
- Certifications: UL 486A, CSA, RoHS Compliant
Features
- Manufactured from high strength, high conductivity copper alloy
- Rated specifically for copper conductors
- One conductor, one hole configuration for secure connections
- Offset tang design for mechanical stability and ease of installation
