Morris Products
Copper Mechanical Single Offset Connectors 175A
SKU: #276574
Part: #90520
UPC: 601986905206
Morris Products
Copper Mechanical Single Offset Connectors 175A
SKU: #276574
Part: #90520
UPC: 601986905206
Next day delivery
Description

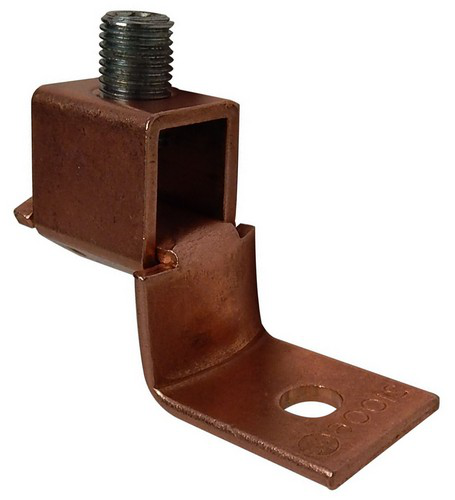

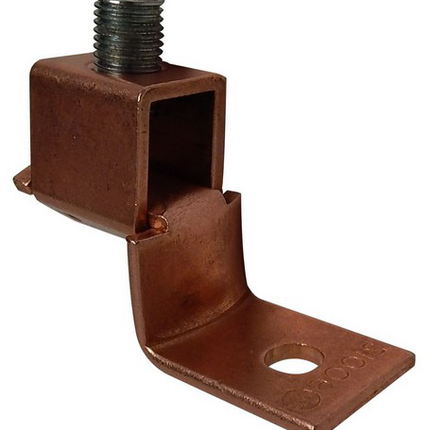

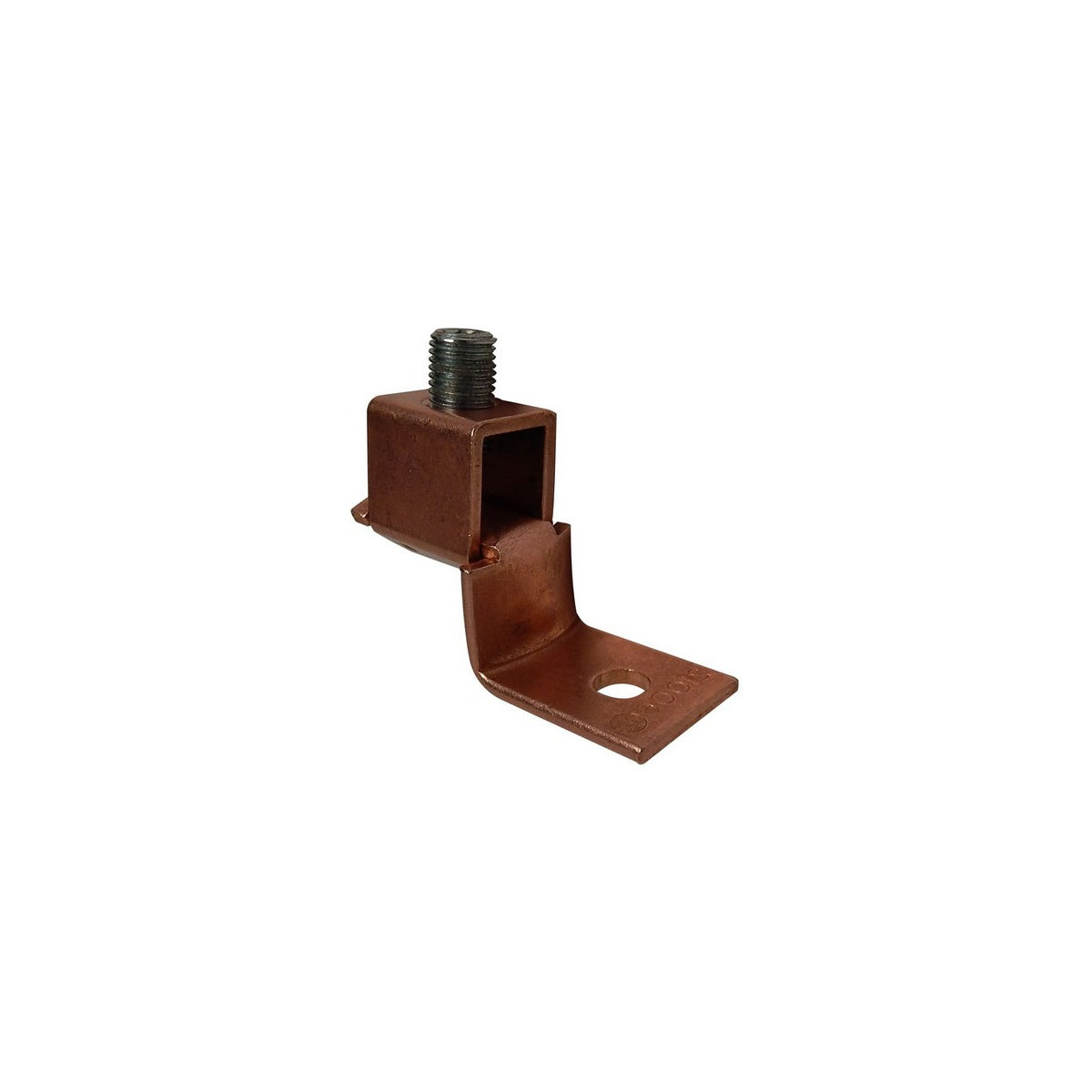

Copper Mechanical Single Offset Connectors 175A – Copper Mechanical Lug
The Copper Mechanical Single Offset Connector 175A by Morris Products is designed for reliable electrical connections in wire and cable applications. Manufactured from high strength, high conductivity extruded copper alloy, this connector is rated for copper conductors and suitable for use by electrical distributors and switchgear suppliers requiring durable, efficient lug solutions. Its offset tang design facilitates secure mechanical connections in electrical systems.
Specifications
- Manufacturer Part #: 90520
- Material: Copper (Extruded Copper Alloy)
- Rating: 175A
- Wire Range: 3/0 - 4 AWG
- Voltage Rating: 600 V
- Temperature Rating: 90°C
- Length: 2.19 in
- Width: 0.75 in
- Height: 1.56 in
- Screw Type: Steel Plated Hex Head
- Product Weight: 0.2630 lb
- Certifications: UL 486A, CSA, RoHS Compliant
Features
- Manufactured from high strength, high conductivity copper alloy
- Rated specifically for copper conductors
- One conductor, one hole configuration for secure connections
- Offset tang design for mechanical stability
