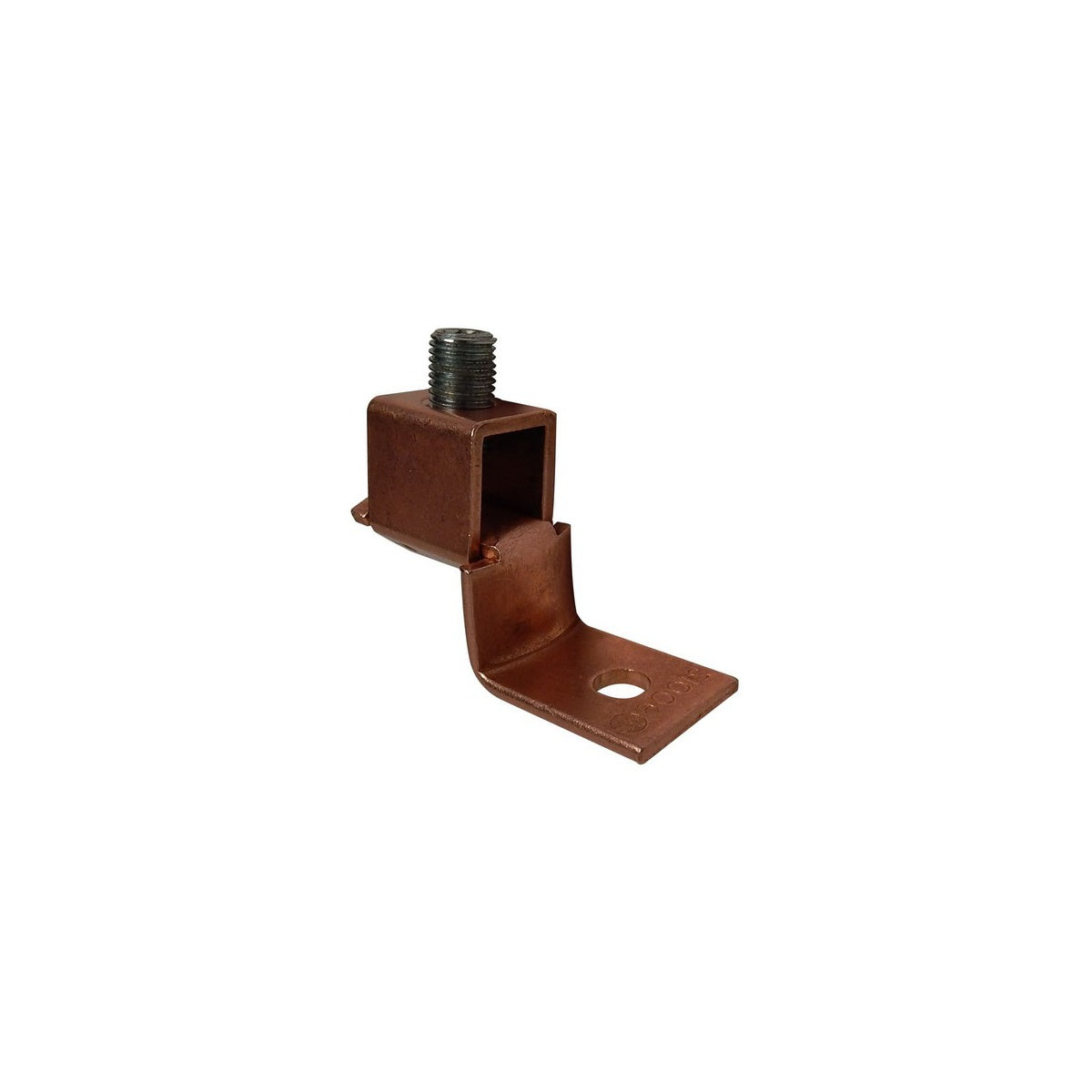

Copper Mechanical Single Offset Connectors 125A – Copper Electrical Connectors

The Copper Mechanical Single Offset Connectors 125A by Morris Products are designed for secure electrical connections in wire and cable applications. These connectors feature an offset tang and a one conductor, one hole configuration, making them suitable for use in electrical distribution and lighting solutions where reliable copper conductor connections are required. As a component supplied by a switchgear supplier, they ensure compatibility with copper conductors rated up to 125 amps.

Specifications

• Material: Extruded Copper Alloy
• Voltage Rating: 600 V
• Temperature Rating: 90¬∞C
• Amp Rating: 125 A
• Wire Range: 1/0 - 2 AWG
• Dimensions (L x W x H): 1.97 in x 0.63 in x 1.34 in
• Screw Type: Steel Plated Hex Head
• UPC: 601986905183
• Manufacturer Part #: 90518
• Certifications: UL 486A, CSA, RoHS Compliant
• Product Weight: 0.1410 lb

Features

• Manufactured from high strength, high conductivity copper alloy for optimal electrical performance
• Rated specifically for copper conductors ensuring reliable connectivity
• Offset tang design facilitates installation in confined or offset mounting conditions
• One conductor, one hole configuration simplifies wire termination

Downloads & Links

• Spec Sheet
