Morris Products
Copper Mechanical Lugs Straight Tang #14-#4
SKU: #276555
Part: #90507
UPC: 601986905077
Morris Products
Copper Mechanical Lugs Straight Tang #14-#4
SKU: #276555
Part: #90507
UPC: 601986905077
Description

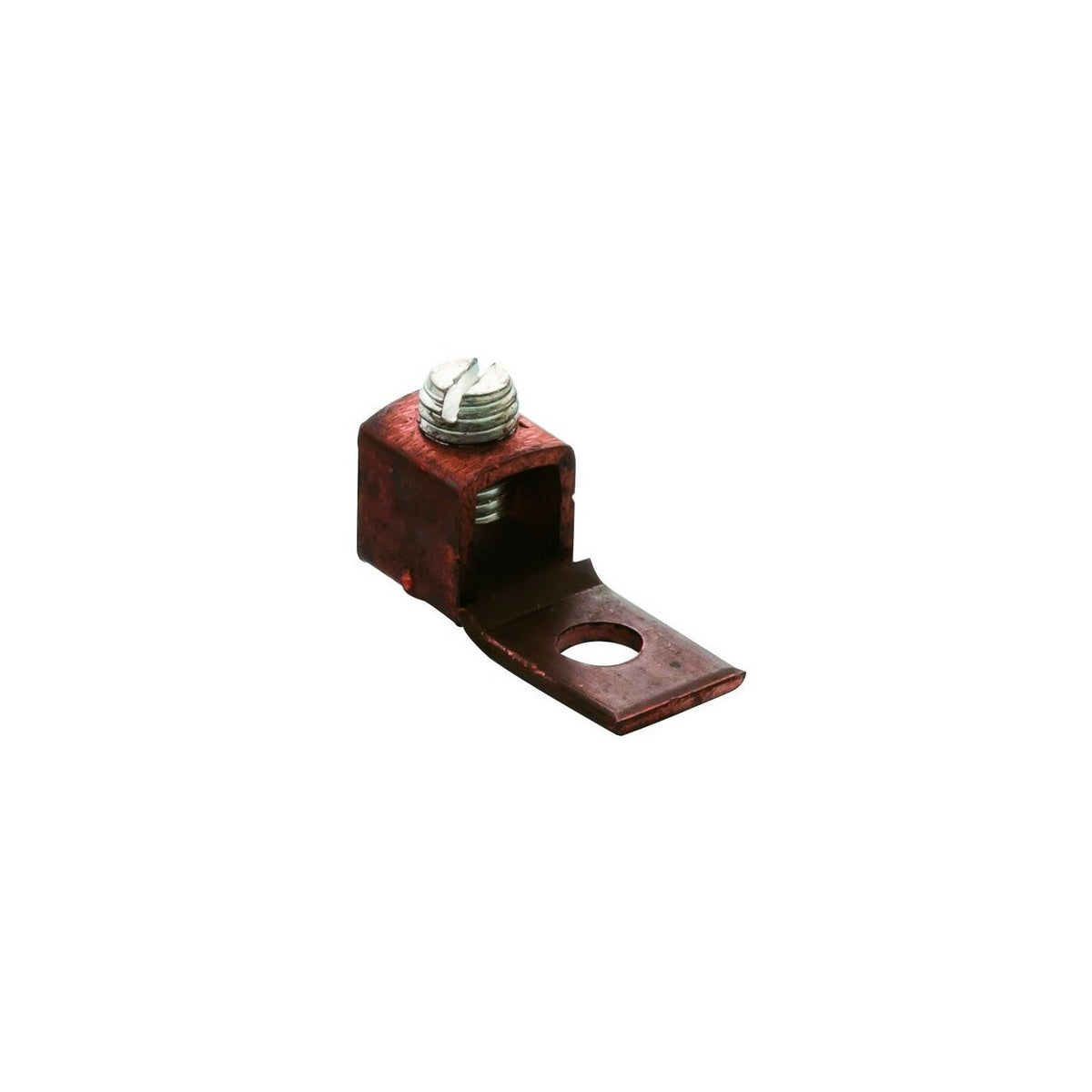

Copper Mechanical Lugs Straight Tang #14-#4 – Copper Electrical Connector
The Copper Mechanical Lugs Straight Tang #14-#4 by Morris Products is designed for efficient copper conductor connections in electrical distribution and wire and cable applications. This product is ideal for electrical distributors and switchgear suppliers requiring reliable copper mechanical connectors with superior conductivity and mechanical strength.
Specifications
- Material: Copper
- Wire Range: #14 to #4 AWG
- Manufacturer Part #: 90507
- Product Weight: 0.5250 lbs
- Voltage Rating: 600 Volts
- Screw Type: Slotted
- Dimensions (Length x Width x Height): 1.075" x 0.444" x 0.45"
- Pad Thickness: 3/32"
- Bolt Size: 5/16"
- Box Quantity: 100
Features
- Solid one-piece copper connector made from stamped electrolytic copper for superior mechanical strength and excellent electrical performance
- Steel slotted screw for secure fastening
- Manufactured from high strength pure electrolytic copper to ensure maximum conductivity and durability
- Rated for use with copper wire only
- Rated 600V for electrical safety
- Copper finish for corrosion resistance
- Easy installation with screwdriver, wrench, or pliers
