Morris Products
Copper Mechanical Lugs #14-#8
SKU: #276601
Part: #90550
UPC: 601986905503
Morris Products
Copper Mechanical Lugs #14-#8
SKU: #276601
Part: #90550
UPC: 601986905503
Description

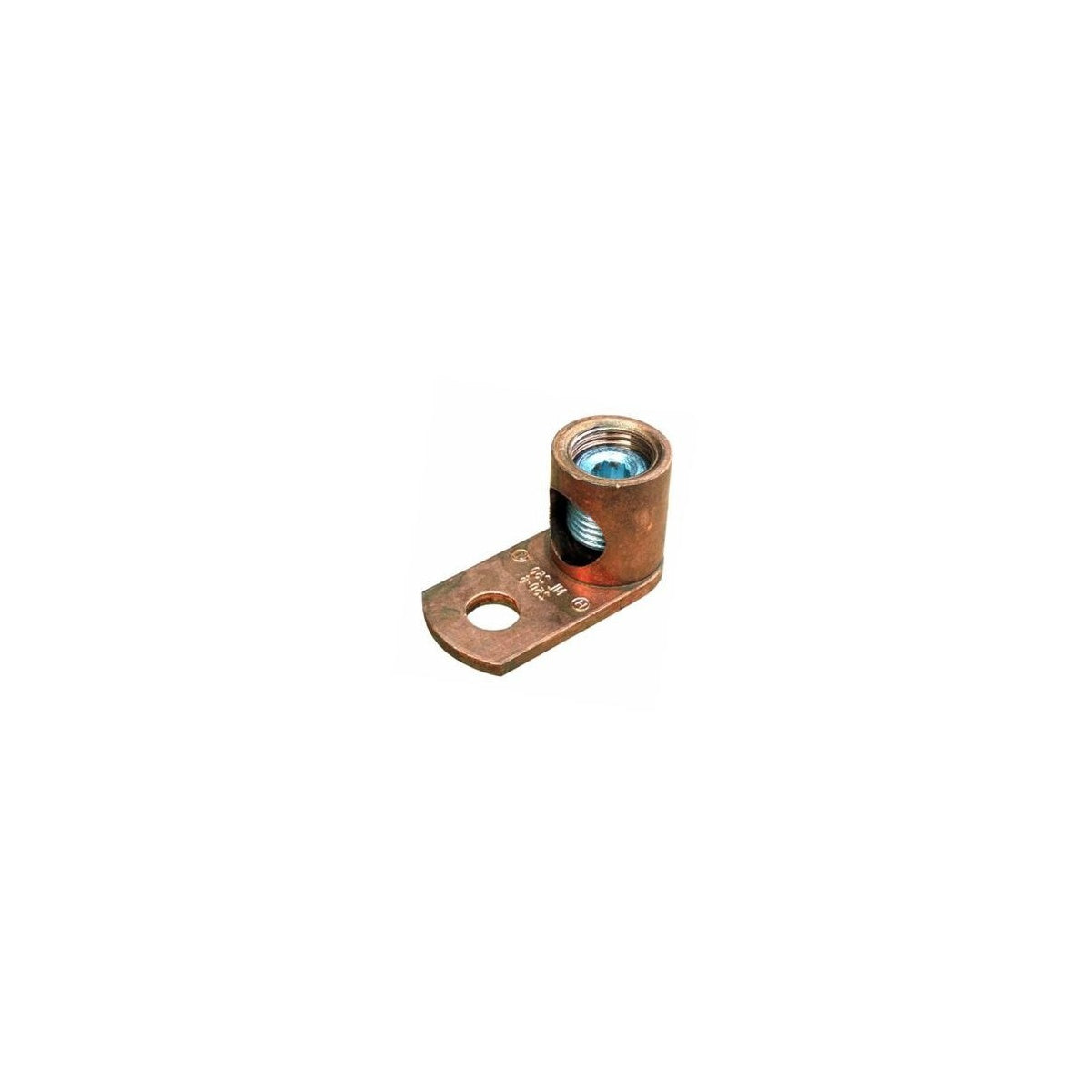

Copper Mechanical Lugs #14-#8 – Electrical Wire Connectors
The Copper Mechanical Lugs #14-#8 are designed for secure and reliable electrical connections in wire and cable installations. Manufactured from high conductivity copper alloy, these lugs are suitable for use by electrical distributors and switchgear suppliers requiring durable connectors rated for copper conductors. Their one conductor, one hole configuration supports a range of wire sizes, making them versatile components in lighting solutions and general electrical wiring applications.
Specifications
- Material: Extruded Copper Alloy
- Screw Type: Steel Plated Hex Head
- Wire Range: #14 – 250 MCM
- Temperature Rating: 90°C
- Voltage Rating: 600 V
- Certification: UL 486A, CSA, RoHS Compliant
- Product Weight: 0.0190 lbs
Features
- Manufactured from high strength, high conductivity copper alloy
- Rated specifically for copper conductors
- One conductor, one hole configuration for ease of installation
