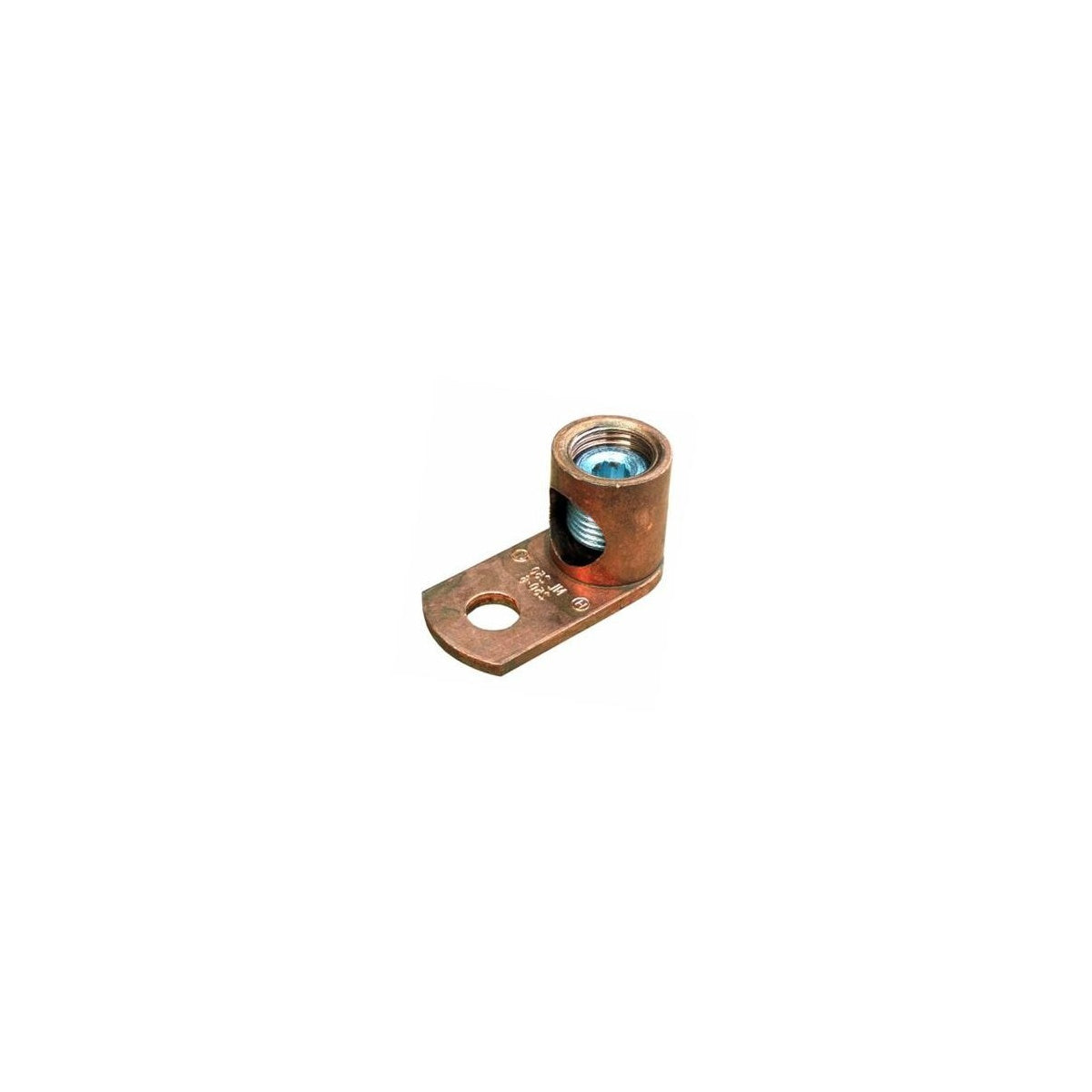

Copper Mechanical Lugs #14-#4 – Electrical Wire and Cable Connector

The Copper Mechanical Lugs #14-#4 by Morris Products are designed for secure and reliable electrical connections in wire and cable applications. Manufactured from high conductivity extruded copper alloy, these lugs are suitable for copper conductors in electrical distribution and lighting solutions. Their one conductor, one hole configuration makes them ideal for use by electrical distributors and switchgear suppliers requiring dependable mechanical connections.

Specifications

• Material: Extruded Copper Alloy
• Screw Type: Steel Plated Hex Head
• Wire Range: #14 – 250 MCM
• Temperature Rating: 90°C
• Voltage Rating: 600V
• Certifications: UL 486A, CSA, RoHS Compliant
• Product Weight: 0.0470 lbs
• Manufacturer Part #: 90552
• UPC: 601986905527

Features

• Manufactured from high strength, high conductivity copper alloy
• Rated specifically for copper conductors
• One conductor, one hole design for efficient installation

Downloads & Links

• Spec Sheet
