Copper Mechanical Lug Offset, Conductor Range 4/0-2, 2 Ports, 1 Hole, 3/8in Bolt Size, UL, CSA
SKU: #258063
Part: #LU-2
UPC: 783669591804
Copper Mechanical Lug Offset, Conductor Range 4/0-2, 2 Ports, 1 Hole, 3/8in Bolt Size, UL, CSA
SKU: #258063
Part: #LU-2
UPC: 783669591804
Description
Copper Mechanical Lug Offset, Conductor Range 4/0-2, 2 Ports, 1 Hole, 3/8in Bolt Size, UL, CSA – Electrical Connector

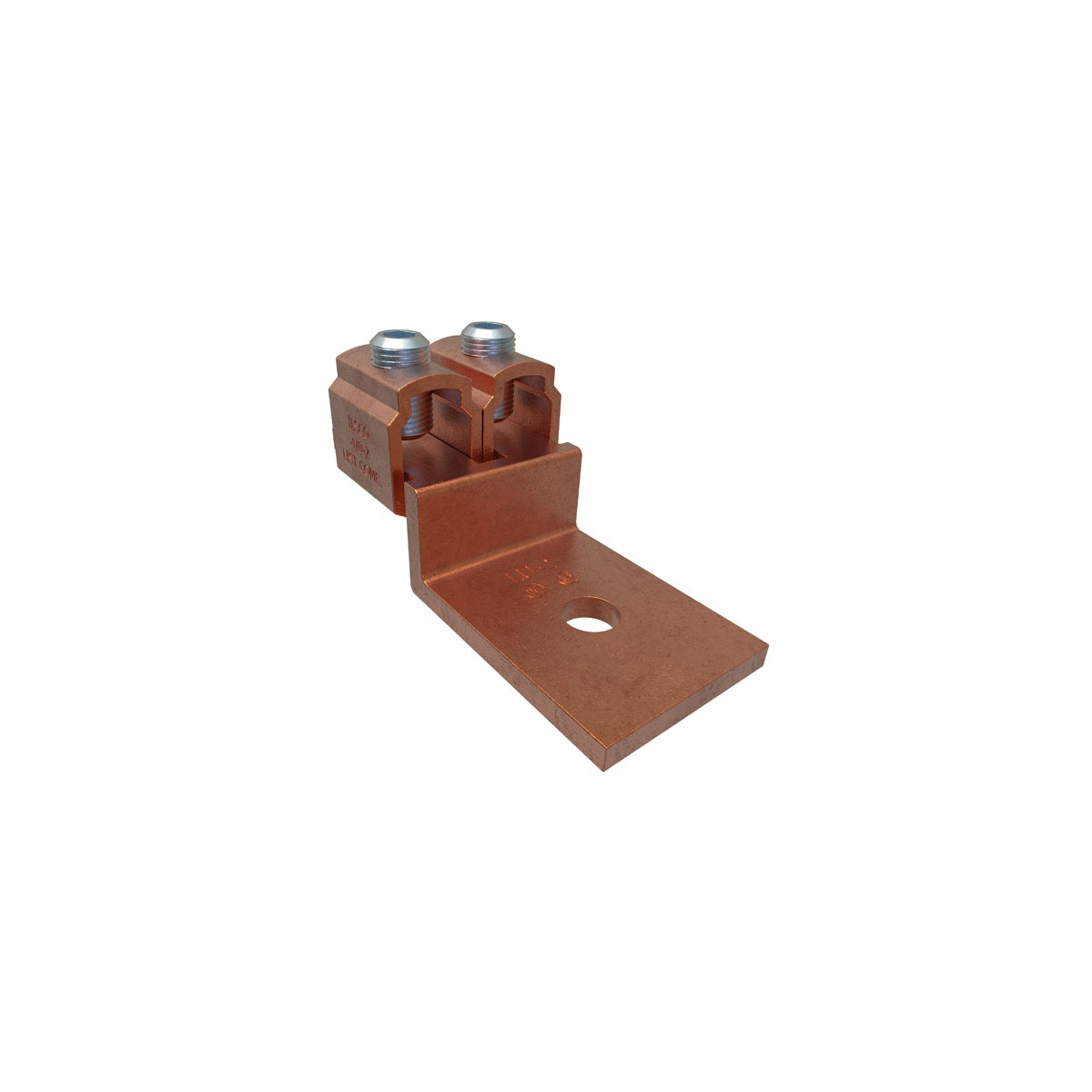

This ILSCO Copper Mechanical Lug is designed for secure mechanical connections in electrical distribution and wire and cable applications. It is suitable for use by electrical distributors and switchgear suppliers requiring reliable copper conductor connections with UL and CSA certifications. The lug supports a conductor range from 4/0 to 2 AWG and is rated for 35 kV, making it appropriate for primary conductor applications.
Specifications
- Manufacturer: ILSCO
- Manufacturer Part #: LU-2
- Material: Copper
- Mounting Holes: 1
- Mounting Bolt/Stud Size: 3/8 in
- Conductor Range: 4/0 Stranded to 2 Stranded Copper
- Number of Conductors: 2
- Number of Ports/Wireways: 2
- Drive Type: Main 7/32 Internal Hex
- Voltage Rating: 35 kV
- Primary Color: Copper
- Poles: 1
- Dimensions (L x W x H): 3.375 in x 1.661 in x 1.5 in
- Product Weight: 0.51 lbs
- Certifications: UL 486A/B Listed, CSA C22.2 No. 65-03
Features
- Mechanical connection ensures reliable electrical contact
- Bright dip plating for corrosion resistance
- Compact offset design facilitates installation in tight spaces
- Internal hex drive type allows secure tightening with standard tools
- UL and CSA listed for safety and compliance in electrical installations
