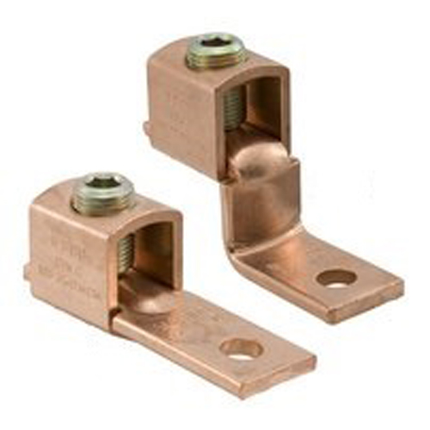

Specifications

• Height: 1.683 in | 42.7482 mm
• Length: 2.594 in | 65.8876 mm
• Weight: 0.213 lbs
• Width: 1 in

Additional Class Attributes

• Collar Style: V-Bottom
• Connection: Mechanical
• Contains DE-OX®: No
• Mounting Hole Type: Thru
• Number of Conductors: 1
• Number of Mounting Holes: 1
• Number of Poles: 1
• Number of Ports / Wireways: 1

Additional Technical Specifications

• Conductor Type: Stranded

Dimensions

• Dimension G (IN): 0.5
• Dimension G (mm): 12.7
• Drive Size Main: 7/32
• Drive Type Main: Internal Hex
• Height BX (IN): 2
• Height (mm): 42.7482
• Length (mm): 65.8876
• Mounting Hole Diameter (IN): 0.344
• Mounting Hole Diameter (mm): 8.7376
• Tang Length (IN): 1.188
• Tang Length (mm): 30.1752
• Tang Offset (IN): 0.795
• Tang Offset (mm): 20.193
• Tang Thickness (IN): 0.125
• Tang Thickness (mm): 3.175
• Tang Width (IN): 1
• Tang Width (mm): 25.4
• Weight BX (LB): 6.2495
• Width BX (IN): 6.1875

Material and Finish

• Conductor Material: Copper
• Material: Copper
• Wire Binding Hardware Finish: Zinc Clear Trivalent Chromate
• Wire Binding Hardware Material: Steel

Bolt and Screw Sizes

• Mounting Bolt/Stud Size: 5/16
• Number of Wire Binding Screws per Port: 1
• Wire Binding Screw Size: 5/8
• Wire Binding Torque: 150

Environment and Temperature

• Temperature Rating: 90°C

Conductor Ranges

• Conductor Range CU Stranded (Primary, run, main, line): 4/0 Str - 2 Str

Color

• Color: Copper

Voltage

• Voltage Rating: 35 kV

Testing Standards

• CSA File Number: LR-29601
• CSA Standard: C22.2 No. 65-03
• Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
• ROHS Indicator: IND
• UL Control Number: 453G
• UL / CULUS Specification: UL 486A/B Listed
• UL File Number: E6207

General

• Bag Quantity: 1
• Carton Quantity Description: STD PACK QTY 25
• Direct Burial: No
• Dual Rated: No
• NEMA Code: S-588-3
• UPC Code: 78366983375
