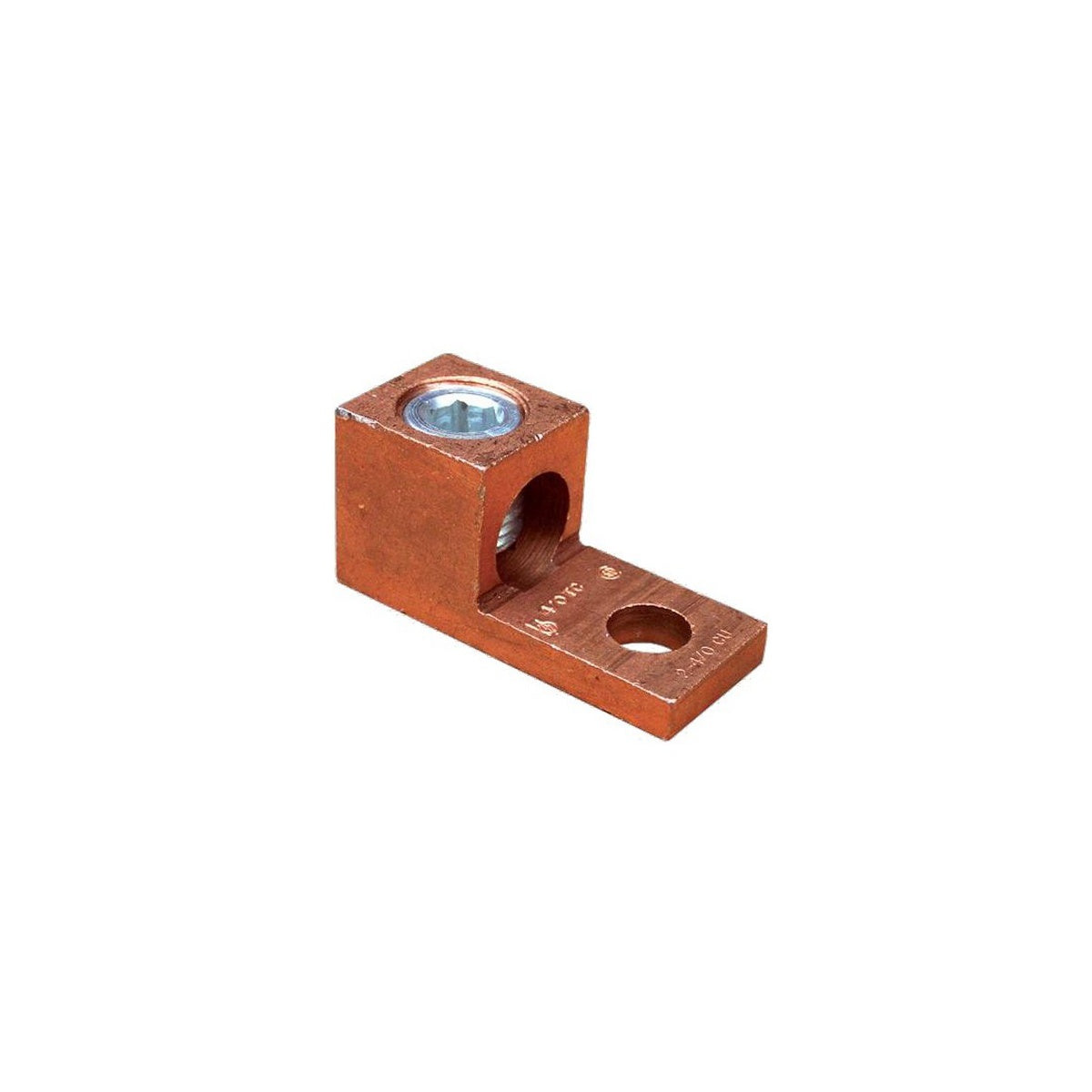

Copper Mechanical Connector Extruded Style One Conductor #6 - #14 – Copper Mechanical Lug

This Copper Mechanical Connector is designed for reliable copper wire connections, suitable for electrical distributors and lighting solutions requiring secure mechanical lugs. It features an extruded copper alloy construction optimized for one conductor, one hole configurations, making it ideal for wire and cable installations within switchgear and related electrical systems.

Specifications

• Material: Extruded Copper Alloy
• Wire Range: #6 - #14
• Screw Type: Hex Head
• Temperature Rating: 90°C
• Voltage Rating: 600 V
• Certifications: UL 486B Dual Rated, CSA, RoHS Compliant
• Product Weight: 0.0380 lbs

Features

• Manufactured from High Strength High Conductivity Copper Alloy
• Rated specifically for Copper Conductors
• One Conductor, One Hole Configuration for secure mechanical connections
