Morris Products
Copper Mechanical Connector Extruded Style One Conductor #2 - #14
SKU: #276623
Part: #90564
UPC: 601986905640
Morris Products
Copper Mechanical Connector Extruded Style One Conductor #2 - #14
SKU: #276623
Part: #90564
UPC: 601986905640
Description

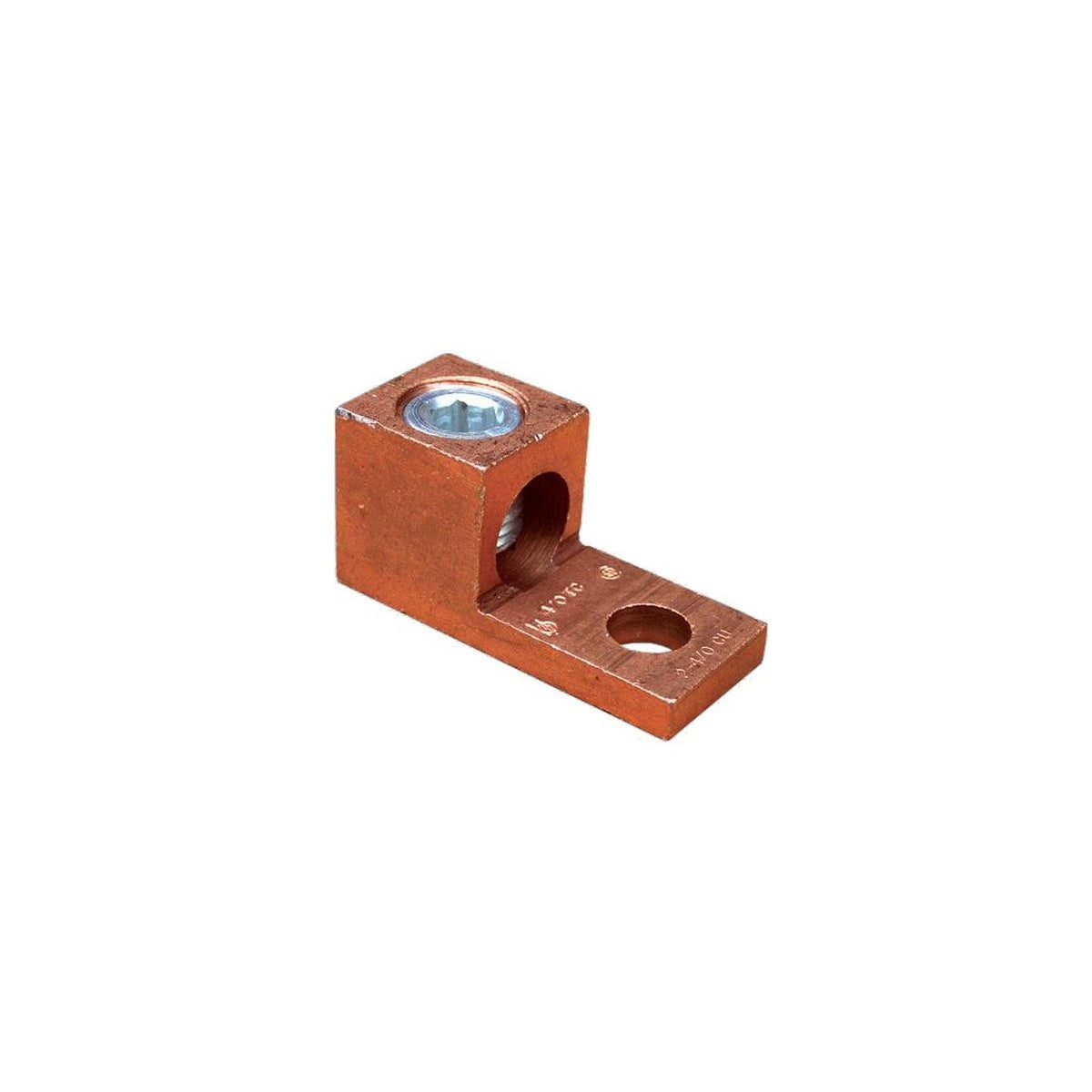

Copper Mechanical Connector Extruded Style One Conductor #2 - #14 – Copper Mechanical Lug
This copper mechanical connector is designed for secure copper wire connections in electrical distribution and wiring applications. It is suitable for use by electrical distributors and switchgear suppliers requiring reliable mechanical lugs for copper conductors ranging from #2 to #14 AWG. The extruded copper alloy construction ensures high conductivity and mechanical strength, making it a dependable component in lighting solutions and wire and cable assemblies.
Specifications
- Material: Extruded Copper Alloy
- Wire Range: #2 - #14 AWG
- Screw Type: Hex Head
- Temperature Rating: 90°C
- Voltage Rating: 600 V
- Certifications: UL 486B Dual Rated, CSA Certified, RoHS Compliant
- Product Weight: 0.0470 lbs
- Manufacturer Part #: 90564
Features
- Manufactured from high strength, high conductivity copper alloy
- Rated specifically for copper conductors
- One conductor, one hole configuration for straightforward installation
