Morris Products

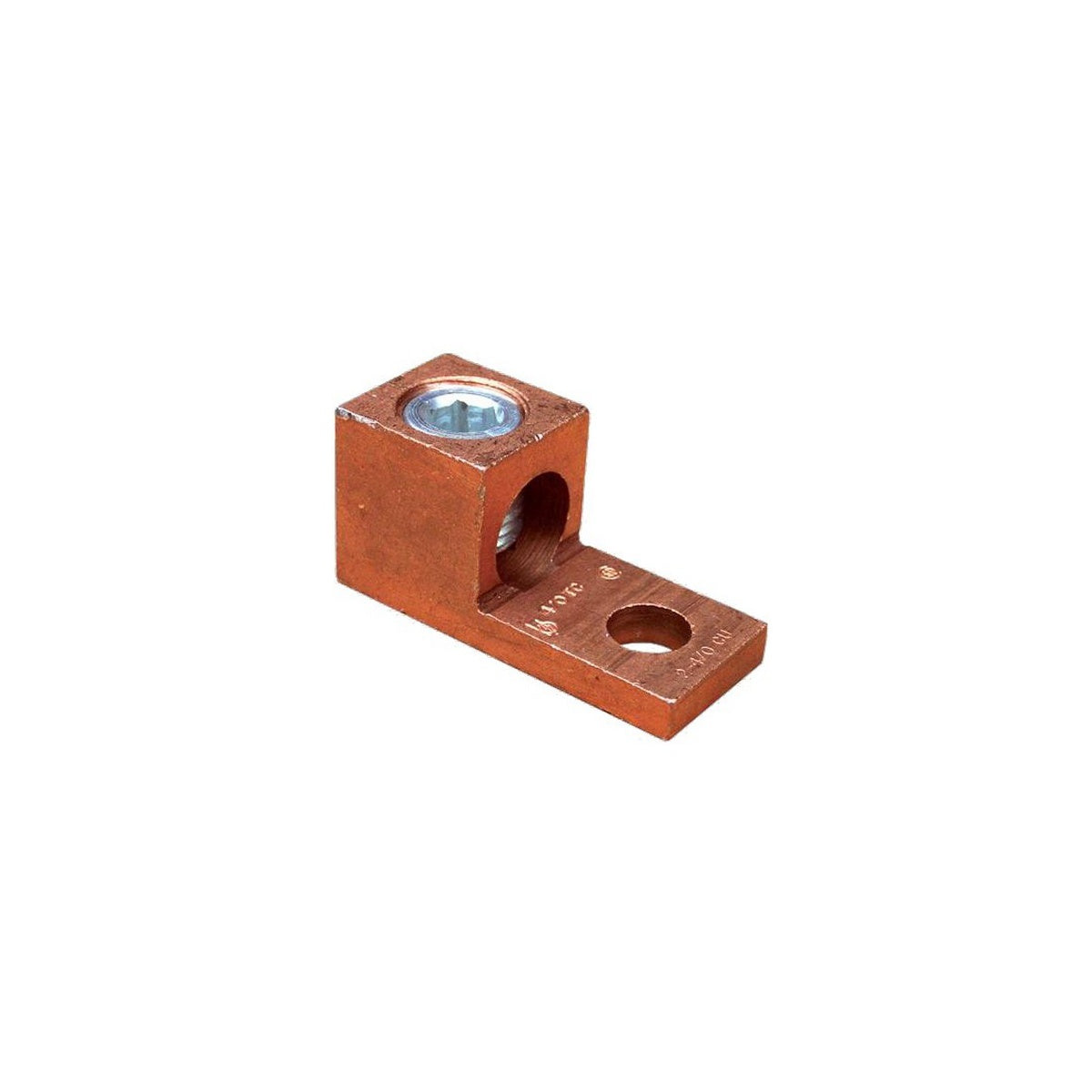

Copper Mechanical Connector Extruded Style One Conductor 1/0-#14
SKU: #276625
Part: #90566
UPC: 601986905664
Morris Products
Copper Mechanical Connector Extruded Style One Conductor 1/0-#14
SKU: #276625
Part: #90566
UPC: 601986905664
Description
Copper Mechanical Connector Extruded Style One Conductor 1/0-#14 – Copper Mechanical Lug
This copper mechanical connector is designed for secure copper wire connections, suitable for electrical distributors and switchgear suppliers requiring reliable wire and cable terminations. It features an extruded copper alloy construction for enhanced conductivity and strength, optimized for one conductor, one hole applications in lighting solutions and electrical installations.
Specifications
- Material: Extruded Copper Alloy
- Wire Range: 1/0 - #14
- Temperature Rating: 90°C
- Voltage Rating: 600 V
- Screw Type: Hex Head
- Product Weight: 0.1030 lbs
- Certifications: UL 486B Dual Rated, CSA, RoHS Compliant
- Dimensions (L x W x H): 1.277" x 0.548" x 0.66"
Features
- Manufactured from high strength, high conductivity copper alloy
- Rated specifically for copper conductors
- One conductor, one hole configuration for straightforward installation
