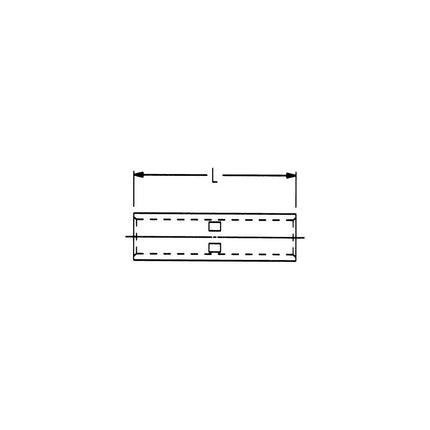

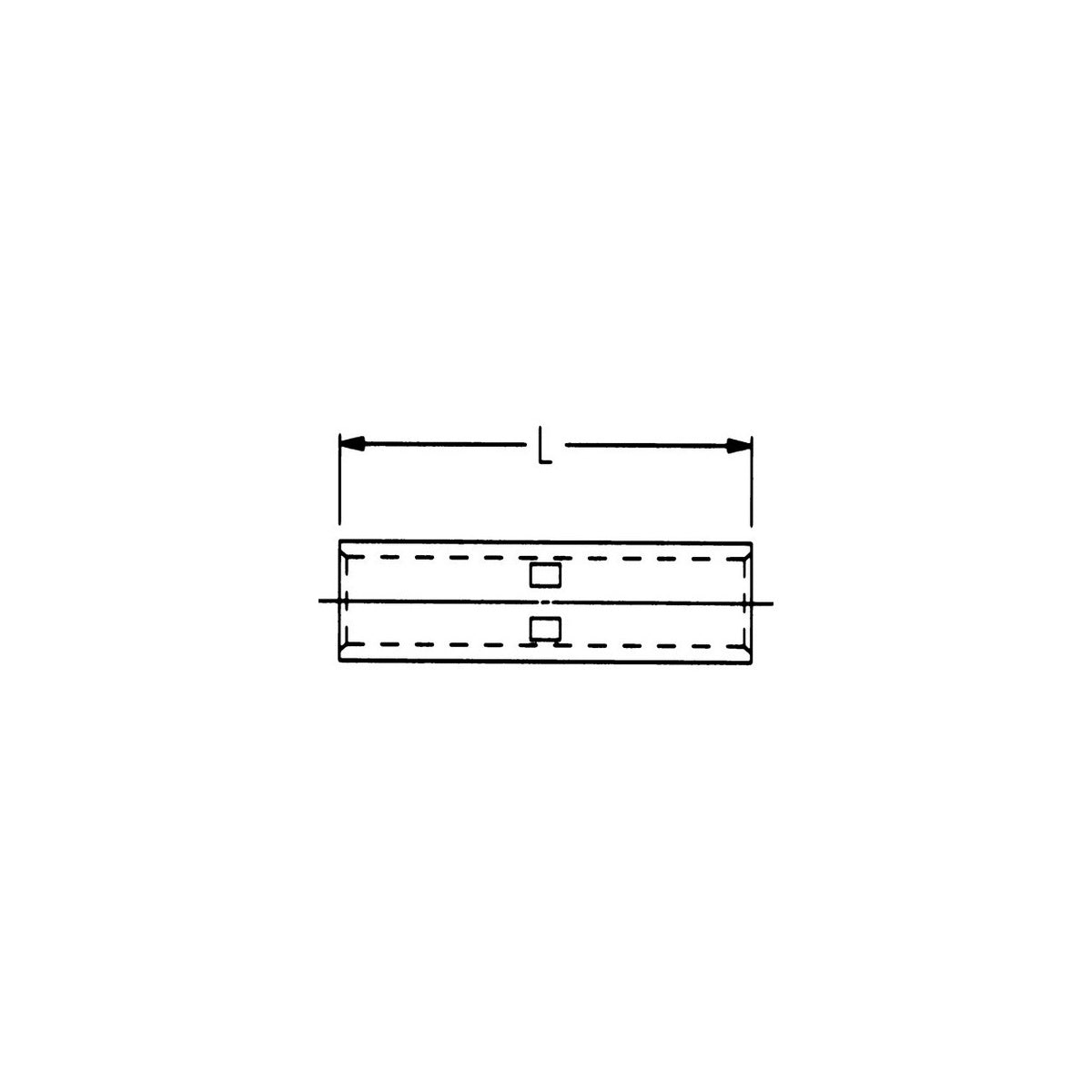

Copper Long Barrel Compression Splices 600 MCM – Electrical Wire Connectors

The Copper Long Barrel Compression Splice 600 MCM is designed for reliable electrical connections in wire and cable applications. Manufactured from high conductivity seamless copper tubing and electro-tin plated for enhanced performance, this splice is suitable for use by electrical distributors and switchgear suppliers needing durable and efficient compression splices for heavy gauge conductors.

Specifications

• Material: High Conductivity Copper
• Inside Diameter: 0.925 inches
• Outside Diameter: 1.188 inches
• Temperature Rating: 90°C
• Voltage Rating: 35 KV
• Wire Size Range: #8 Stranded through 1000 MCM
• Color: Green
• Product Weight: 1.0880 lbs
• Manufacturer Part #: 94538
• Certifications: UL486A, cUL, RoHS Compliant

Features

• Manufactured from high strength, high conductivity seamless copper tubing
• Electro-tin plated for corrosion resistance and improved conductivity
• Color coded and marked with die size and crimp marks for easy identification and installation

Downloads & Links

• Spec Sheet
