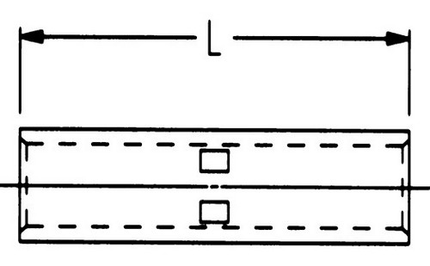

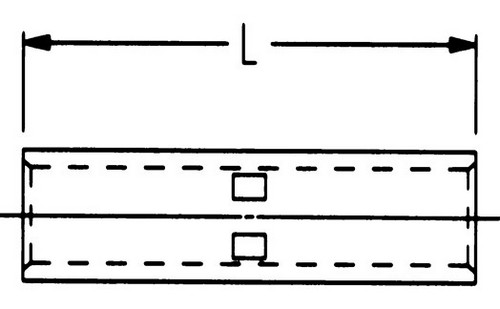

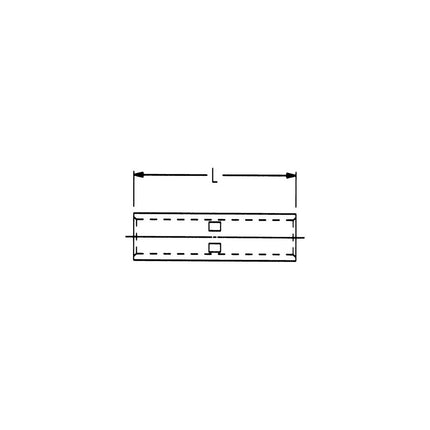

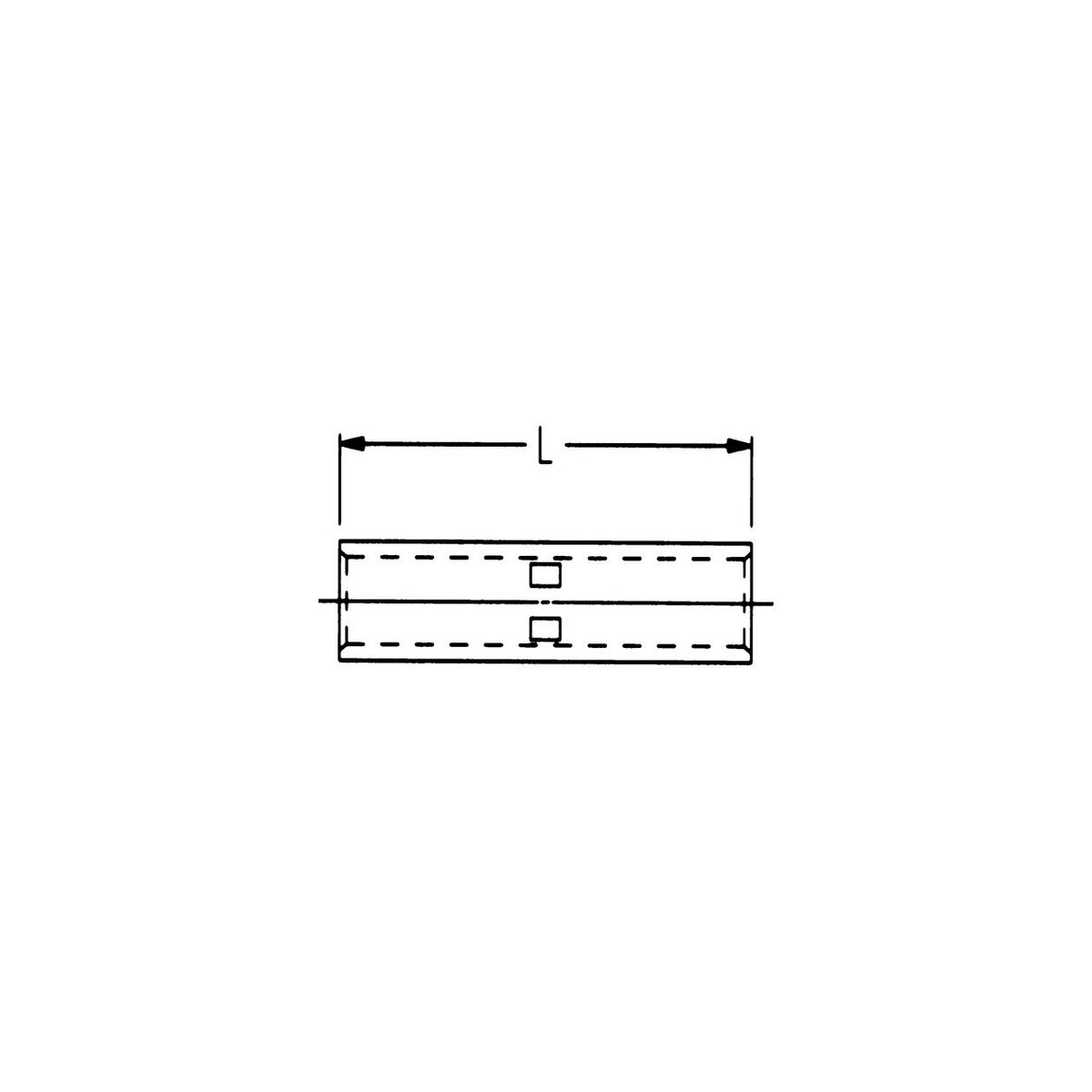

Copper Long Barrel Compression Splices #6 – Electrical Wire Connectors

The Copper Long Barrel Compression Splice #6 is designed for secure and reliable electrical connections in wire and cable applications. Manufactured by Morris Products, this splice is suitable for use by electrical distributors and switchgear suppliers requiring high conductivity and durability in lighting solutions and electrical wiring systems.

Specifications

• Material: High Conductivity Seamless Copper Tubing
• Material Treatment: Electro-Tin Plating
• Wire Size Range: #8 Stranded through 1000 MCM
• Temperature Rating: 90°C
• Voltage Rating: 35 KV
• Inside Diameter: 0.203 inches
• Outside Diameter: 0.297 inches
• Color Coding: Blue
• Product Weight: 0.0380 lbs
• Manufacturer Part #: 94512
• Certifications: UL 486A, cUL, RoHS Compliant

Features

• Manufactured from high strength, high conductivity seamless copper tubing
• Electro-tin plated for corrosion resistance
• Color coded and marked with die size and crimp marks for easy identification and installation
