Copper Long Barrel Compression Splices 4/0 – Electrical Wire Connector

The Copper Long Barrel Compression Splice 4/0 is designed for reliable electrical connections in wire and cable installations. Manufactured by Morris Products, this splice is suitable for use by electrical distributors and switchgear suppliers requiring high conductivity and secure splicing solutions. It is engineered to handle wire sizes from #8 stranded through 1000 MCM, providing robust mechanical and electrical performance in industrial and commercial applications.

Specifications

• Material: High Conductivity Seamless Copper Tubing
• Material Treatment: Electro-Tin Plating
• Wire Size Range: #8 Stranded through 1000 MCM
• Temperature Rating: 90°C
• Voltage Rating: 35 KV
• Color Coding: Purple

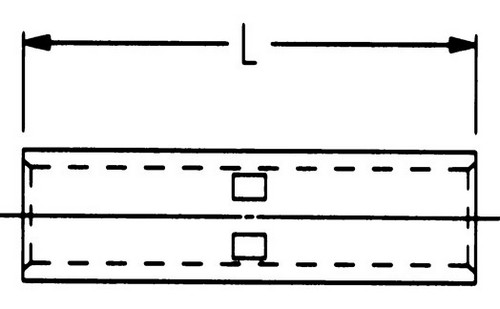

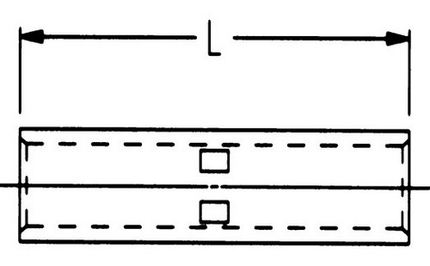

• Inside Diameter: 0.547 inches
• Outside Diameter: 0.688 inches
• Product Weight: 0.2200 lbs
• Manufacturer Part #: 94526
• Certifications: UL 486A, cUL, RoHS Compliant

Features

• Manufactured from high strength, high conductivity seamless copper tubing
• Electro-tin plated for corrosion resistance
• Color coded and marked with die size and crimp marks for easy identification and installation accuracy

Downloads & Links

• Spec Sheet
