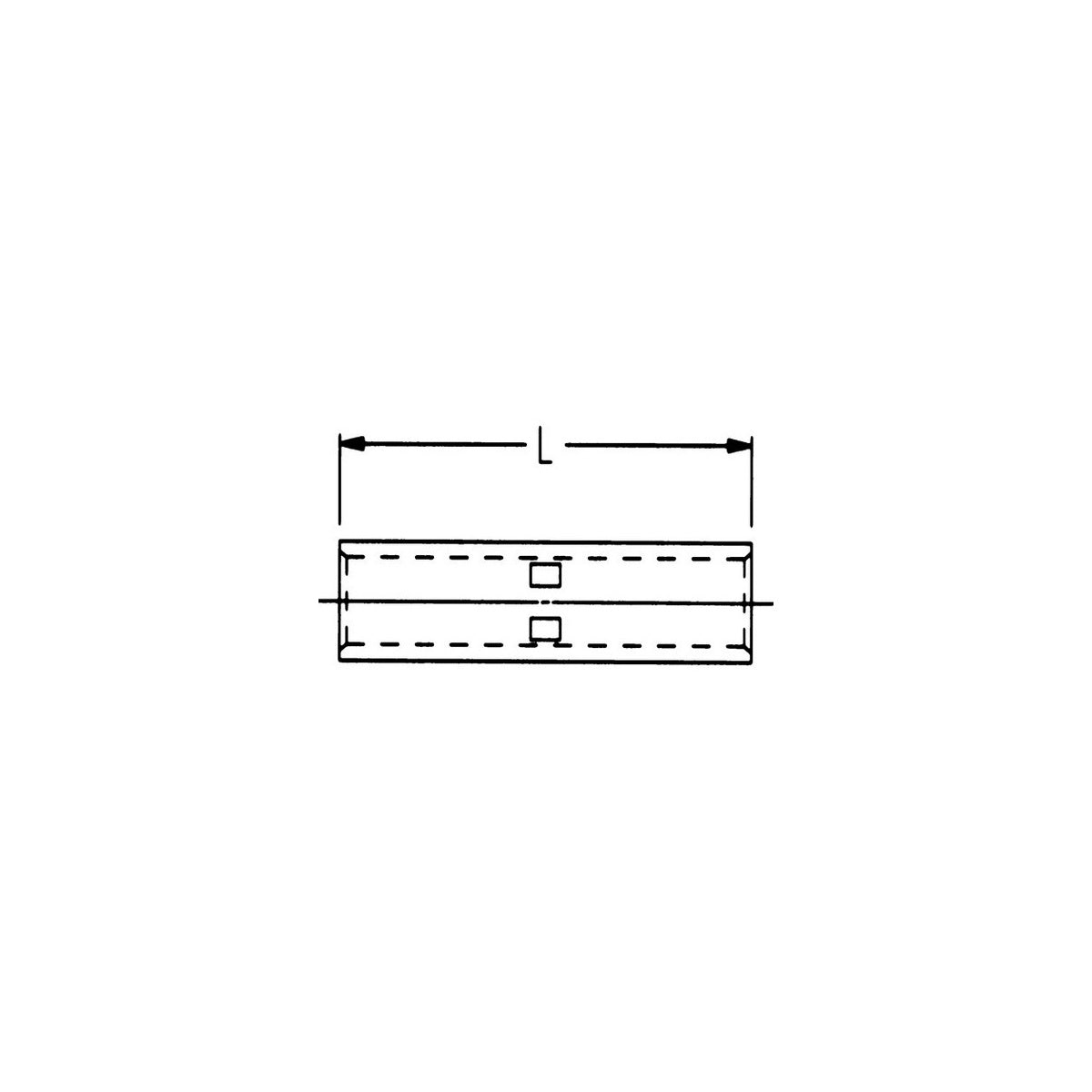

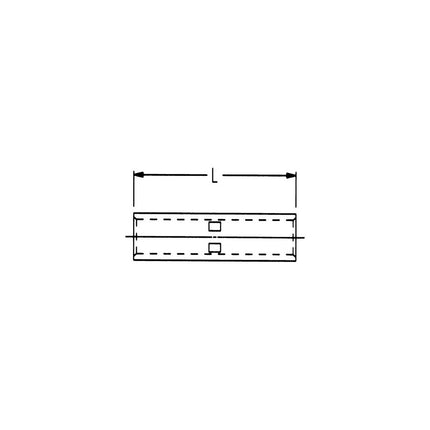

Copper Long Barrel Compression Splices 350 MCM – Electrical Wire Splice Connector

This Copper Long Barrel Compression Splice is designed for secure and reliable electrical connections in wire and cable applications. Manufactured by Morris Products, it is suitable for use by electrical distributors and switchgear suppliers requiring high-quality compression splices for wire sizes ranging from #8 Str to 1000 MCM. The splice is made from high conductivity seamless copper tubing with electro-tin plating, ensuring excellent electrical performance and corrosion resistance. It is color coded red for easy identification and marked with die size and crimp marks to facilitate installation.

Specifications

• Material: High Conductivity Copper
• Wire Size Range: #8 Str through 1000 MCM
• Temperature Rating: 90°C
• Voltage Rating: 35 KV
• Material Treatment: Electro-Tin Plating
• Inside Diameter: 0.700 inches
• Outside Diameter: 0.875 inches
• Product Weight: 0.6750 lbs
• Color Coding: Red
• Manufacturer Part Number: 94532
• UPC: 601986945325

Features

• Manufactured from high strength, high conductivity seamless copper tubing
• Electro-tin plated for enhanced corrosion resistance
• Color coded and marked with die size and crimp marks for precise installation

Downloads & Links

• Spec Sheet
