Copper Long Barrel Compression Splices 3/0 – Electrical Wire Connectors

The Copper Long Barrel Compression Splice 3/0 is a high-conductivity copper connector designed for secure electrical wire splicing. Manufactured by Morris Products, this splice is suitable for use by electrical distributors and switchgear suppliers requiring reliable wire and cable connections in various industrial and commercial applications.

Specifications

• Material: High Conductivity Seamless Copper Tubing
• Material Treatment: Electro-Tin Plating
• Wire Size Range: #8 Stranded through 1000 MCM
• Temperature Rating: 90°C
• Voltage Rating: 35 KV
• Color Coding: Orange
• Inside Diameter: 0.492 inches
• Outside Diameter: 0.622 inches

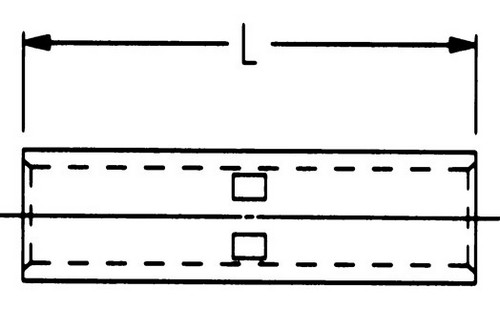

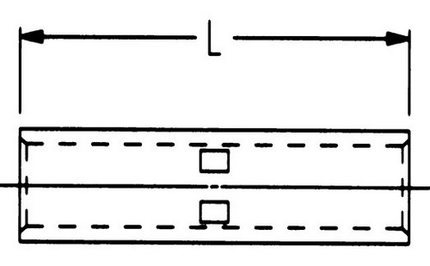

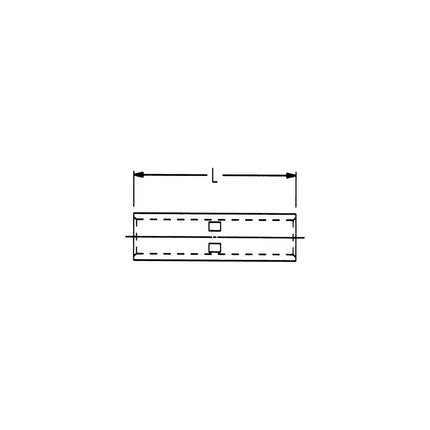

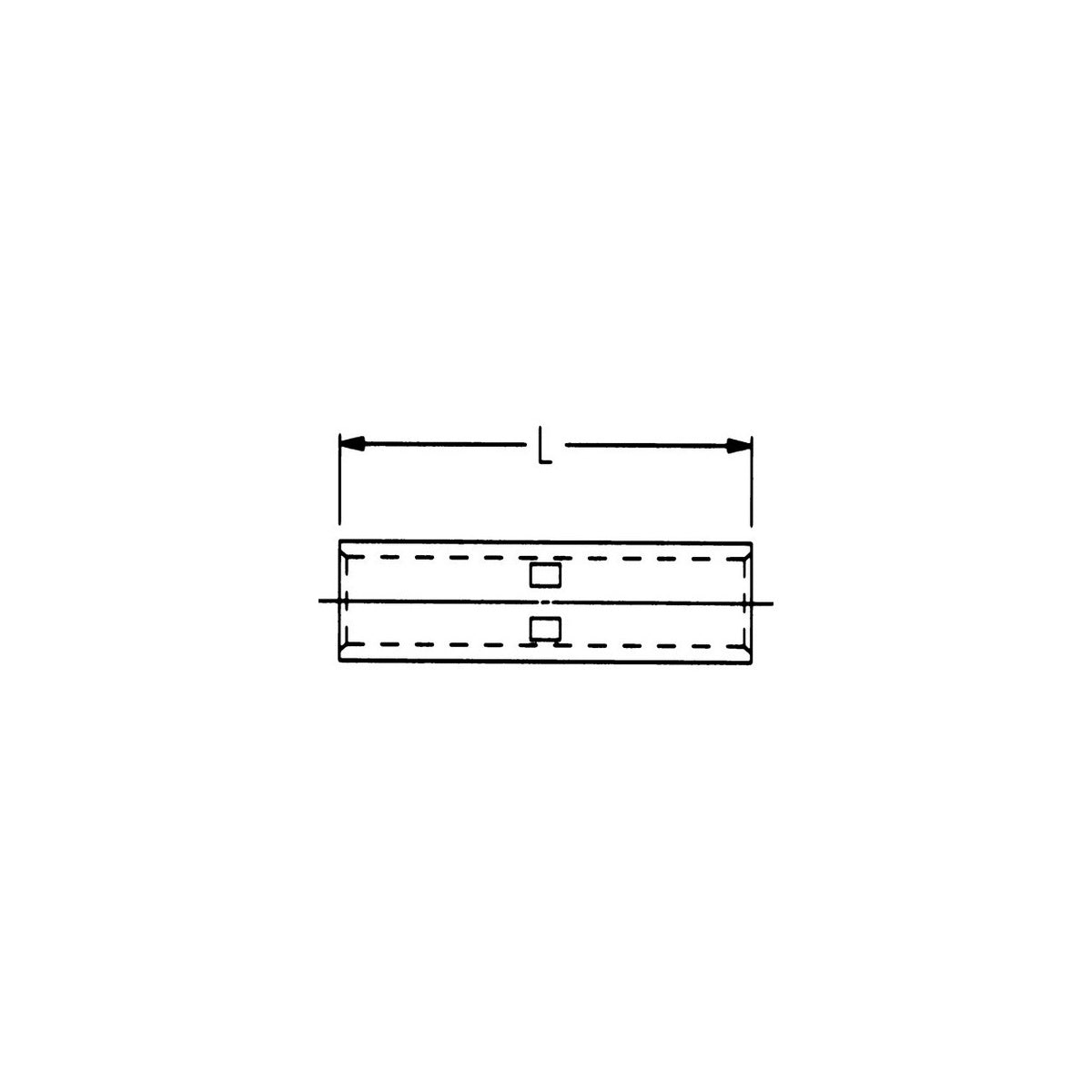

• Length: 3.11 inches
• Certifications: UL 486A, cUL, RoHS Compliant

Features

• Manufactured from high strength, high conductivity seamless copper tubing
• Electro-tin plated for corrosion resistance
• Color coded and marked with die size and crimp marks for easy identification and installation
