Morris Products
Copper Long Barrel 2 Hole Compression Lugs 500 MCM 1/4 Stud 3/4" Spacing
SKU: #279735
Part: #94582
UPC: 601986945820
Morris Products
Copper Long Barrel 2 Hole Compression Lugs 500 MCM 1/4 Stud 3/4" Spacing
SKU: #279735
Part: #94582
UPC: 601986945820
Description

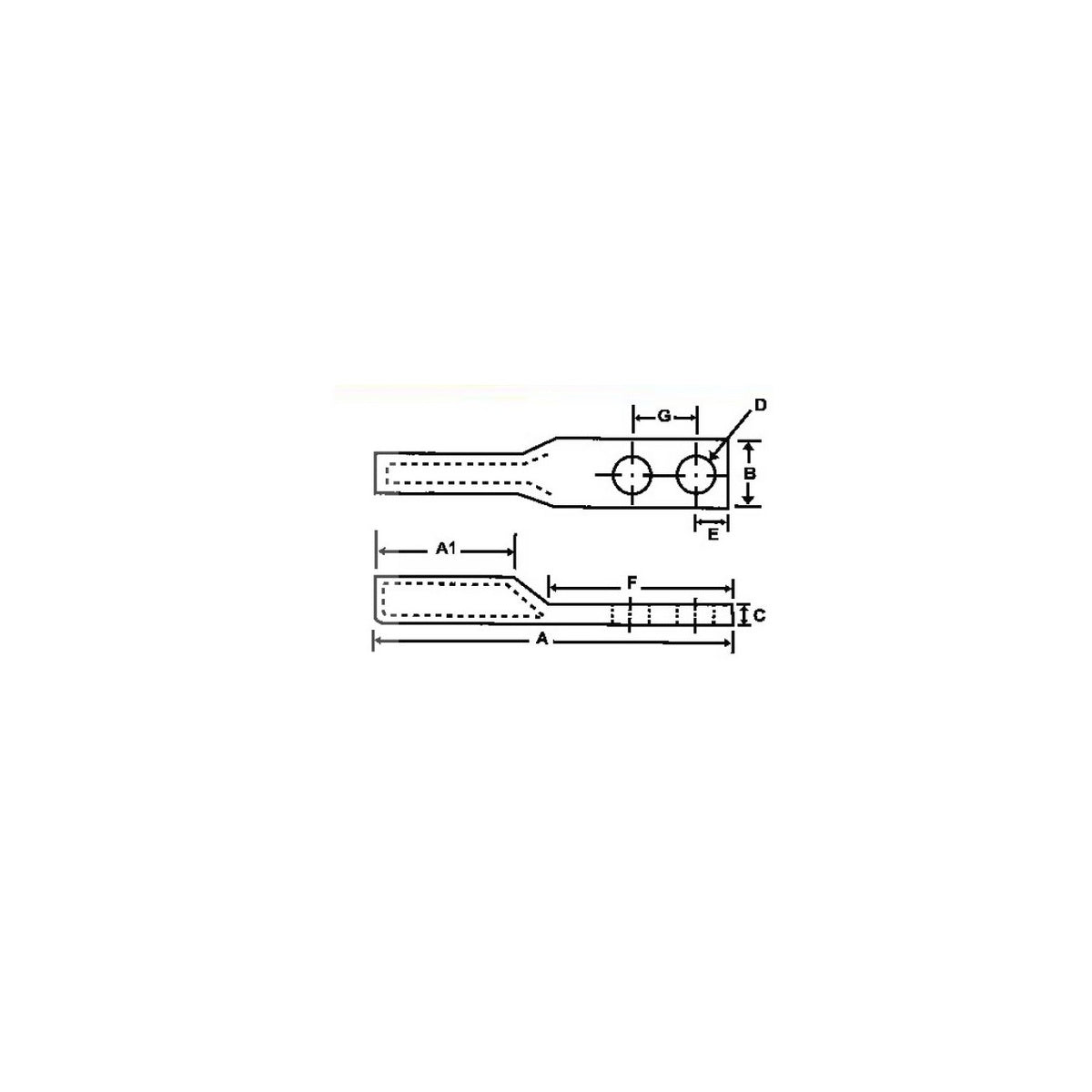

Copper Long Barrel 2 Hole Compression Lugs 500 MCM 1/4 Stud 3/4" Spacing – Electrical Cable Termination
This copper long barrel 2 hole compression lug is designed for fast, reliable electrical cable terminations. Manufactured from high conductivity seamless copper tubing with electro-tin plating, it ensures excellent electrical performance and corrosion resistance. Ideal for electrical distributors and switchgear suppliers requiring durable wire and cable connectors in lighting solutions and industrial applications.
Specifications
- Material: High Conductivity Copper
- Wire Size: #8 Stranded through 750 MCM
- Stud Configuration: 2 Hole
- Stud Size: 1/4"
- Stud Spacing: 3/4"
- Temperature Rating: 90°C
- Voltage Rating: 35 kV
- Flammability Rating: N/A
- Color Coding: Brown
- Product Weight: 0.6080 lbs
- Certification: UL UL486A, cUL, RoHS Compliant
Features
- Manufactured from high strength, high conductivity seamless copper tubing
- Electro-tin plated for enhanced corrosion resistance
- Color coded and marked with die size and crimp marks for easy identification
- Includes peep hole for inspection
